Code 04: (SGT Signal - Distributor)

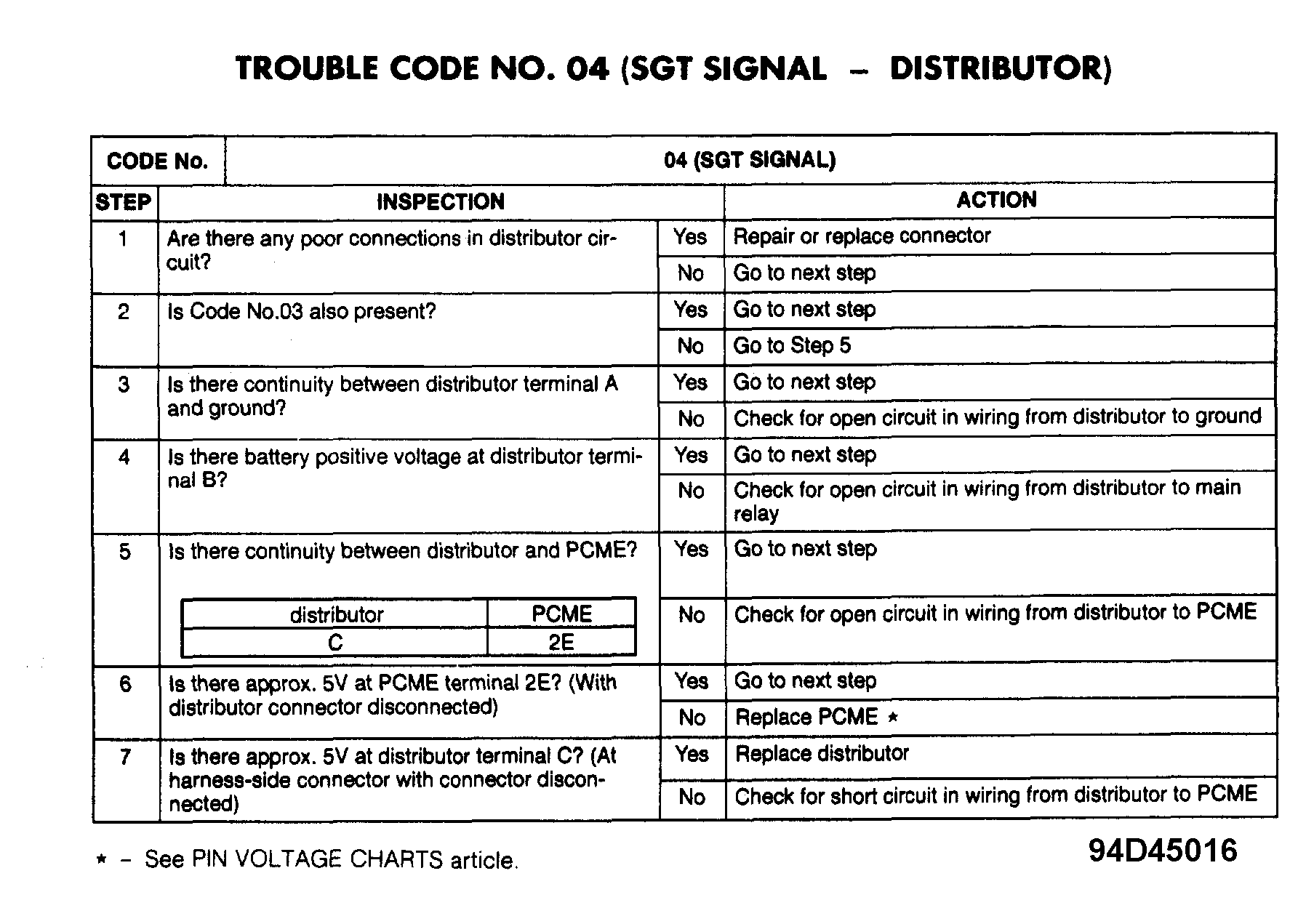

Fig 1: Trouble Code No. 04 Diagnostic Chart (SGT Signal - Distributor - Protege)
G94D45016Courtesy of MAZDA MOTORS CORP.

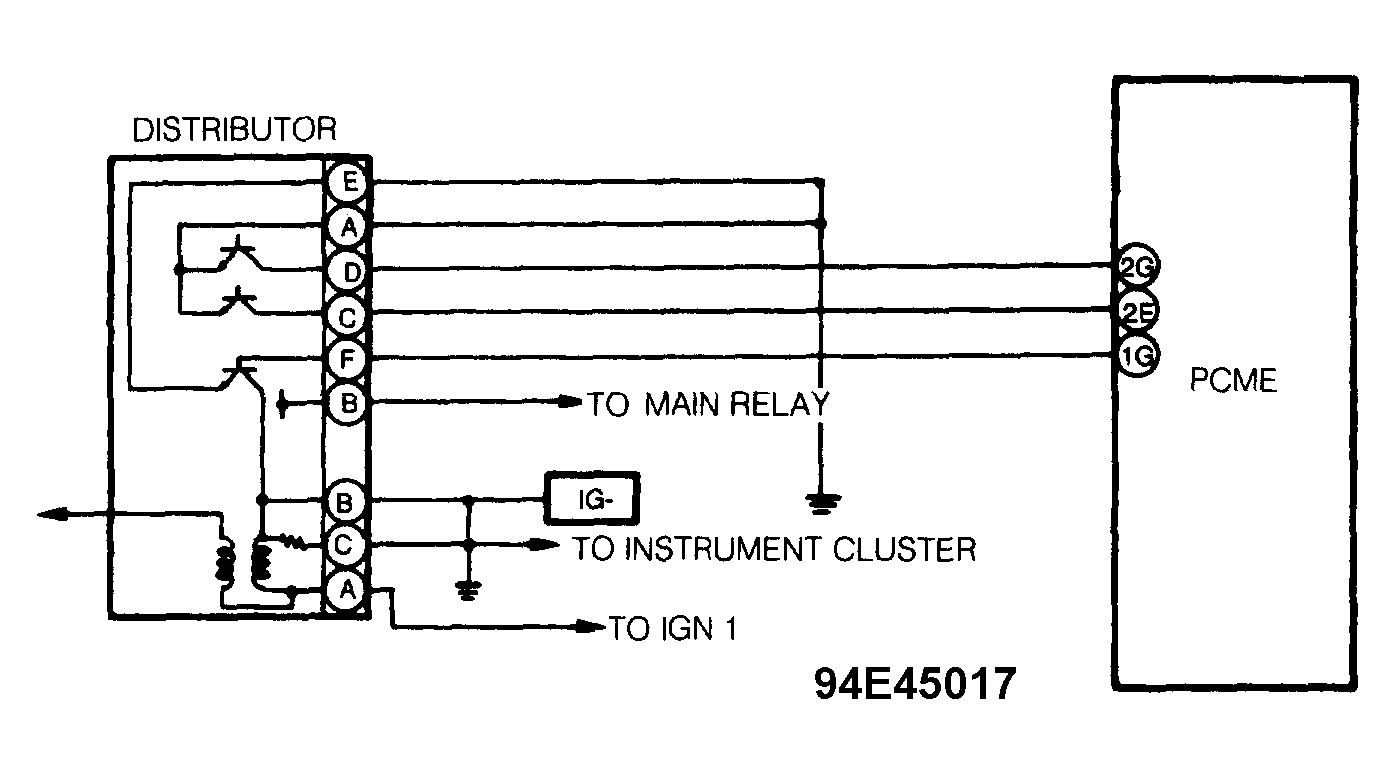

Fig 2: Trouble Code No. 04 Circuit Diagram
G94E45017Courtesy of MAZDA MOTORS CORP.
