| A/C Compressor Bracket Bolt |
27-38 (37-52) |
| Axle Shaft Bracket-To-Cylinder Block Bolt |
31-46 (42-62) |
| Baffle Plate Bolt |
14-19 (19-26) |
| Camshaft Sprocket Bolt |
90-103 (122-140) |
| Clutch Release Cylinder Bolt (M/T) |
12-17 (16-23) |
| Connecting Rod Bolt |
| Step 1 |
16-19 (22-26) |
| Step 2 |
Additional 83-97 Degrees |
| Coolant Outlet Bolt |
14-19 (19-26) |
| Crankshaft Pulley Bolt |
116-123 (157-166) |

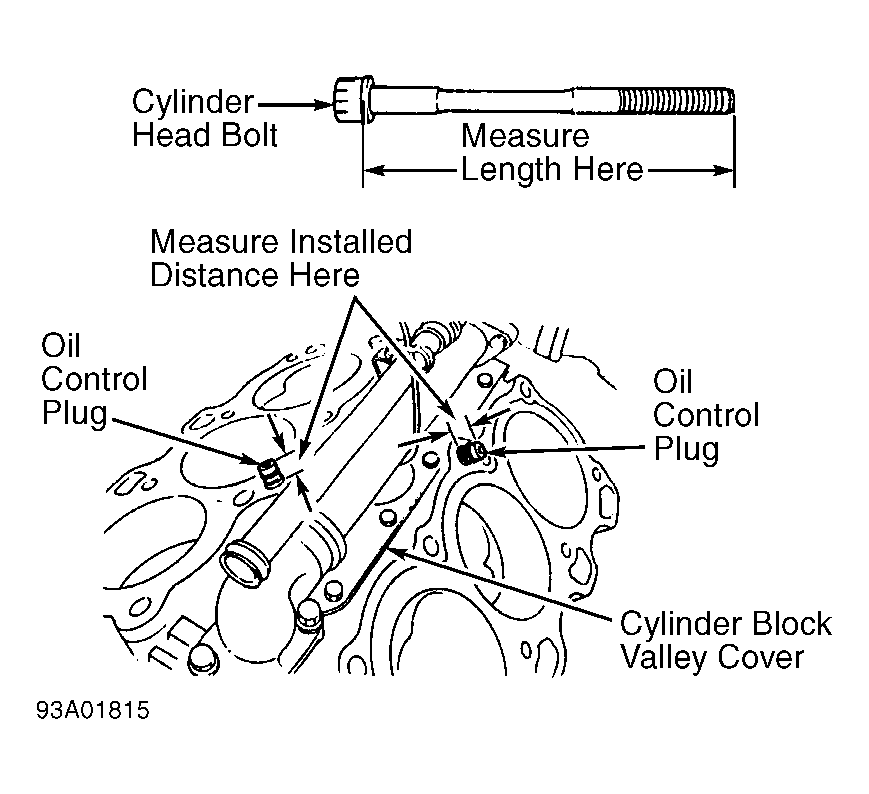

| Cylinder Head Bolt |
| Step 1 |
17-19 (23-26) |
| Step 2 |
Additional 85-95 Degrees |
| Engine-To-Transaxle Case Bolt |
50-73 (68-99) |
| Engine Mount Bracket Above Water Pump-To-Cylinder Block Bolt |
32-45 (43-61) |
| Engine Mount Crossmember Retaining Bolt/Nut |
50-68 (68-93) |
| Engine Mount-To-Engine Mount Crossmember Nut |
55-77 (75-104) |
| Engine Mount-To-Transaxle Case Nut |
27-38 (37-52) |
| Exhaust Manifold Bolt/Nut |
14-19 (19-26) |
| Flywheel/Drive Plate Bolt |
45-50 (61-68) |
| Friction Gear Nut |
51-58 (69-79) |
| Front Exhaust Pipe-To-Exhaust Manifold Nut |
28-38 (38-52) |
| Front Suspension Crossmember Bolt |
69-93 (94-126) |
| Fuel Rail Bolt |
14-19 (19-26) |
| Intake Manifold Bolt/Nut |
14-19 (19-26) |
| Knock Sensor |
14-25 (19-34) |
| Lower Control Arm Ball Joint To-Steering Knuckle Through-Bolt |
32-43 (43-58) |

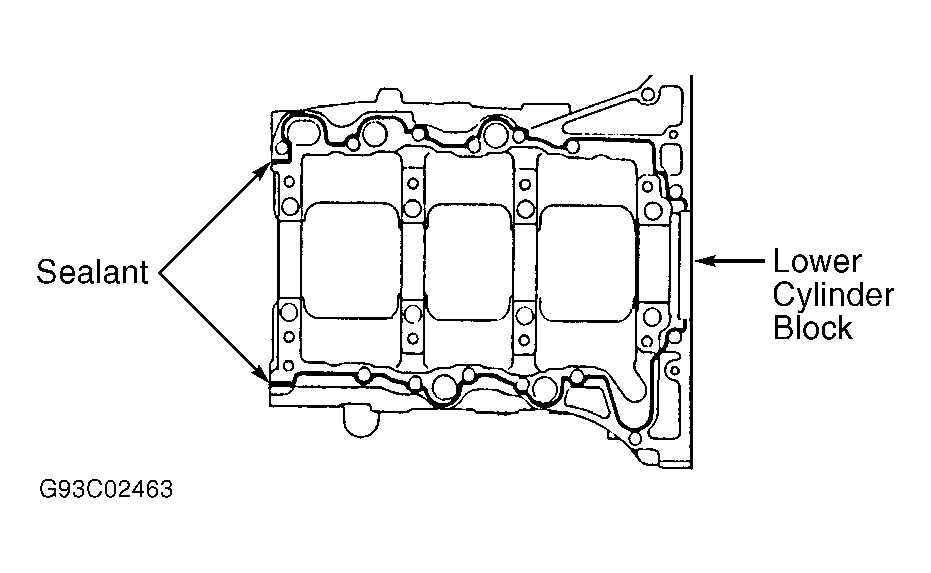

| Lower Cylinder Block Bolt |
| Bolt "A" |
| Step 1 |
17-19 (23-26) |
| Step 2 |
Additional 75-85 Degrees |
| Bolt "B" |
| Step 1 |
17-19 (23-26) |
| Step 2 |
Additional 65-75 Degrees |
| Bolt "C" |
| Step 1 |
13-15 (18-20) |
| Step 2 |
Additional 55-65 Degrees |
| Bolt "D" |
14-18 (19-25) |
| No. 1 Idler Pulley Bolt |
28-38 (38-52) |
| No. 2 Idler Pulley Bolt |
28-38 (38-52) |
| Oil Cooler-To-Oil Filter Adapter Nut |
19-25 (26-34) |
| Oil Pan Bolt |
| Long Bolt |
14-19 (19-26) |
| Short Bolt |
|
| Oil Pump Bolt |
14-19 (19-26) |
| Power Steering Pump Bracket Bolt |
|
| Power Steering Pump Pulley Nut |
49-69 (66-93) |
| Relief Valve Plug |
42-51 (57-69) |
| Right (Timing Belt Side) Engine Mount |
| Nut |
55-75 (74-102) |
| Through-Bolt |
63-86 (86-116) |
| Shift Rod-To-Transaxle Bolt (M/T) |
12-17 (16-23) |
| Spark Plug |
11-17 (15-23) |
| Stabilizer Bar Link Nut |
32-45 (43-61) |
| Stabilizer Rod-To-Transaxle Bolt (M/T) |
23-34 (31-46) |
| Starter-To-Transaxle Case Bolt |
27-38 (37-52) |
| Tensioner Pulley Bolt |
28-32 (38-44) |
| Throttle Body Bolt/Nut |
14-19 (19-26) |
| Tie Rod End Nut |
31-42 (42-57) |
| Timing Belt Tensioner Bolt |
14-19 (19-26) |
| Transaxle Mount & Bracket Bolt/Nut |
50-68 (67-92) |
| Water Pump Bolt |
14-19 (19-26) |
| Wheel Lug Nut |
65-87 (88-118) |
| INCH Lbs. (N.m) |
| Air Pipe-To-Intake Manifold Bolt |
69-95 (8-11) |
| Camshaft Bearing Cap Bolt |
100-126 (11-14) |
| Crank Angle Sensor Bracket Bolt |
69-95 (8-11) |
| Cylinder Block Valley Cover Bolt |
69-95 (8-11) |
| Fuel Injector Retainer Bolt |
22-31 (2-4) |
| Oil Jet |
26-43 (3-5) |
| Oil Pump Body Cover Bolt |
52-78 (6-9) |
| Pick-Up Tube Bolt |
69-95 (8-11) |
| Pressure Regulator Bolt |
61-87 (7-10) |
| Seal Plate Bolt |
69-95 (8-11) |
| Timing Belt Cover Bolt |
69-95 (8-11) |
| Valve Cover Bolt |
43-78 (5-9) |
| Water Pump Pulley Bolt |
69-95 (8-11) |
