Steering Column: Reassembly

To reassemble, reverse disassembly procedure. Grease steering shaft, bushings and bearings. Use NEW shear screws.

STEERING SHAFT DIMENSIONS ⁽¹⁾

Application

Length - In. (mm)

MX-6 & 626

22.35-22.42 (567.6-569.6)

⁽¹⁾	For measuring points, see Fig 1 .

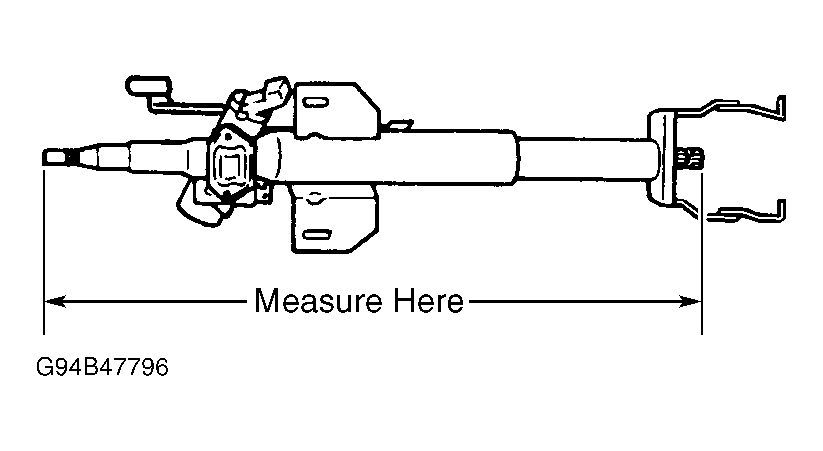

Fig 1: Measuring Steering Shaft Dimensions

Courtesy of MAZDA MOTORS CORP.
