Code 8: (Airflow Sensor)

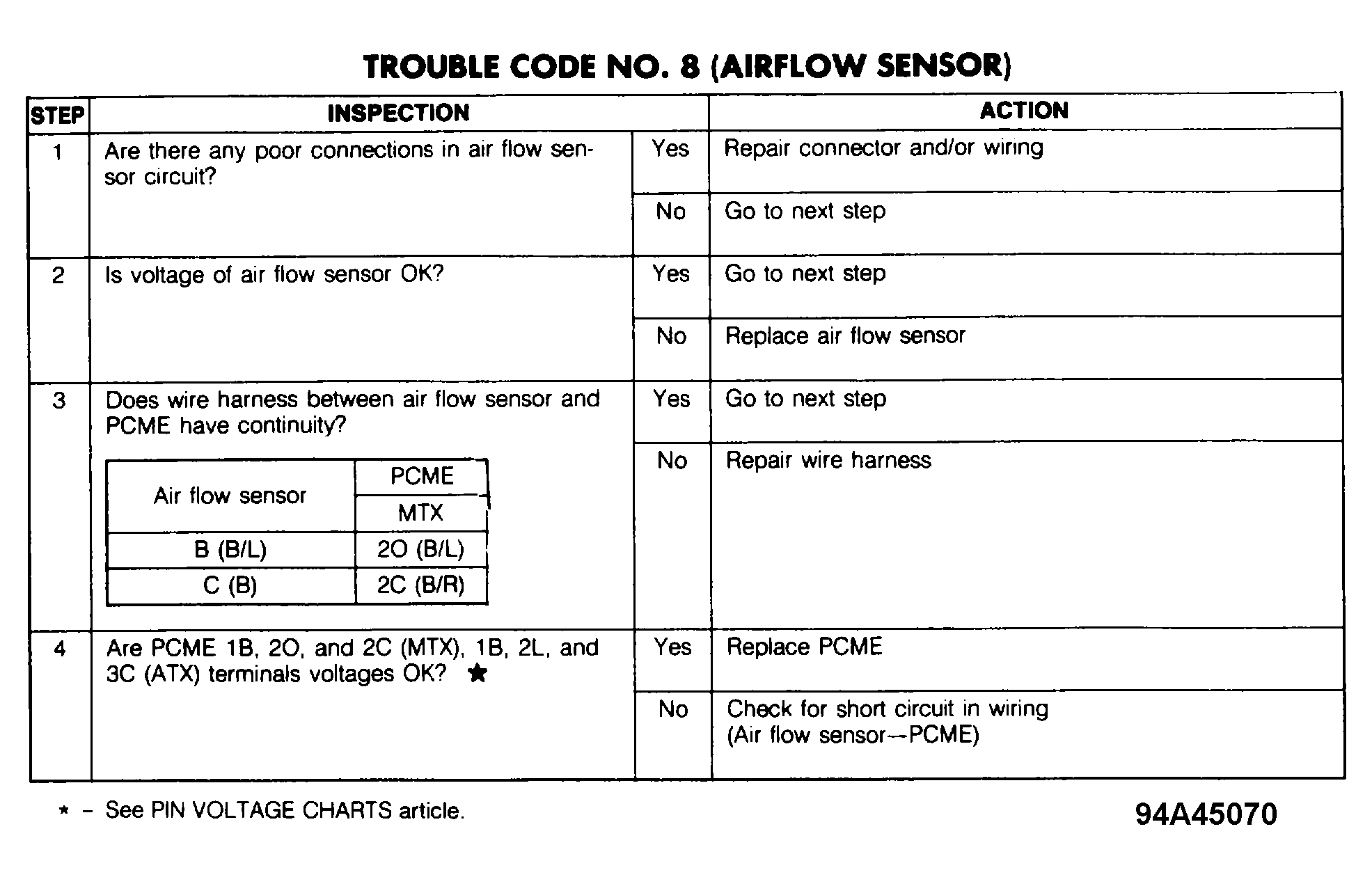

Fig 1: Trouble Code No. 8 Diagnostic Chart (Airflow Sensor)

G94A45070

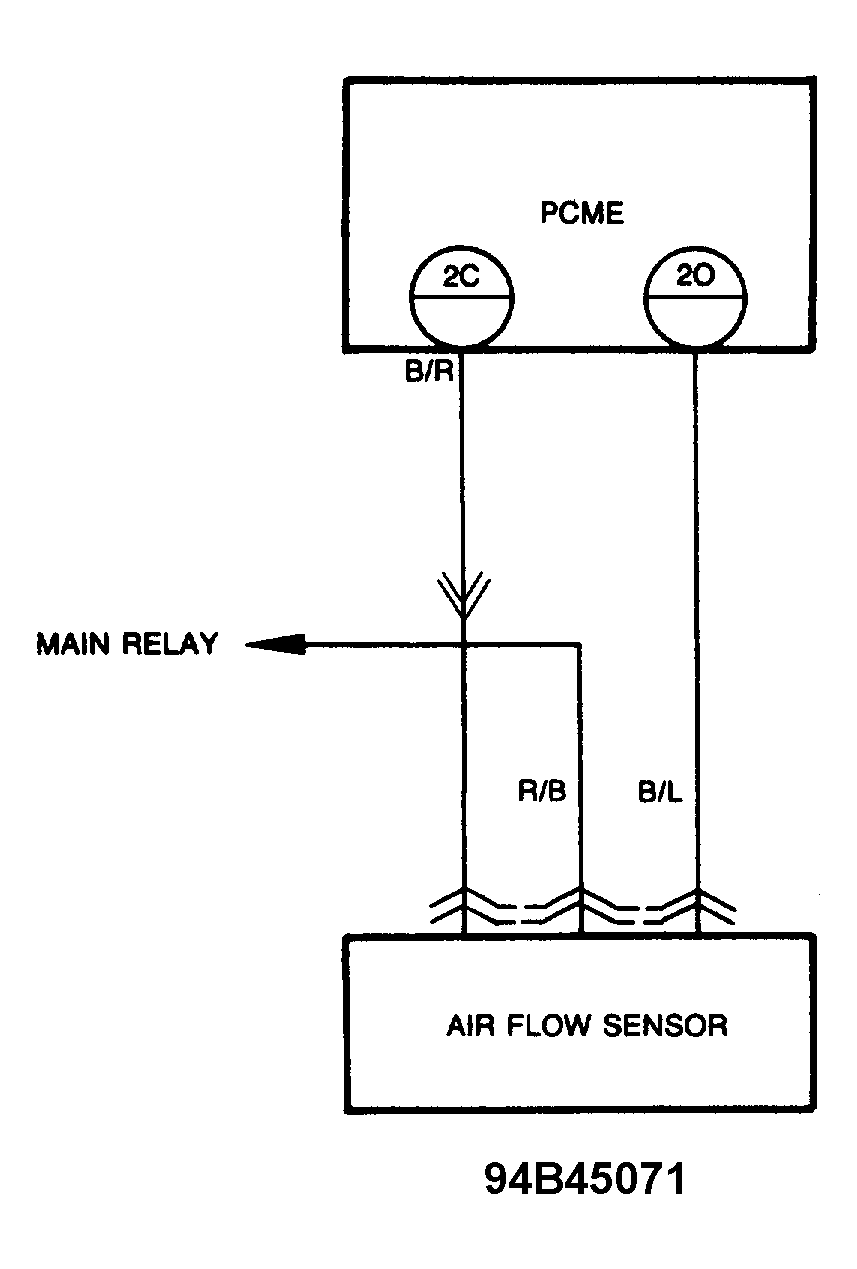

Fig 2: Trouble Code No. 8 Schematic (Airflow Sensor)

G94B45071
