Code 34: (Idle Air Control Valve)

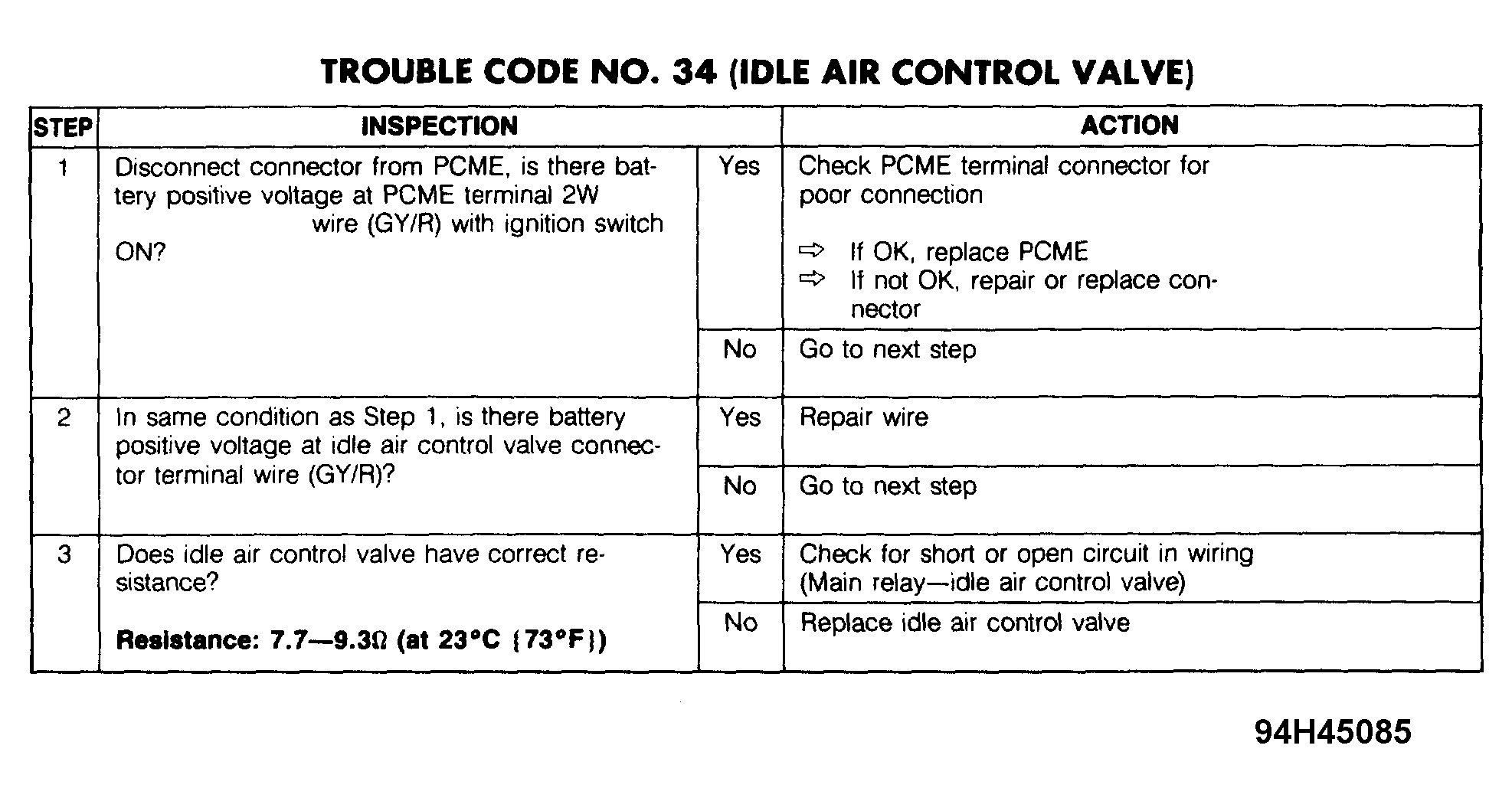

Fig 1: Trouble Code No. 34 Diagnostic Chart (Idle Air Control Valve)

G94H45085

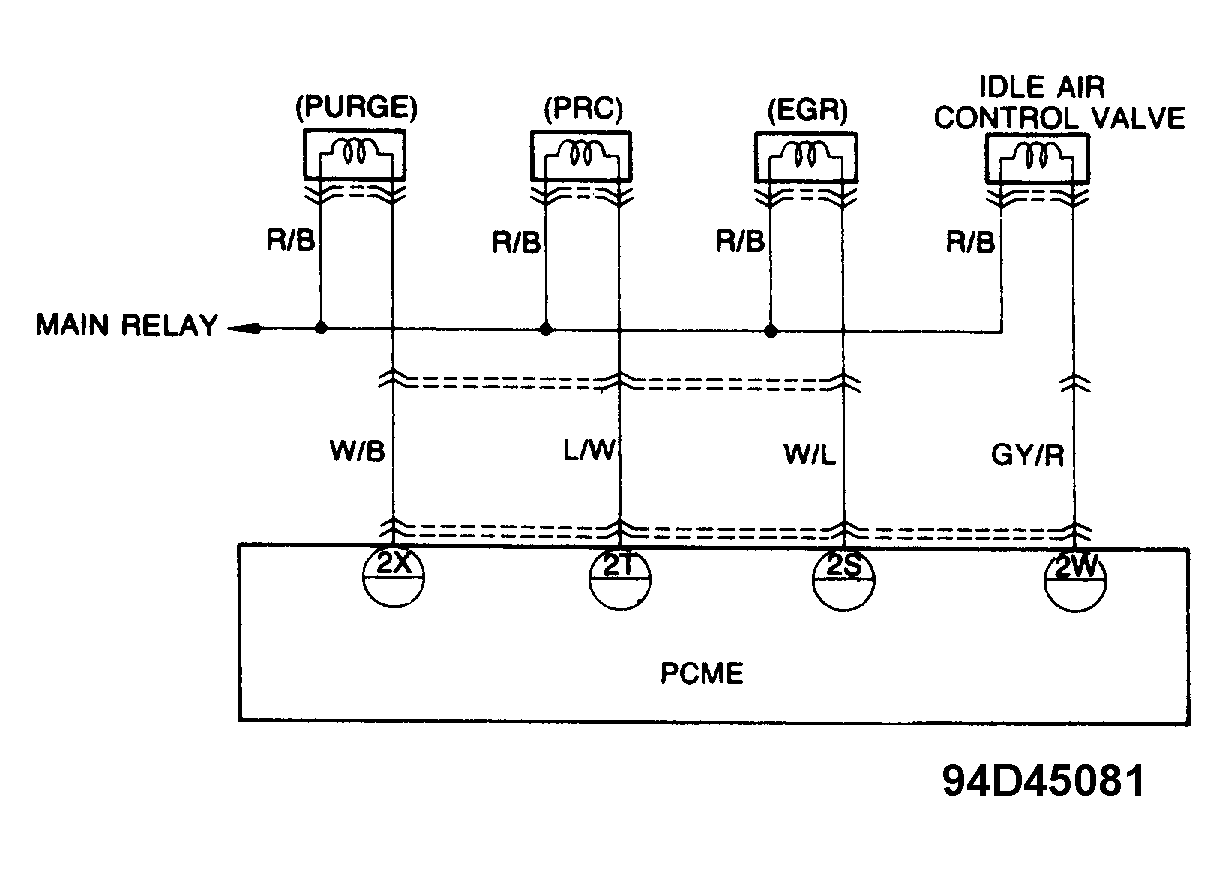

Fig 2: Trouble Code No. 34 Schematic (Idle Air Control Valve)

G94D45081
