Code 25: (Sol Valve - Pressure Regulator Control)

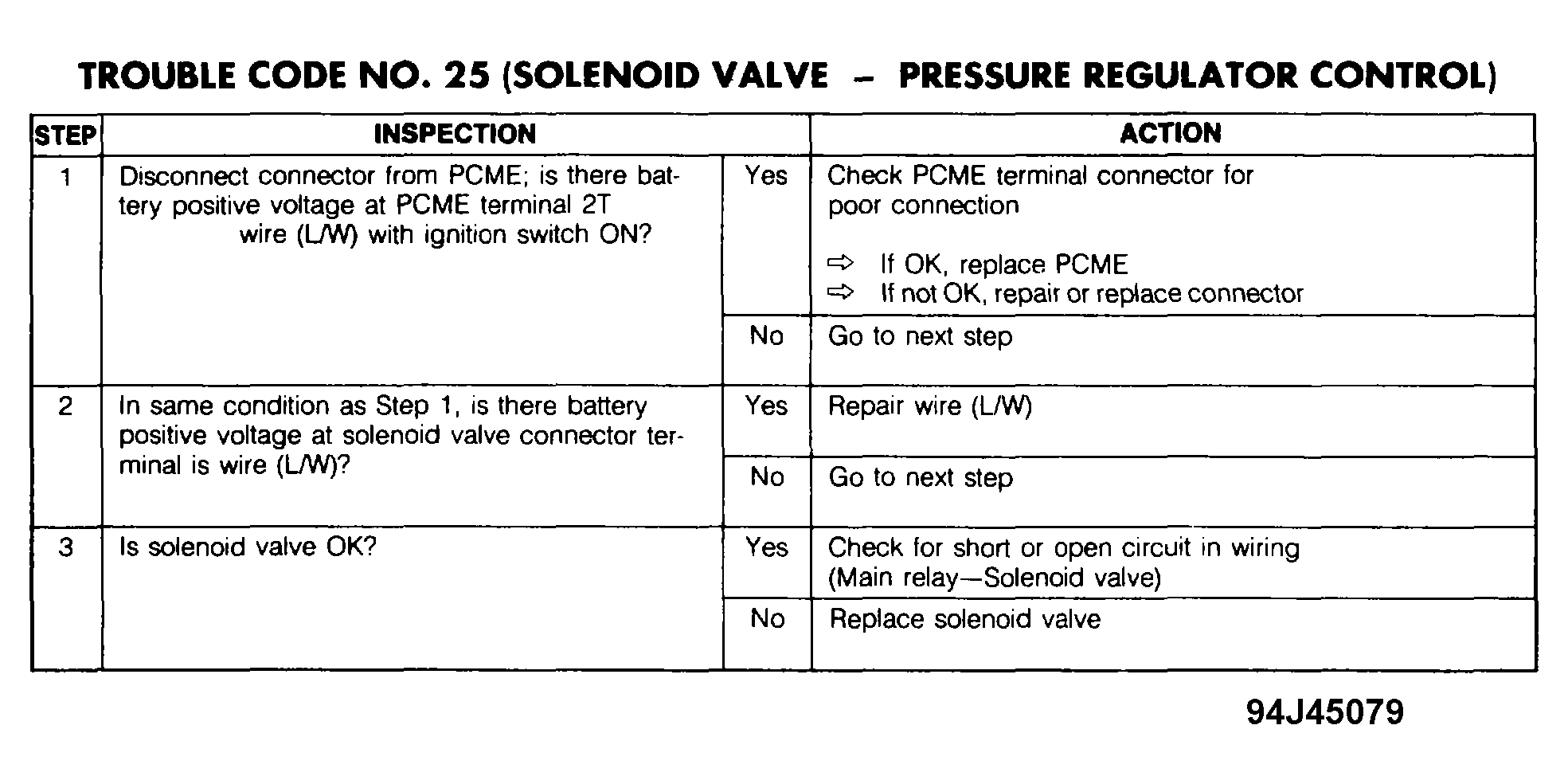

Fig 1: Trouble Code No. 25 Diagnostic Chart (Solenoid Valve - Pressure Regulator Control)

G94J45079
