Code 2: (Crankshaft Position Sensor - Ne Signal)

Fig 1: Trouble Code No. 2 Diagnostic Chart (Crankshaft Position Sensor - NE Signal)

G94E45066

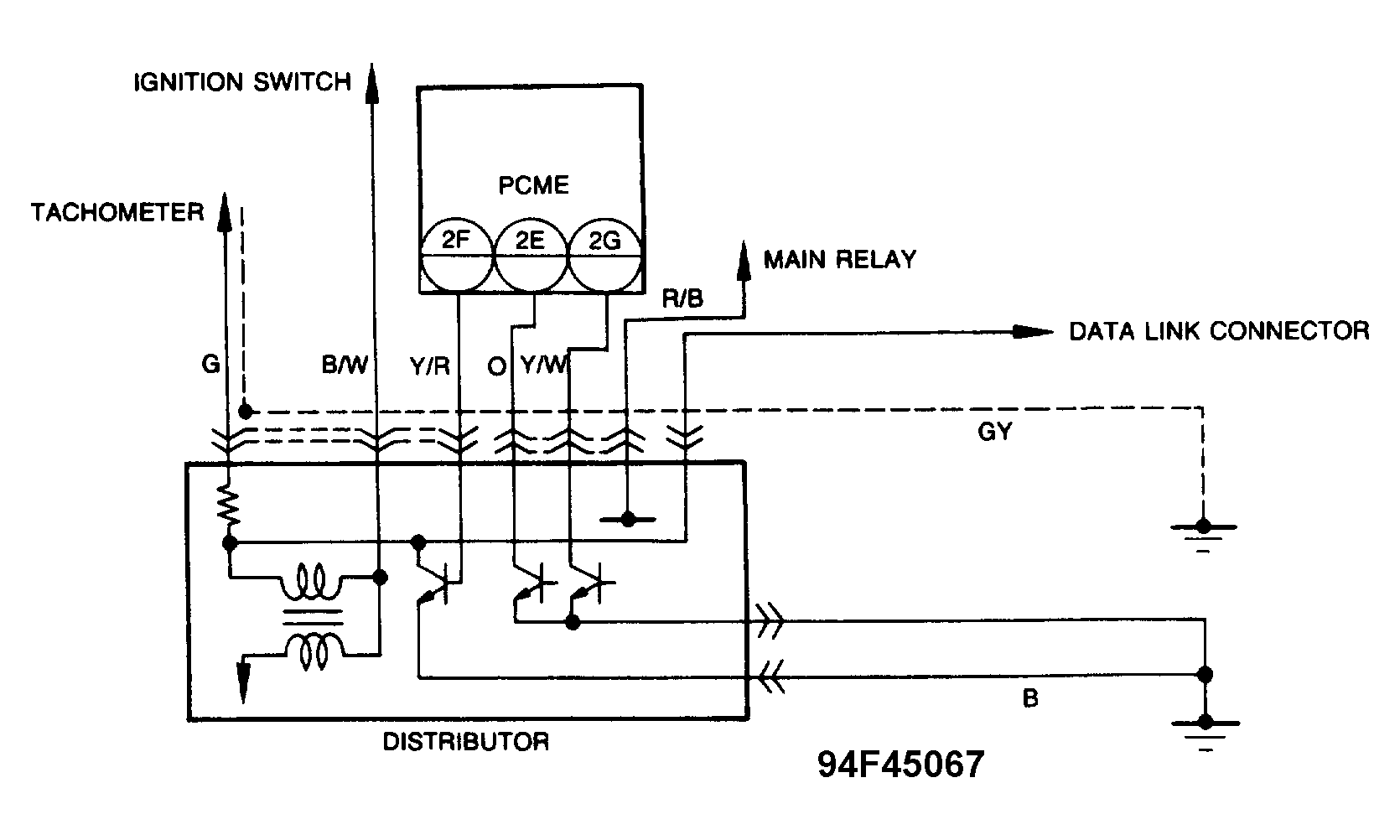

Fig 2: Trouble Code No. 2 Schematic

G94F45067

Courtesy of MAZDA MOTORS CORP.
