Removal & Installation: Engine: Installation

To install, reverse removal procedure. Tighten nuts and bolts to specification. See TORQUE SPECIFICATIONS. Use NEW cotter pin on tie rod ends. Prime fuel system before attempting to start engine. See FUEL PRESSURE RELEASE. Bleed cooling system. See COOLING SYSTEM BLEEDING.

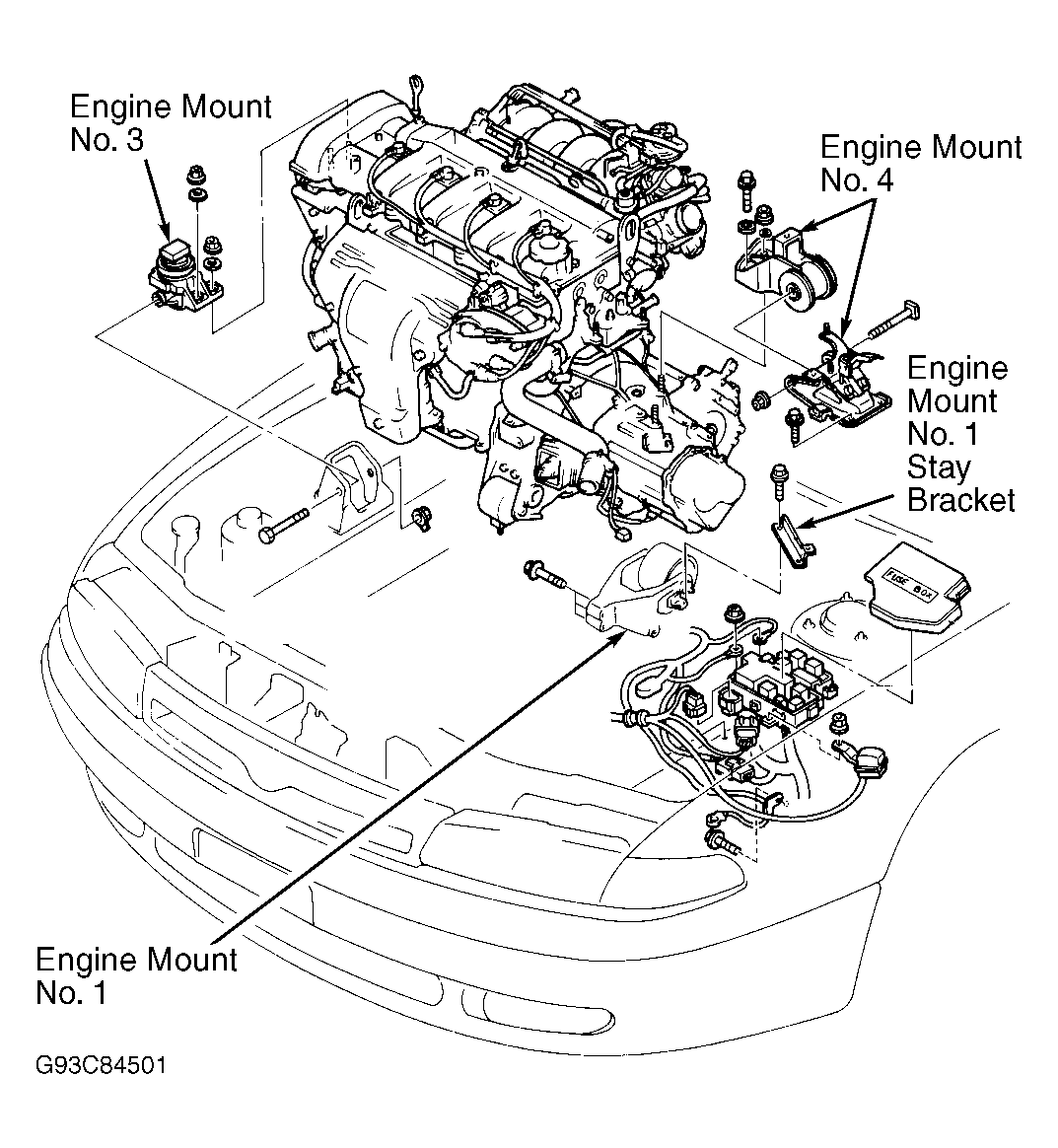

Fig 1: Exploded View Of Engine Mounts
G93C84501Courtesy of MAZDA MOTORS CORP.
