Code 16: (EGR Function Sensor)

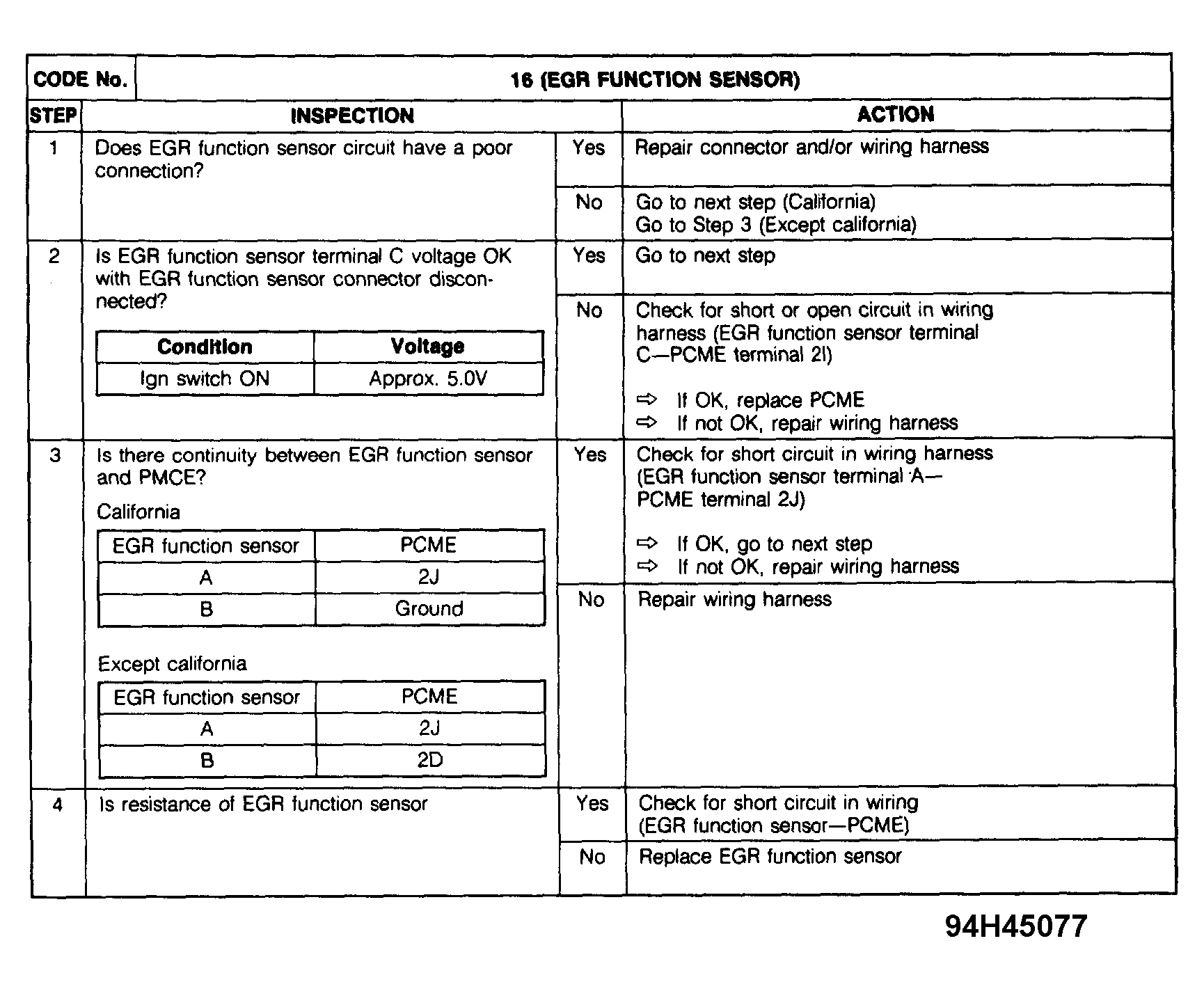

Fig 1: Trouble Code No. 16 Diagnostic Chart (EGR Function Sensor)

G94H45077

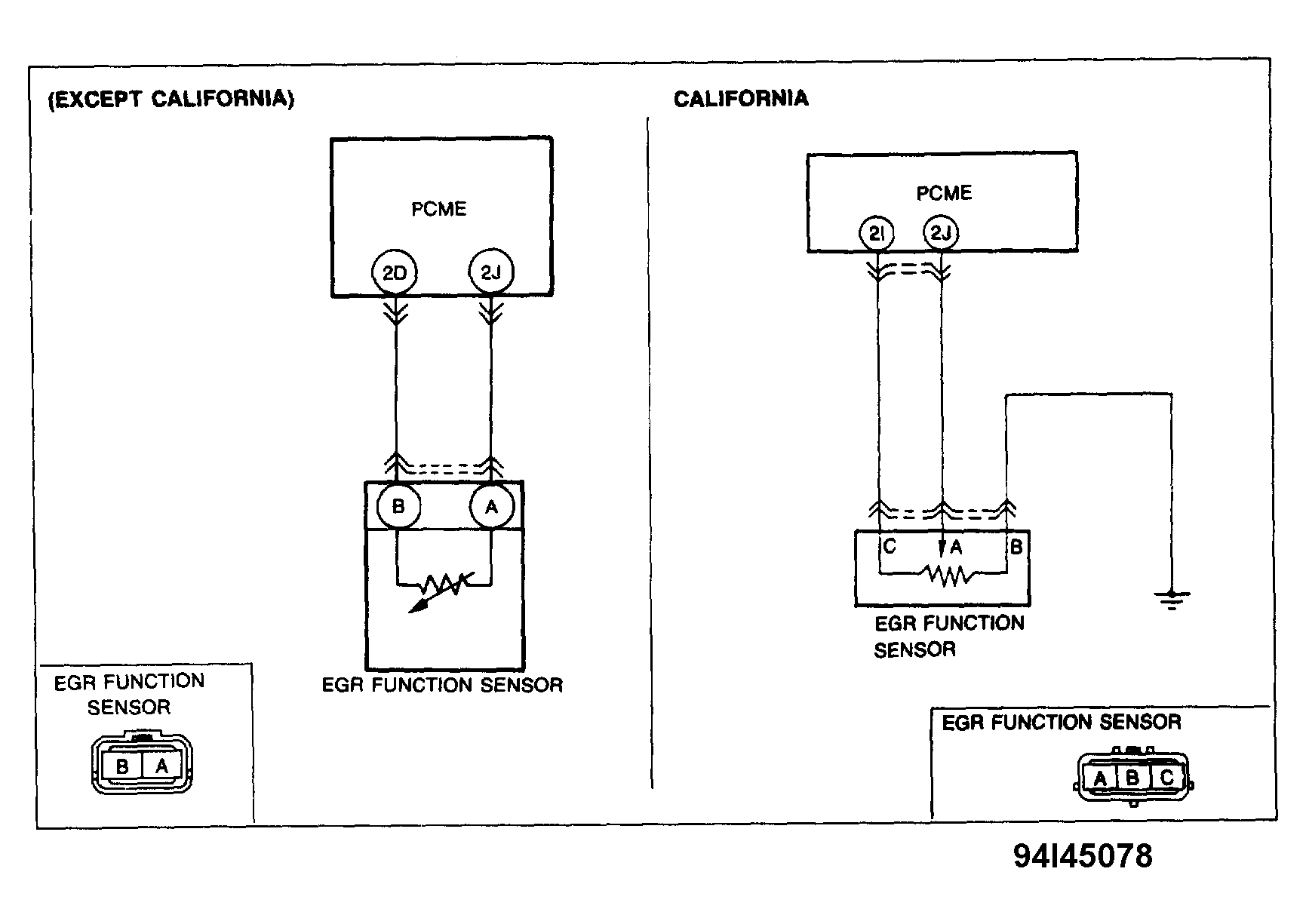

Fig 2: Trouble Code No. 16 Schematic (EGR Function Sensor)

G94I45078
