Code 26: (Purge Control Solenoid Valve)

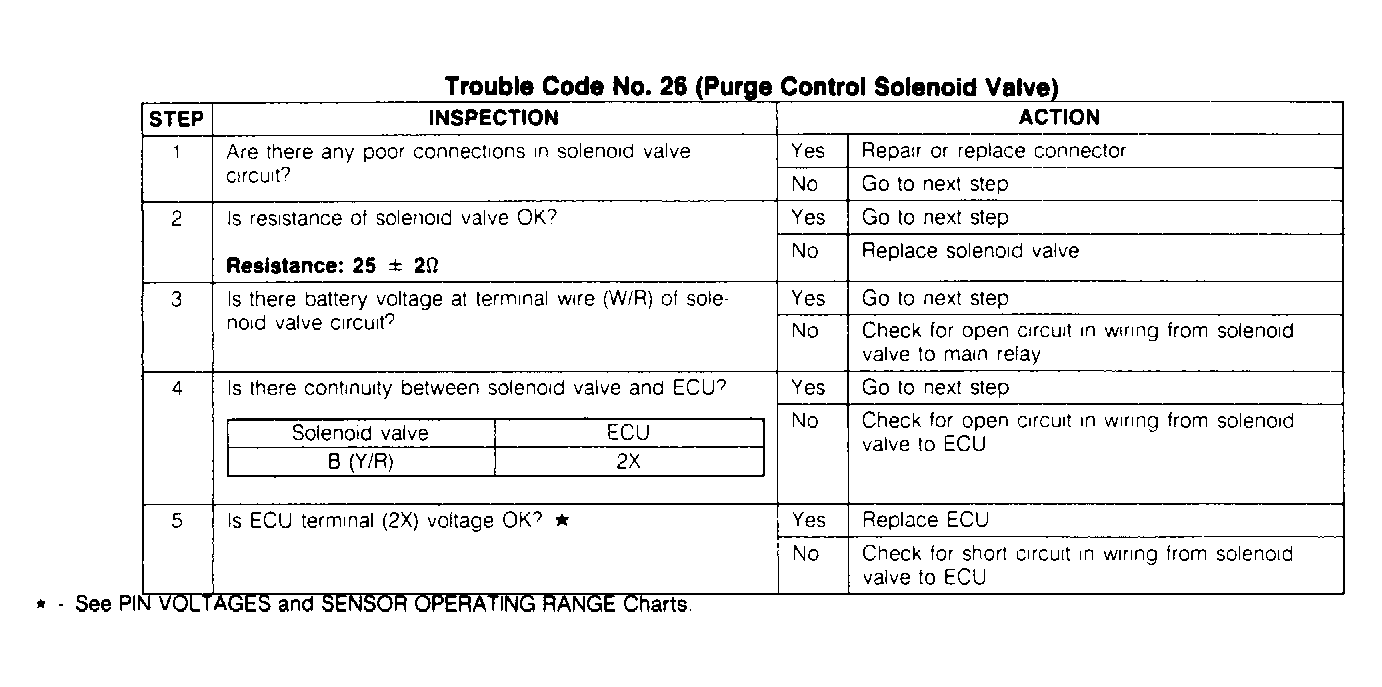

Fig 1: Trouble Code No. 26 (Purge Control Solenoid Valve)

G90A21584

Courtesy of MAZDA MOTORS CORP.
