Retractor Switch Test

Remove retractor switch. With switch turned off, continuity should exist between terminals "B" and "F". See Fig 1 . With switch turned on, continuity should exist between terminals "D" and "F". If continuity is not as specified, replace retractor switch.

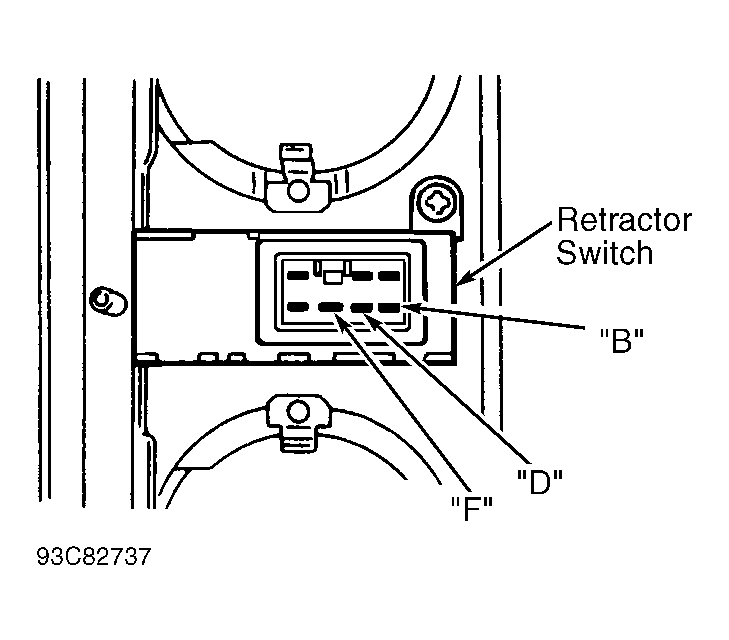

Fig 1: Identifying Retractor Switch Connector Terminals
G93C82737Courtesy of MAZDA MOTORS CORP.
