Code 28: (EGR Vacuum Solenoid Valve)

EGR VACUUM SOLENOID VALVE WIRE COLORS

Terminal	Wire Color
"A"	WHT/RED
"B"	YEL/RED

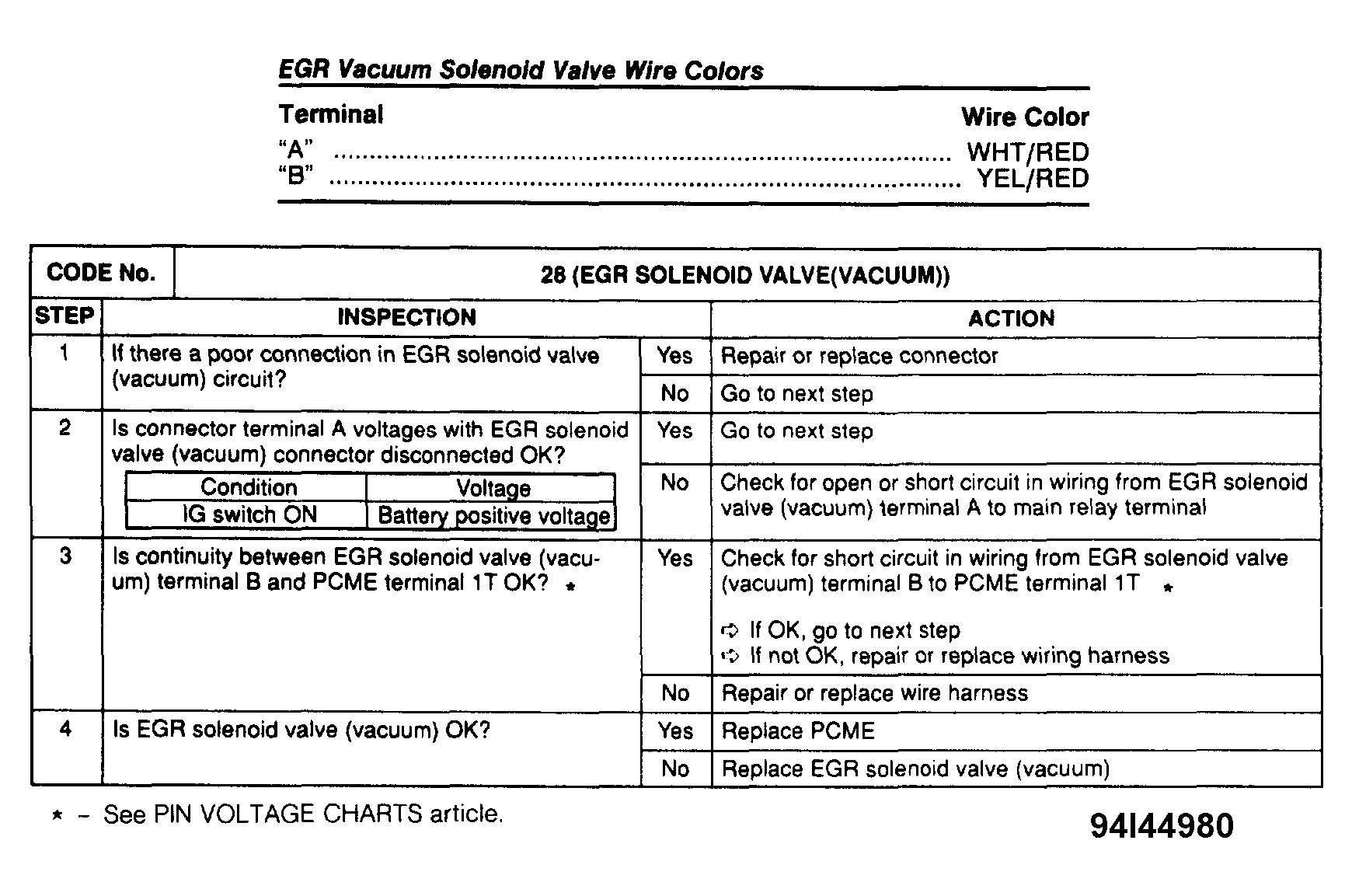

Fig 1: Trouble Code No. 28 (EGR Vacuum Solenoid Valve)

G94I44980

Courtesy of MAZDA MOTORS CORP.
