Code 26: (Purge Control Solenoid Valve)

Fig 1: Trouble Code No. 26 Diagnostic Chart (Purge Control Solenoid Valve)
G92F25283Courtesy of MAZDA MOTORS CORP.

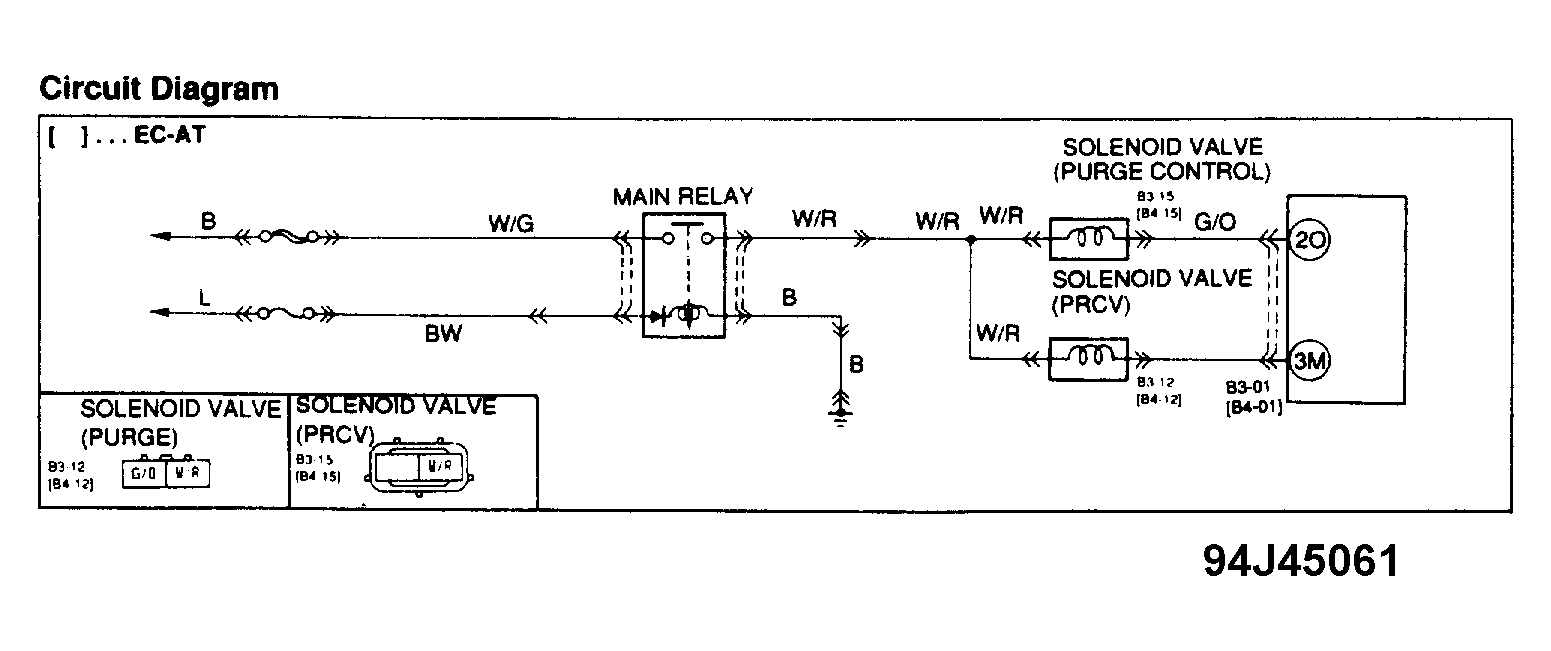

Fig 2: Trouble Code No. 26 Circuit Diagram
G94J45061Courtesy of MAZDA MOTORS CORP.
