Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|
| A/C-Heater Blower Motor Resistor | On top of A/C-heater blower motor housing. |
| A/T Dropping Resistor | On left front of engine compartment. |

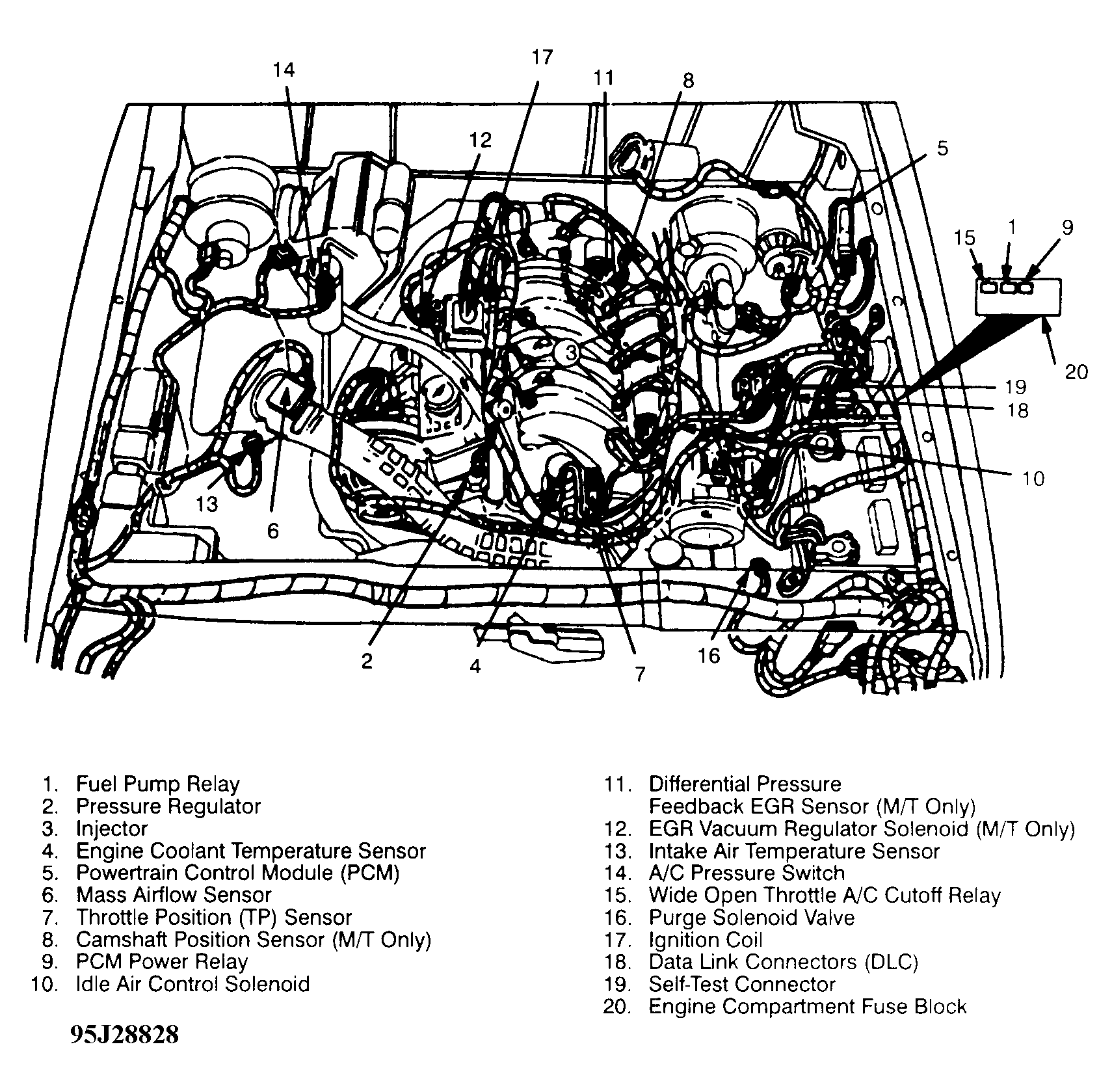

| Data Link Connectors (DLC) (B4000) | On left side of firewall. See Figure . |
| Fuel Pump (Yellow 2-Pin) | Near windshield wiper motor. |
| EGR Valve (B4000) | Top of engine, near intake manifold. See Figure . |
| Purge Solenoid Valve (B3000 & B4000) | Front engine compartment, near battery. See Figure & Figure . |
