Door Lock Control Switch

Disconnect door lock control switch connector. Check continuity between specified terminals of door lock control switch connector with switch in specified position. See DOOR LOCK CONTROL SWITCH CONTINUITY TEST. SeeFig 1 . If continuity is not as specified, replace door lock control switch.

DOOR LOCK CONTROL SWITCH CONTINUITY TEST

Switch Position

Terminals

Neutral

1 & 2; 3 & 4 (⁽¹⁾ 5)

Locked

1 & 5; 3 & 4 (⁽¹⁾ 2)

Unlocked

1 & 2; 4 & 5 (⁽¹⁾ 3)

⁽¹⁾	Continuity should not exist between this terminal and any other terminal.

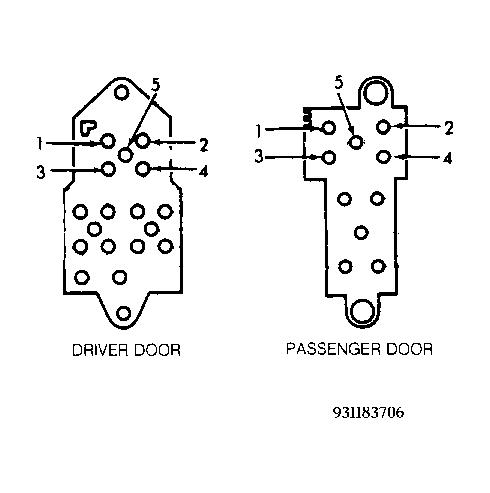

Fig 1: Door Lock Control Switch Terminal ID (B2300, B3000 & B4000)

Courtesy of MAZDA MOTORS CORP.
