Code 25: (Sol Valve - Pressure Regulator Control)

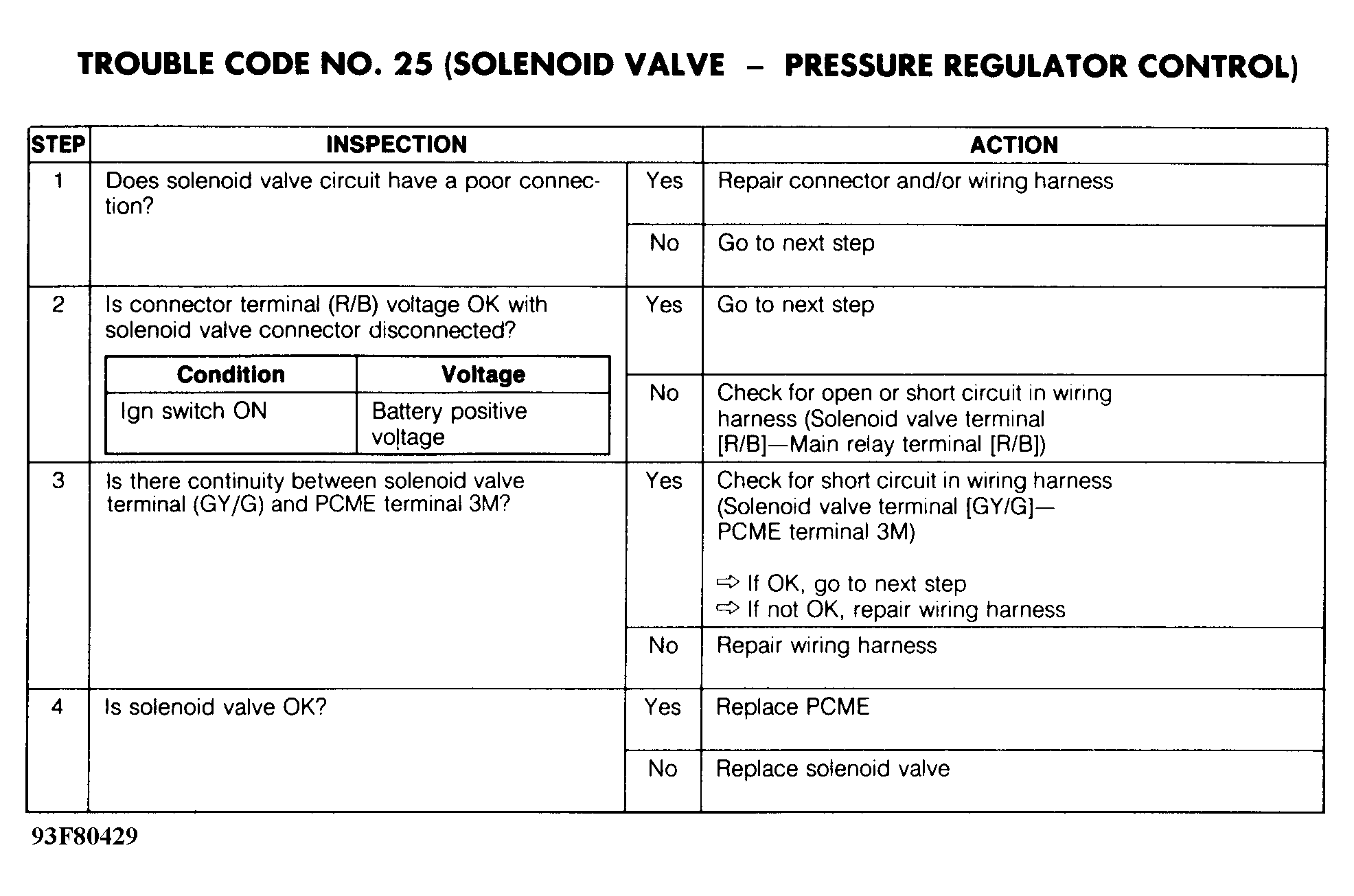

Fig 1: Trouble Code No. 25 Diagnostic Chart (Solenoid Valve - Pressure Regulator Control)
G93F80429

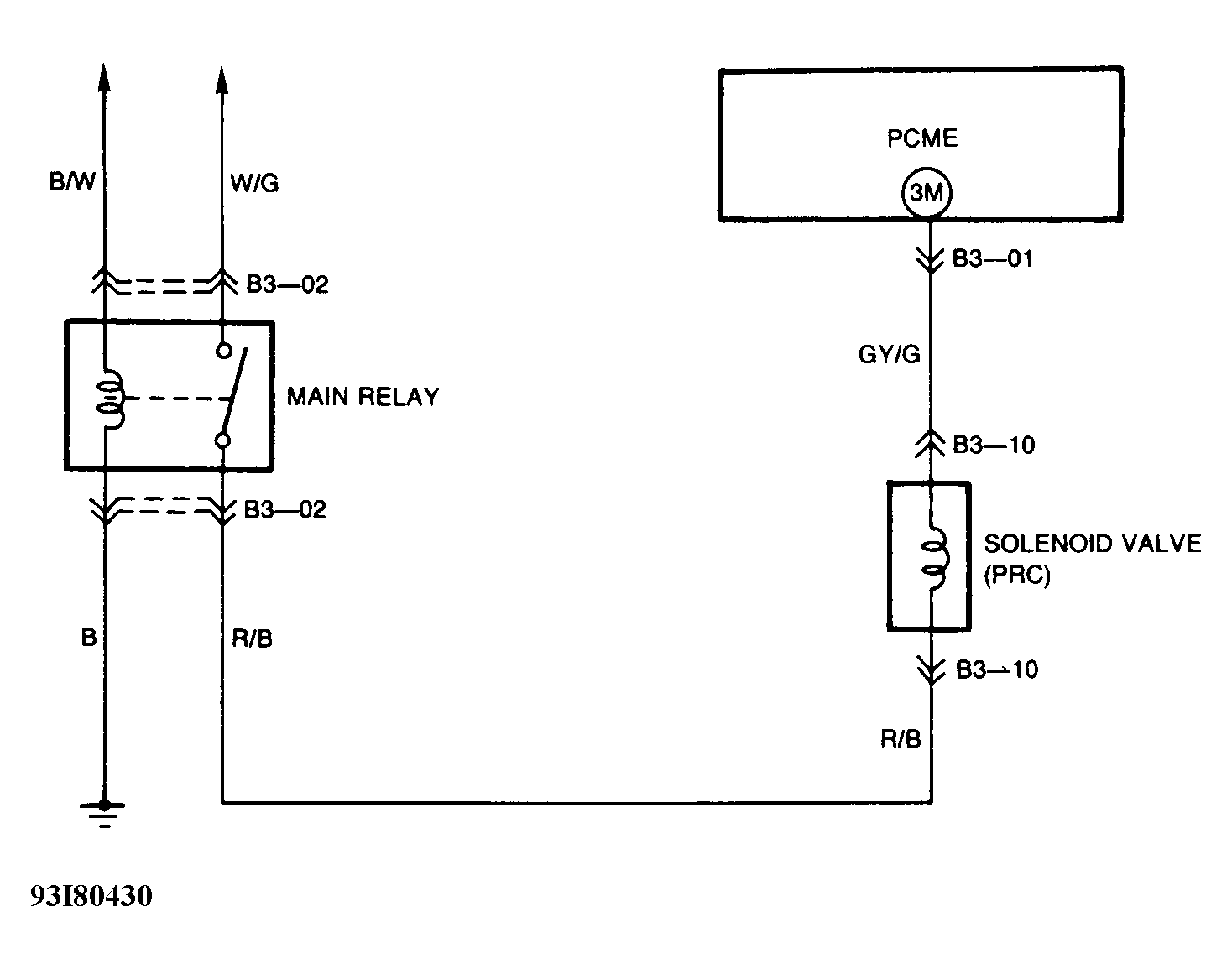

Fig 2: Trouble Code No. 25 Schematic (Solenoid Valve - Pressure Regulator Control)
G93I80430
