A/C O-Ring Replacement (U005/97)

Publication date: 1997-01-01
Reference number: U005/97

A/C O-RING REPLACEMENT

A/C O-RING REPLACEMENT

TECHNICAL SERVICE BULLETIN

Reference Number(s): CAT. U, NO. 005/97
MAZDA: 1989-94 323/Protege; 1995-97 Protege; 1990-97 MX-5; 1992-95 MX-3; 1989-95 RX-7; 1989-97 MPV; 1988-97 626/MX-6; 1990-97 B-Series; 1991-94 Navajo; 1995-97 Millenia; 1992-95 929
SECTION: 07 - HVAC

APPLICABLE MODELS

1989-94 323/Protege, 1995-97 Protege

1990-97 MX-5

1992-95 MX-3

1989-95 RX-7

1989-97 MPV

1988-97 626/MX-6

1990-97 B-Series

1991-94 Navajo

1995-97 Millenia

1992-95 929

DESCRIPTION

Refer to the appropriate illustrations and charts below when replacing A/C system o-rings. These o-rings are designed for use in both R-12 and R-134a, systems.

NOTE: Part numbers ending with "J1X" are delivered in quantities of ten (10).

The illustration below indicates where the o-ring must be measured to determine diameter and thickness. Use this information and the charts below to identify the proper part if the o-rings are accidentally mixed.

Fig 1: Measuring O-Ring Thickness
G00093006

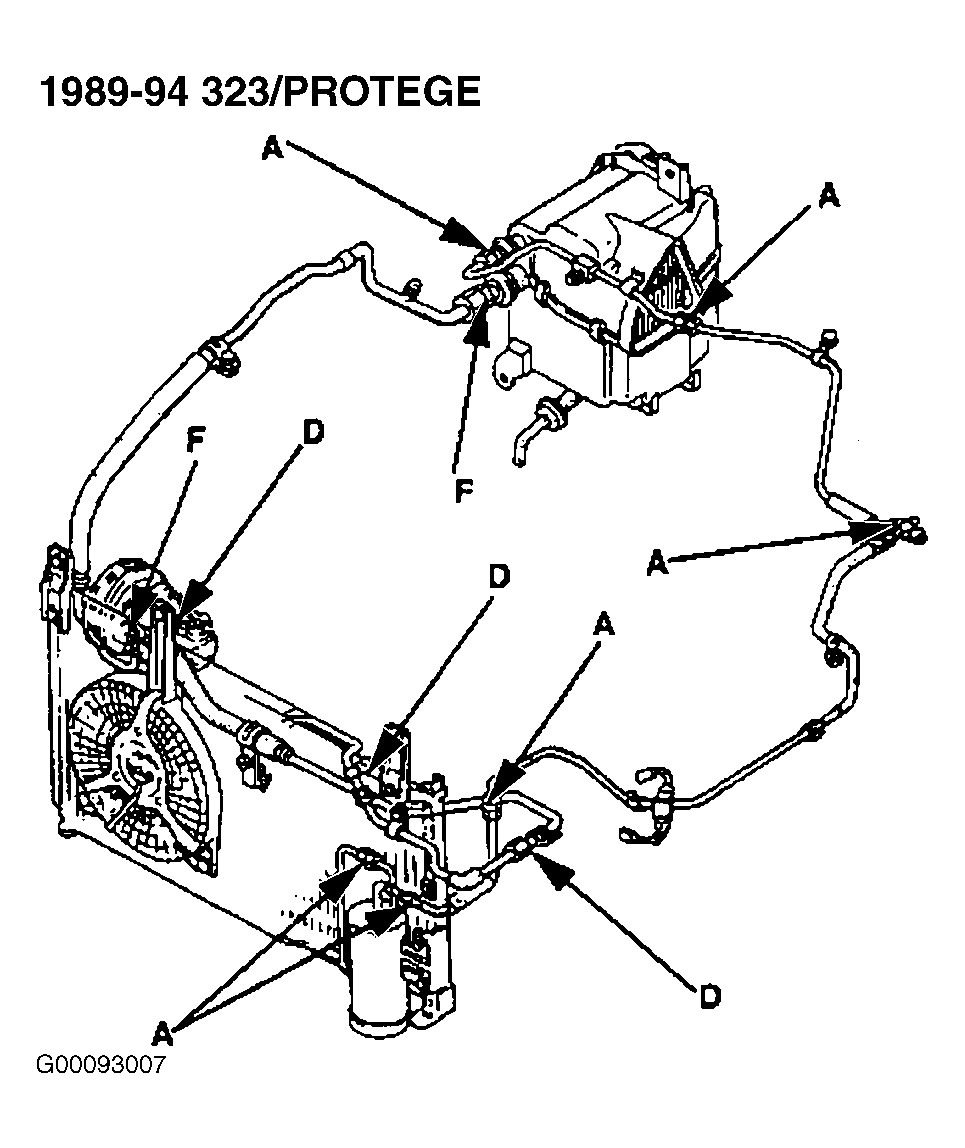

Fig 2: 89-94 323/Protege
G00093007
89-94 323/Protege

Code Pipe Size O-Ring Size IDxT Part & Kit Numbers Qty
A 8mm 6.9x1.76 LB51-61-J1X 6
B 5/16in 6.8x1.5 LB52-61-J1X ---
C 3/8in 7.65x1.78 LB53-61-J1X ---
D 12mm 10.8x1.78 LB54-61-J1X 3
E 12mm axial 10.8x2.4 LB55-61-J1X ---
F 16mm 14.0x1.78 LB56-61-J1X 2
G 16mm axial 13.4x2.4 LB57-61-J1X ---
H 3/8in 7.36x1.8 9XG0-19-9300 ---
J 1/2in 10.16x1.85 9XG0-19-9201 ---
K 5/8in 12.95x1.85 9XG0-19-9400 ---
L 5/8in 6.07x1.78 C003-61-J17 ---
M 16mm axial 14x1.78 C004-61-J17 ---
N 5/8in 10.8x1.78 C005-61-J17 ---
P 12mm 10.8x2.4 W257-61-J17 ---
Q 5/16in 6.7x1.8 W326-61-J17 ---
R 16mm 13.4x2.4 W329-61-J17 ---
Note: Part numbers ending with "J1X" are delivered in quantities of ten (10).

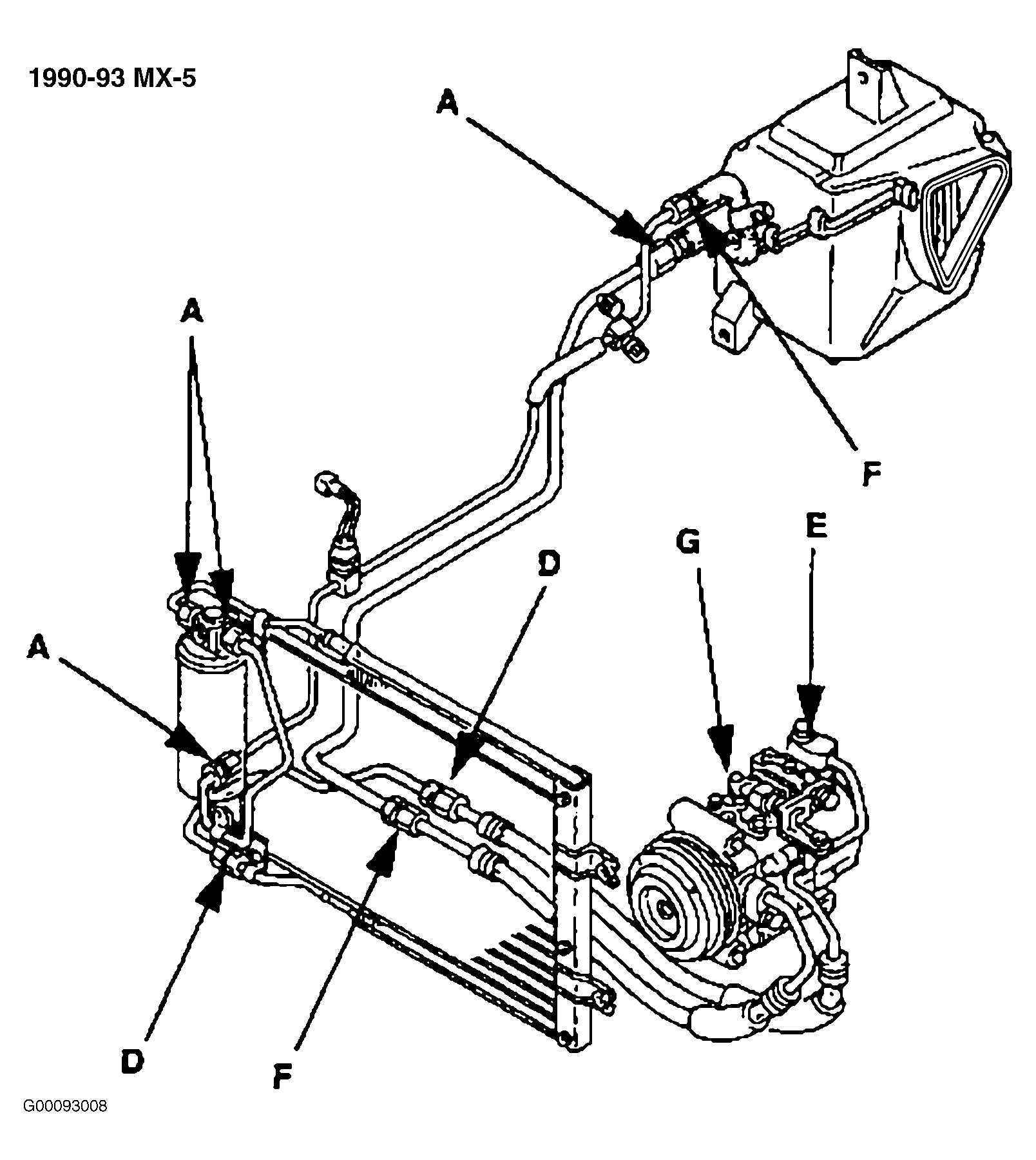

Fig 3: 1990-93 MX-5
G00093008
90-93 MX-5

Code Pipe Size O-Ring Size IDxT Part & Kit Numbers Qty
A 8mm 6.9x1.76 LB51-61-J1X 4
B 5/16in 6.8x1.5 LB52-61-J1X ---
C 3/8in 7.65x1.78 LB53-61-J1X ---
D 12mm 10.8x1.78 LB54-61-J1X 2
E 12mm axial 10.8x2.4 LB55-61-J1X 1
F 16mm 14.0x1.78 LB56-61-J1X 2
G 16mm axial 13.4x2.4 LB57-61-J1X 1
H 3/8in 7.36x1.8 9XG0-19-9300 ---
J 1/2in 10.16x1.85 9XG0-19-9201 ---
K 5/8in 12.95x1.85 9XG0-19-9400 ---
L 5/8in 6.07x1.78 C003-61-J17 ---
M 16mm axial 14x1.78 C004-61-J17 ---
N 5/8in 10.8x1.78 C005-61-J17 ---
P 12mm 10.8x2.4 W257-61-J17 ---
Q 5/16in 6.7x1.8 W326-61-J17 ---
R 16mm 13.4x2.4 W329-61-J17 ---
Note: Part numbers ending with "J1X" are delivered in quantities of ten (10).
Fig 4: 1992-95 MX-3
G00093009
1992-95 MX-3

Code Pipe Size O-Ring Size IDxT Part & Kit Numbers Qty
A 8mm 6.9x1.76 LB51-61-J1X 5
B 5/16in 6.8x1.5 LB52-61-J1X ---
C 3/8in 7.65x1.78 LB53-61-J1X ---
D 12mm 10.8x1.78 LB54-61-J1X 3
E 12mm axial 10.8x2.4 LB55-61-J1X ---
F 16mm 14.0x1.78 LB56-61-J1X 2
G 16mm axial 13.4x2.4 LB57-61-J1X ---
H 3/8in 7.36x1.8 9XG0-19-9300 ---
J 1/2in 10.16x1.85 9XG0-19-9201 ---
K 5/8in 12.95x1.85 9XG0-19-9400 ---
L 5/8in 6.07x1.78 C003-61-J17 ---
M 16mm axial 14x1.78 C004-61-J17 ---
N 5/8in 10.8x1.78 C005-61-J17 ---
P 12mm 10.8x2.4 W257-61-J17 ---
Q 5/16in 6.7x1.8 W326-61-J17 ---
R 16mm 13.4x2.4 W329-61-J17 ---
Note: Part numbers ending with "J1X" are delivered in quantities of ten (10).

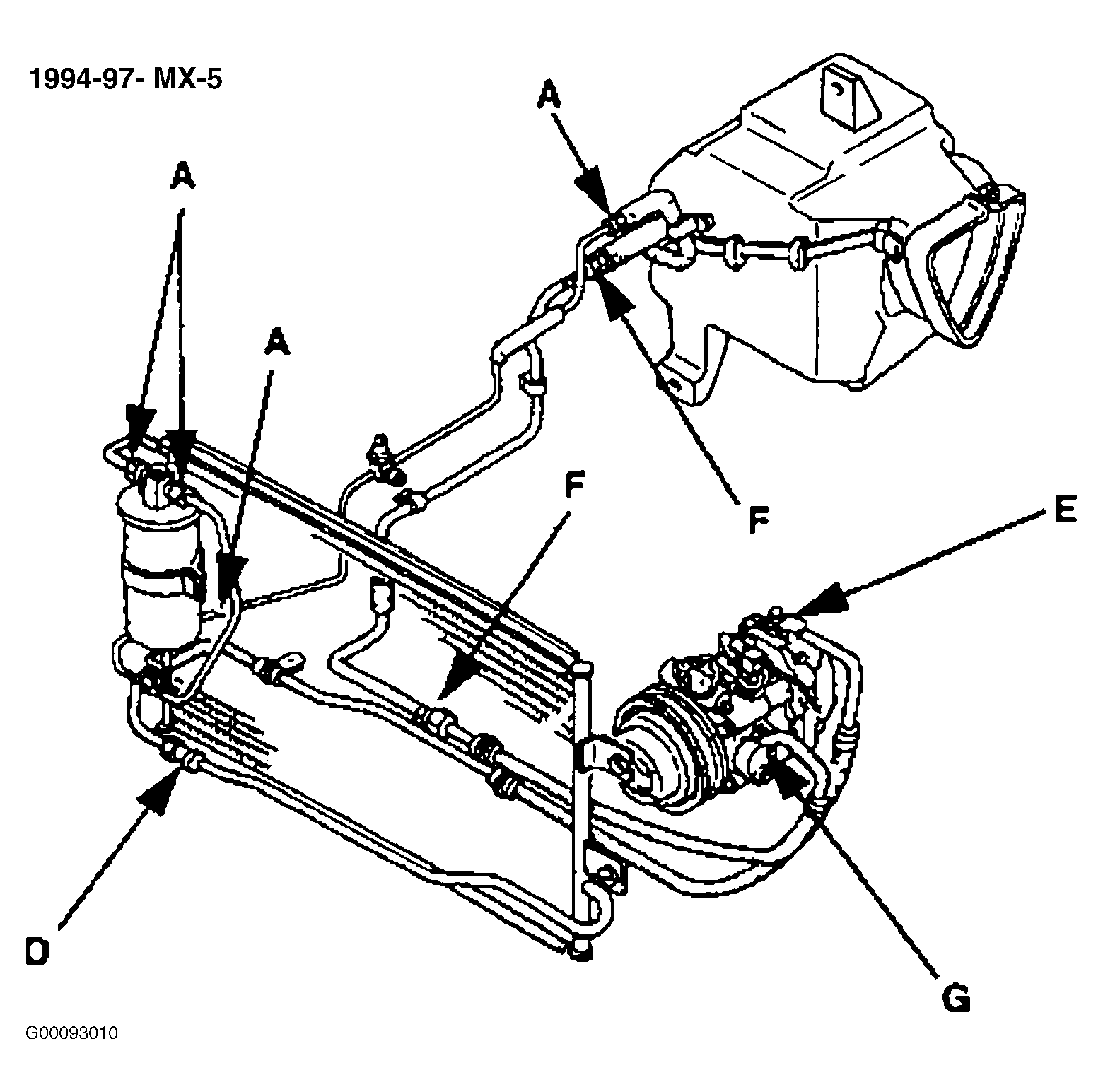

Fig 5: 1994-97 MX-5
G00093010
1994-97 MX-5

Code Pipe Size O-Ring Size IDxT Part & Kit Numbers Qty
A 8mm 6.9x1.76 LB51-61-J1X 4
B 5/16in 6.8x1.5 LB52-61-J1X ---
C 3/8in 7.65x1.78 LB53-61-J1X ---
D 12mm 10.8x1.78 LB54-61-J1X 1
E 12mm axial 10.8x2.4 LB55-61-J1X 1
F 16mm 14.0x1.78 LB56-61-J1X 2
G 16mm axial 13.4x2.4 LB57-61-J1X 1
H 3/8in 7.36x1.8 9XG0-19-9300 ---
J 1/2in 10.16x1.85 9XG0-19-9201 ---
K 5/8in 12.95x1.85 9XG0-19-9400 ---
L 5/8in 6.07x1.78 C003-61-J17 ---
M 16mm axial 14x1.78 C004-61-J17 ---
N 5/8in 10.8x1.78 C005-61-J17 ---
P 12mm 10.8x2.4 W257-61-J17 ---
Q 5/16in 6.7x1.8 W326-61-J17 ---
R 16mm 13.4x2.4 W329-61-J17 ---
Note: Part numbers ending with "J1X" are delivered in quantities of ten (10).

Illustration is not available for the 1989-94 RX-7

1989-94 RX-7

Code Pipe Size O-Ring Size IDxT Part & Kit Numbers Qty
A 8mm 6.9x1.76 LB51-61-J1X 6
B 5/16in 6.8x1.5 LB52-61-J1X ---
C 3/8in 7.65x1.78 LB53-61-J1X ---
D 12mm 10.8x1.78 LB54-61-J1X 2
E 12mm axial 10.8x2.4 LB55-61-J1X ---
F 16mm 14.0x1.78 LB56-61-J1X 3
G 16mm axial 13.4x2.4 LB57-61-J1X ---
H 3/8in 7.36x1.8 9XG0-19-9300 ---
J 1/2in 10.16x1.85 9XG0-19-9201 ---
K 5/8in 12.95x1.85 9XG0-19-9400 ---
L 5/8in 6.07x1.78 C003-61-J17 ---
M 16mm axial 14x1.78 C004-61-J17 ---
N 5/8in 10.8x1.78 C005-61-J17 ---
P 12mm 10.8x2.4 W257-61-J17 ---
Q 5/16in 6.7x1.8 W326-61-J17 ---
R 16mm 13.4x2.4 W329-61-J17 ---
Note: Part numbers ending with "J1X" are delivered in quantities of ten (10).

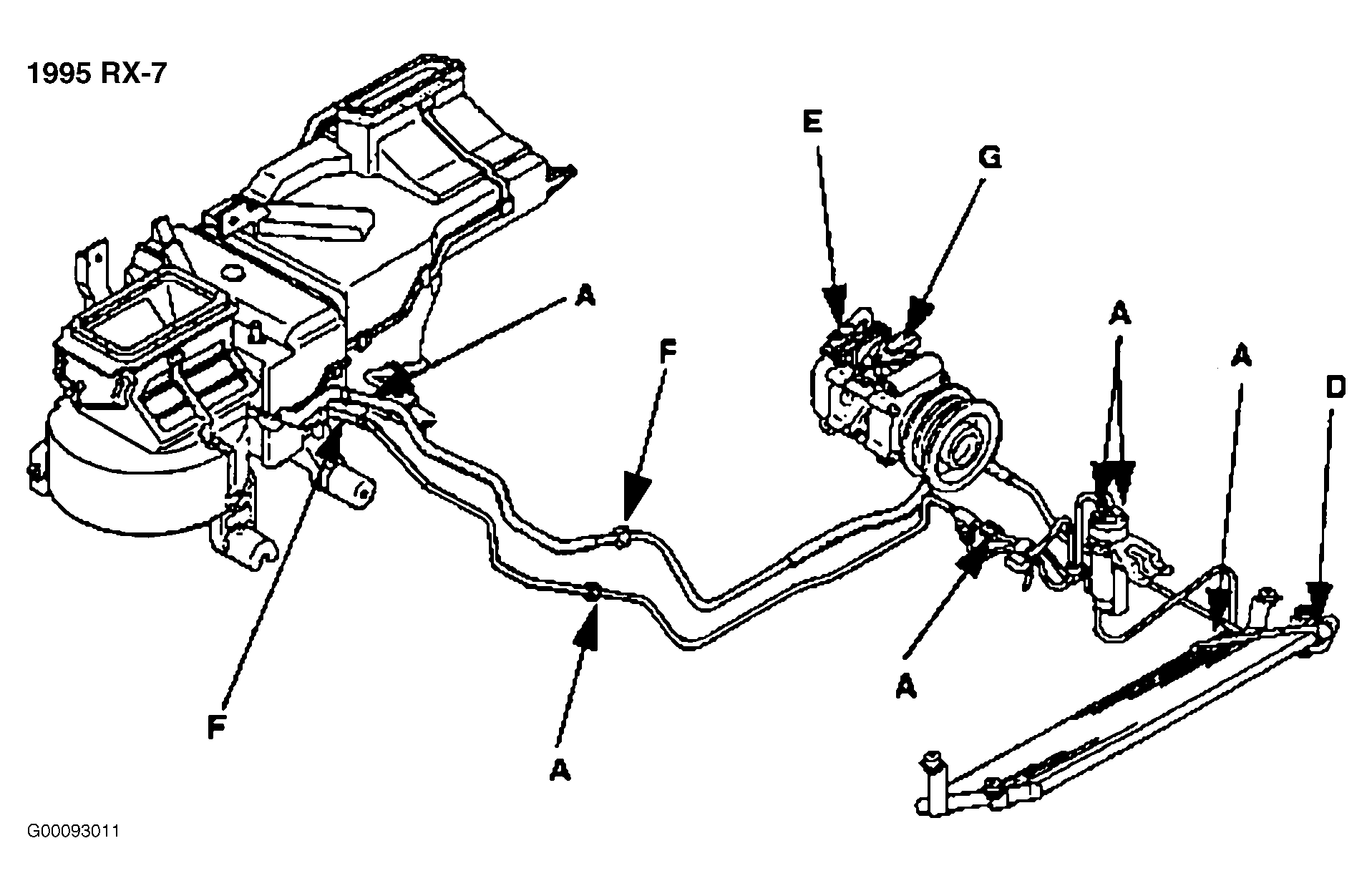

Fig 6: 1995 RX-7
G00093011
1995 RX-7

Code Pipe Size O-Ring Size IDxT Part & Kit Numbers Qty
A 8mm 6.9x1.76 LB51-61-J1X 6
B 5/16in 6.8x1.5 LB52-61-J1X ---
C 3/8in 7.65x1.78 LB53-61-J1X ---
D 12mm 10.8x1.78 LB54-61-J1X 1
E 12mm axial 10.8x2.4 LB55-61-J1X 1
F 16mm 14.0x1.78 LB56-61-J1X 2
G 16mm axial 13.4x2.4 LB57-61-J1X 1
H 3/8in 7.36x1.8 9XG0-19-9300 ---
J 1/2in 10.16x1.85 9XG0-19-9201 ---
K 5/8in 12.95x1.85 9XG0-19-9400 ---
L 5/8in 6.07x1.78 C003-61-J17 ---
M 16mm axial 14x1.78 C004-61-J17 ---
N 5/8in 10.8x1.78 C005-61-J17 ---
P 12mm 10.8x2.4 W257-61-J17 ---
Q 5/16in 6.7x1.8 W326-61-J17 ---
R 16mm 13.4x2.4 W329-61-J17 ---
Note: Part numbers ending with "J1X" are delivered in quantities of ten (10).

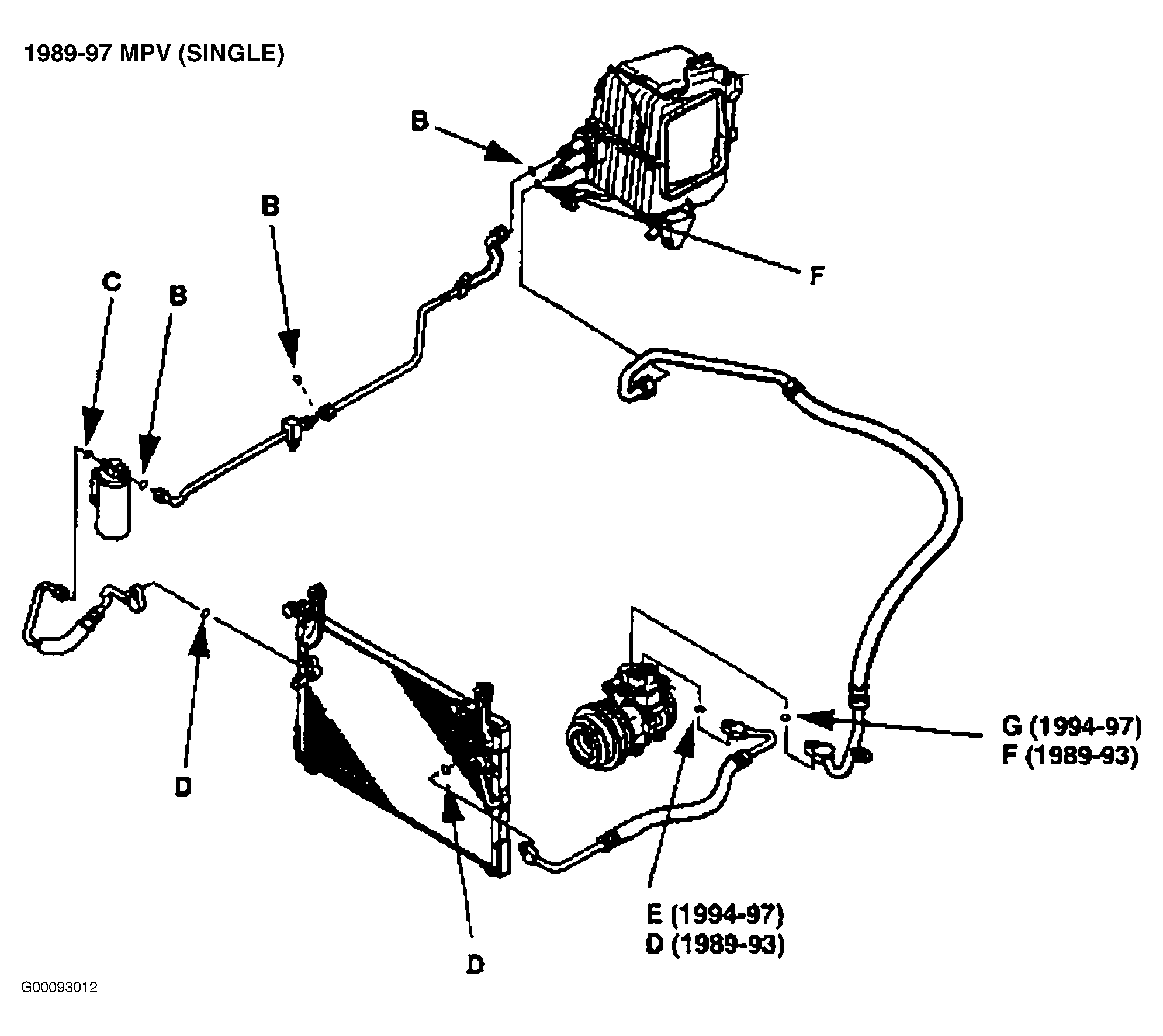

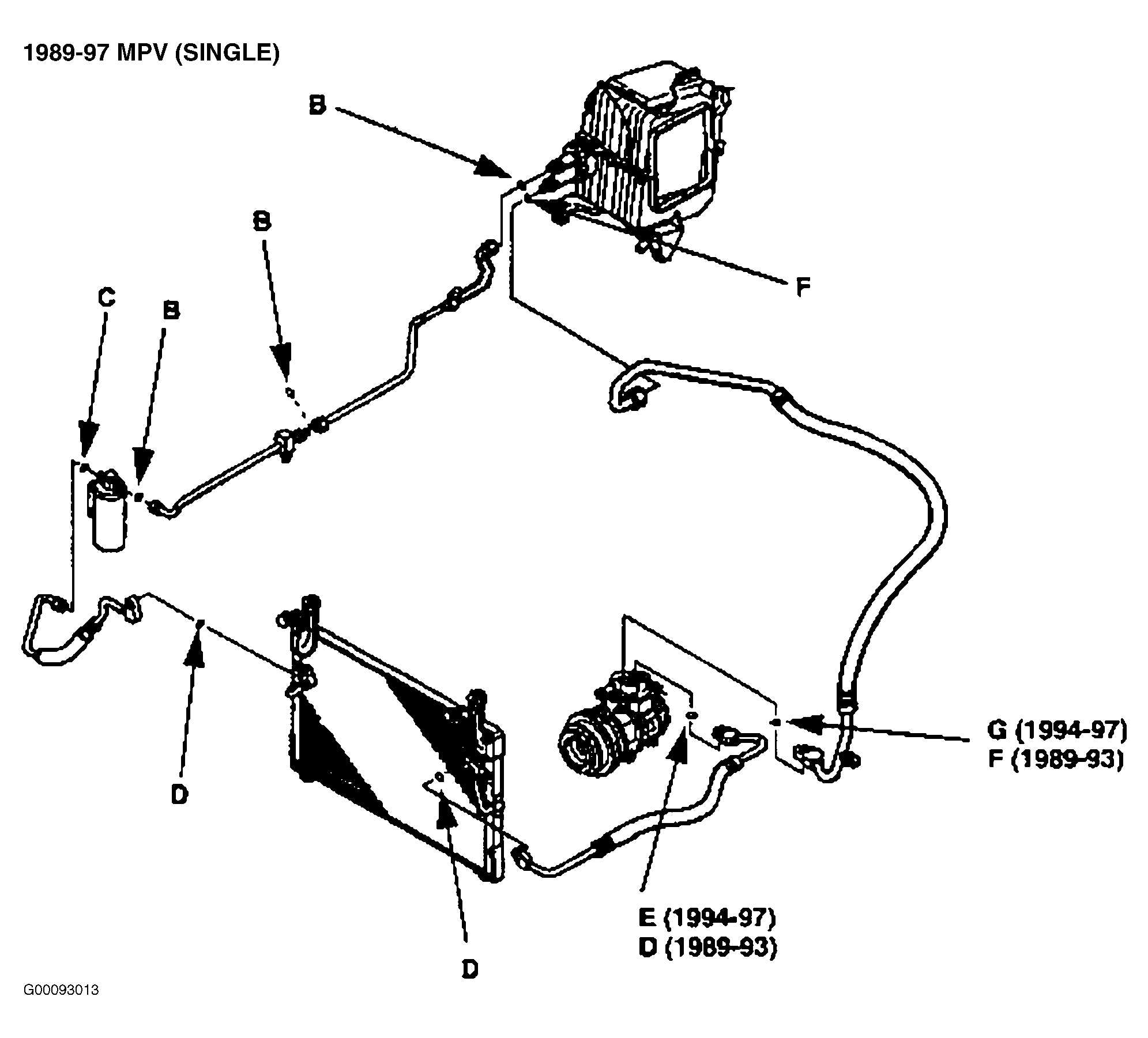

Fig 7: 1989-97 MPV (Single)
G00093012
1989-93 MPV

Code Pipe Size O-Ring Size IDxT Part & Kit Numbers Qty
A 8mm 6.9x1.76 LB51-61-J1X ---
B 5/16in 6.8x1.5 LB52-61-J1X 3
C 3/8in 7.65x1.78 LB53-61-J1X 1
D 12mm 10.8x1.78 LB54-61-J1X 3
E 12mm axial 10.8x2.4 LB55-61-J1X ---
F 16mm 14.0x1.78 LB56-61-J1X 2
G 16mm axial 13.4x2.4 LB57-61-J1X ---
H 3/8in 7.36x1.8 9XG0-19-9300 ---
J 1/2in 10.16x1.85 9XG0-19-9201 ---
K 5/8in 12.95x1.85 9XG0-19-9400 ---
L 5/8in 6.07x1.78 C003-61-J17 ---
M 16mm axial 14x1.78 C004-61-J17 ---
N 5/8in 10.8x1.78 C005-61-J17 ---
P 12mm 10.8x2.4 W257-61-J17 ---
Q 5/16in 6.7x1.8 W326-61-J17 ---
R 16mm 13.4x2.4 W329-61-J17 ---
Note: Part numbers ending with "J1X" are delivered in quantities of ten (10).
Fig 8: 1994-97 MPV (Single)
G00093013
1994-97 MPV

Code Pipe Size O-Ring Size IDxT Part & Kit Numbers Qty
A 8mm 6.9x1.76 LB51-61-J1X ---
B 5/16in 6.8x1.5 LB52-61-J1X 3
C 3/8in 7.65x1.78 LB53-61-J1X 1
D 12mm 10.8x1.78 LB54-61-J1X 2
E 12mm axial 10.8x2.4 LB55-61-J1X 1
F 16mm 14.0x1.78 LB56-61-J1X 1
G 16mm axial 13.4x2.4 LB57-61-J1X 1
H 3/8in 7.36x1.8 9XG0-19-9300 ---
J 1/2in 10.16x1.85 9XG0-19-9201 ---
K 5/8in 12.95x1.85 9XG0-19-9400 ---
L 5/8in 6.07x1.78 C003-61-J17 ---
M 16mm axial 14x1.78 C004-61-J17 ---
N 5/8in 10.8x1.78 C005-61-J17 ---
P 12mm 10.8x2.4 W257-61-J17 ---
Q 5/16in 6.7x1.8 W326-61-J17 ---
R 16mm 13.4x2.4 W329-61-J17 ---
Note: Part numbers ending with "J1X" are delivered in quantities of ten (10).
Fig 9: 1988-92 626/MX6
G00093014
1988-92 626/MX-6

Code Pipe Size O-Ring Size IDxT Part & Kit Numbers Qty
A 8mm 6.9x1.76 LB51-61-J1X 4
B 5/16in 6.8x1.5 LB52-61-J1X ---
C 3/8in 7.65x1.78 LB53-61-J1X ---
D 12mm 10.8x1.78 LB54-61-J1X 2
E 12mm axial 10.8x2.4 LB55-61-J1X ---
F 16mm 14.0x1.78 LB56-61-J1X 3
G 16mm axial 13.4x2.4 LB57-61-J1X ---
H 3/8in 7.36x1.8 9XG0-19-9300 ---
J 1/2in 10.16x1.85 9XG0-19-9201 ---
K 5/8in 12.95x1.85 9XG0-19-9400 ---
L 5/8in 6.07x1.78 C003-61-J17 ---
M 16mm axial 14x1.78 C004-61-J17 ---
N 5/8in 10.8x1.78 C005-61-J17 ---
P 12mm 10.8x2.4 W257-61-J17 ---
Q 5/16in 6.7x1.8 W326-61-J17 ---
R 16mm 13.4x2.4 W329-61-J17 ---
Note: Part numbers ending with "J1X" are delivered in quantities of ten (10).

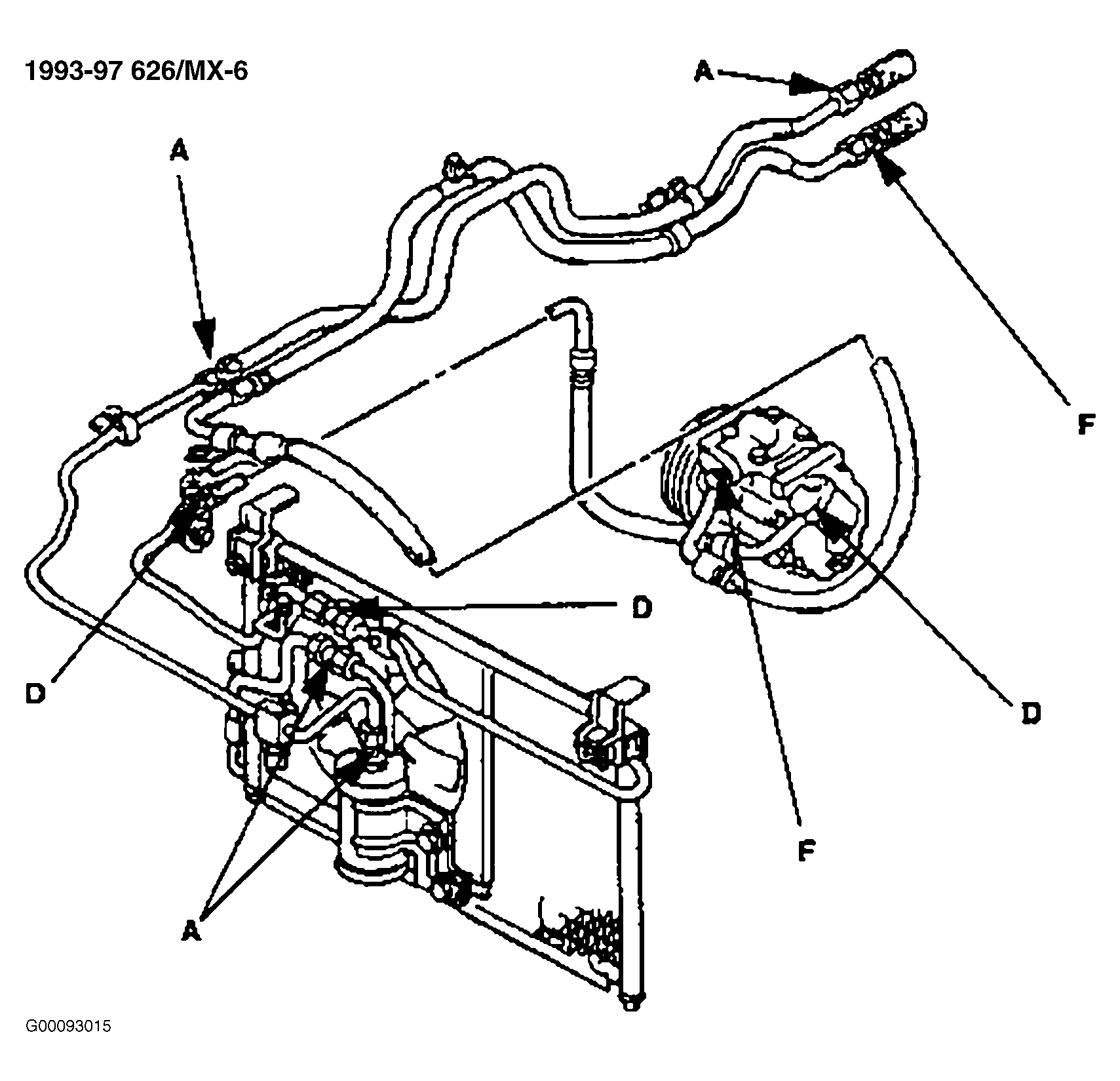

Fig 10: 1993-97 626/MX-6
G00093015
1993-97 626/MX-6

Code Pipe Size O-Ring Size IDxT Part & Kit Numbers Qty
A 8mm 6.9x1.76 LB51-61-J1X 4
B 5/16in 6.8x1.5 LB52-61-J1X ---
C 3/8in 7.65x1.78 LB53-61-J1X ---
D 12mm 10.8x1.78 LB54-61-J1X 3
E 12mm axial 10.8x2.4 LB55-61-J1X ---
F 16mm 14.0x1.78 LB56-61-J1X 2
G 16mm axial 13.4x2.4 LB57-61-J1X ---
H 3/8in 7.36x1.8 9XG0-19-9300 ---
J 1/2in 10.16x1.85 9XG0-19-9201 ---
K 5/8in 12.95x1.85 9XG0-19-9400 ---
L 5/8in 6.07x1.78 C003-61-J17 ---
M 16mm axial 14x1.78 C004-61-J17 ---
N 5/8in 10.8x1.78 C005-61-J17 ---
P 12mm 10.8x2.4 W257-61-J17 ---
Q 5/16in 6.7x1.8 W326-61-J17 ---
R 16mm 13.4x2.4 W329-61-J17 ---
Note: Part numbers ending with "J1X" are delivered in quantities of ten (10).

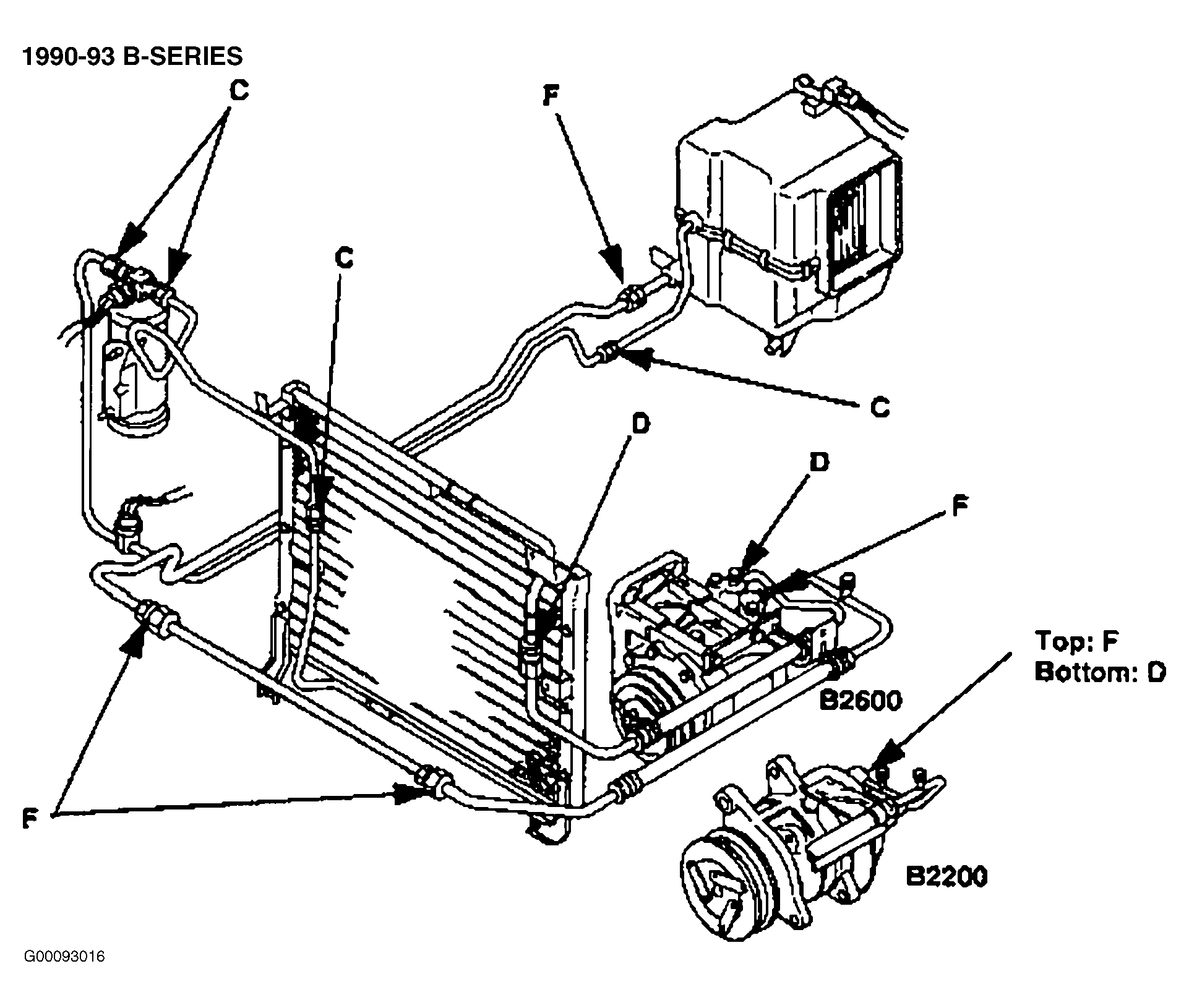

Fig 11: 1990-93 B-Series
G00093016
1990-93 B-Series

Code Pipe Size O-Ring Size IDxT Part & Kit Numbers Qty
A 8mm 6.9x1.76 LB51-61-J1X ---
B 5/16in 6.8x1.5 LB52-61-J1X ---
C 3/8in 7.65x1.78 LB53-61-J1X 4
D 12mm 10.8x1.78 LB54-61-J1X 2
E 12mm axial 10.8x2.4 LB55-61-J1X ---
F 16mm 14.0x1.78 LB56-61-J1X 4
G 16mm axial 13.4x2.4 LB57-61-J1X ---
H 3/8in 7.36x1.8 9XG0-19-9300 ---
J 1/2in 10.16x1.85 9XG0-19-9201 ---
K 5/8in 12.95x1.85 9XG0-19-9400 ---
L 5/8in 6.07x1.78 C003-61-J17 ---
M 16mm axial 14x1.78 C004-61-J17 ---
N 5/8in 10.8x1.78 C005-61-J17 ---
P 12mm 10.8x2.4 W257-61-J17 ---
Q 5/16in 6.7x1.8 W326-61-J17 ---
R 16mm 13.4x2.4 W329-61-J17 ---
Note: Part numbers ending with "J1X" are delivered in quantities of ten (10).

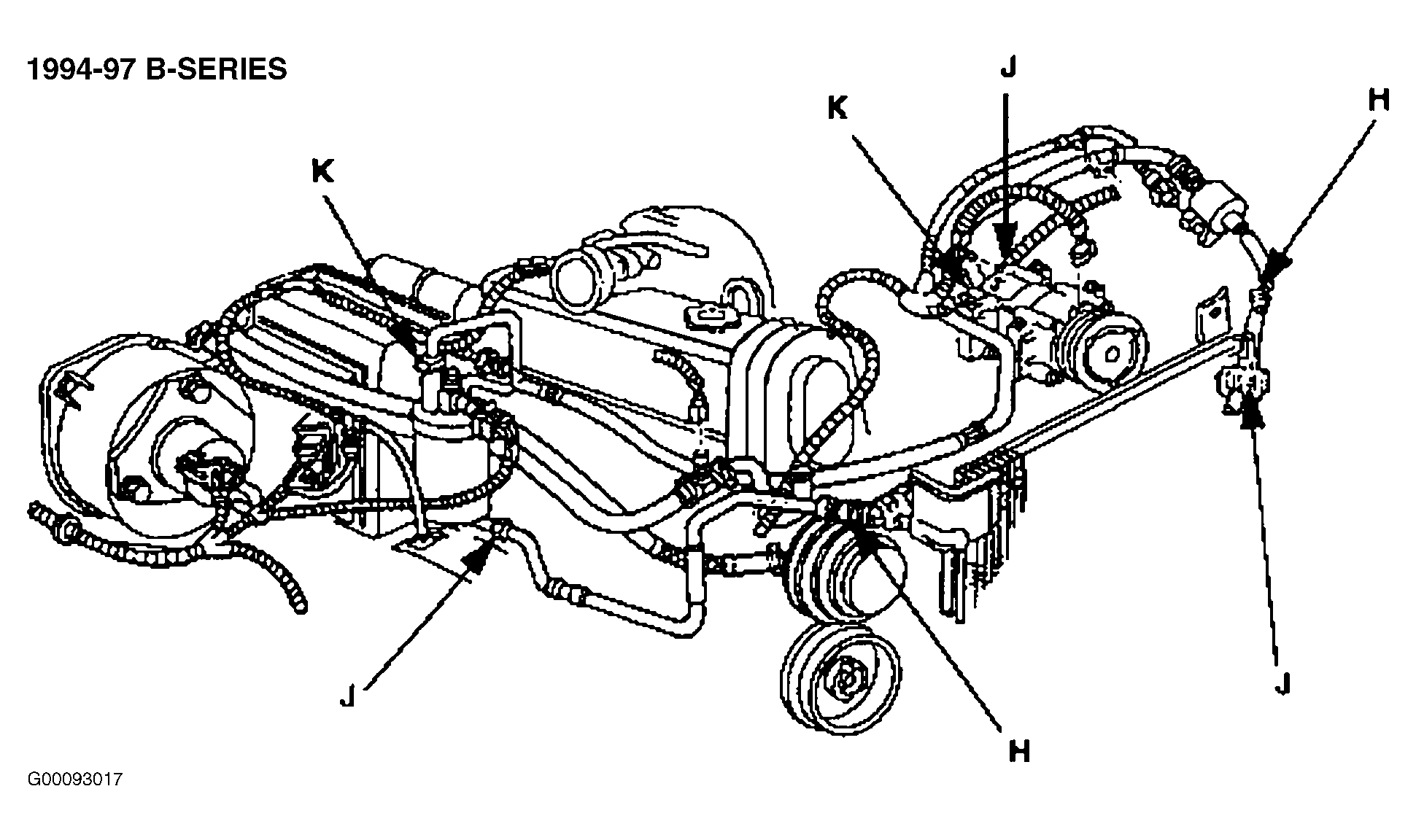

Fig 12: 1994-97 B-Series
G00093017
1994-97 B-Series

Code Pipe Size O-Ring Size IDxT Part & Kit Numbers Qty
A 8mm 6.9x1.76 LB51-61-J1X ---
B 5/16in 6.8x1.5 LB52-61-J1X ---
C 3/8in 7.65x1.78 LB53-61-J1X ---
D 12mm 10.8x1.78 LB54-61-J1X ---
E 12mm axial 10.8x2.4 LB55-61-J1X ---
F 16mm 14.0x1.78 LB56-61-J1X ---
G 16mm axial 13.4x2.4 LB57-61-J1X ---
H 3/8in 7.36x1.8 9XG0-19-9300 2
J 1/2in 10.16x1.85 9XG0-19-9201 3
K 5/8in 12.95x1.85 9XG0-19-9400 2
L 5/8in 6.07x1.78 C003-61-J17 ---
M 16mm axial 14x1.78 C004-61-J17 ---
N 5/8in 10.8x1.78 C005-61-J17 ---
P 12mm 10.8x2.4 W257-61-J17 ---
Q 5/16in 6.7x1.8 W326-61-J17 ---
R 16mm 13.4x2.4 W329-61-J17 ---
Note: These vehicles are equipped with Ford air conditionering systems. Part numbers ending with "J1X" are delivered in quantities of ten (10).

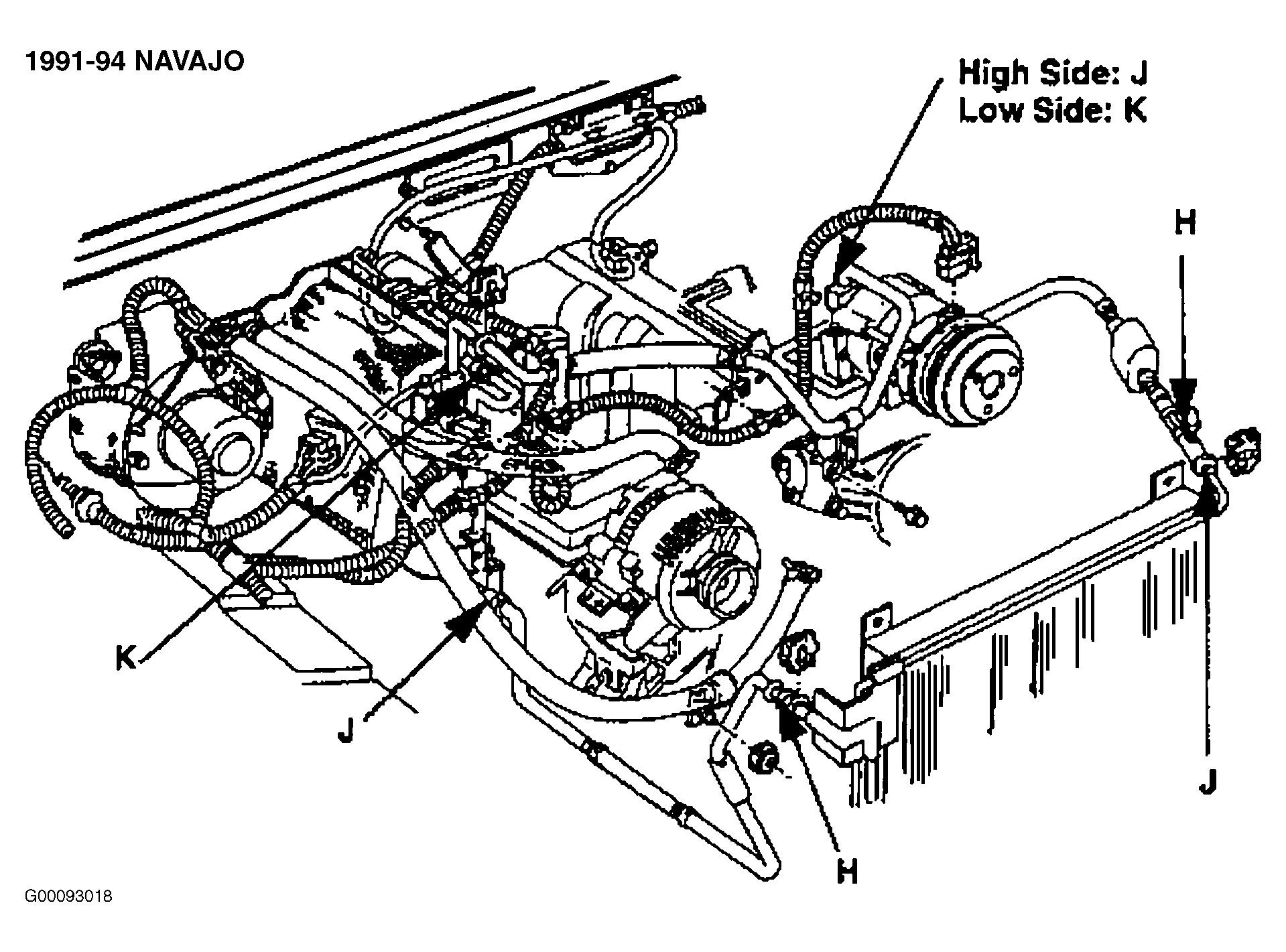

Fig 13: 1991-94 Navajo
G00093018
1991-94 Navajo

Code Pipe Size O-Ring Size IDxT Part & Kit Numbers Qty
A 8mm 6.9x1.76 LB51-61-J1X ---
B 5/16in 6.8x1.5 LB52-61-J1X ---
C 3/8in 7.65x1.78 LB53-61-J1X ---
D 12mm 10.8x1.78 LB54-61-J1X ---
E 12mm axial 10.8x2.4 LB55-61-J1X ---
F 16mm 14.0x1.78 LB56-61-J1X ---
G 16mm axial 13.4x2.4 LB57-61-J1X ---
H 3/8in 7.36x1.8 9XG0-19-9300 2
J 1/2in 10.16x1.85 9XG0-19-9201 3
K 5/8in 12.95x1.85 9XG0-19-9400 2
L 5/8in 6.07x1.78 C003-61-J17 ---
M 16mm axial 14x1.78 C004-61-J17 ---
N 5/8in 10.8x1.78 C005-61-J17 ---
P 12mm 10.8x2.4 W257-61-J17 ---
Q 5/16in 6.7x1.8 W326-61-J17 ---
R 16mm 13.4x2.4 W329-61-J17 ---
Note: These vehicles are equipped with Ford air conditionering systems. Part numbers ending with "J1X" are delivered in quantities of ten (10).

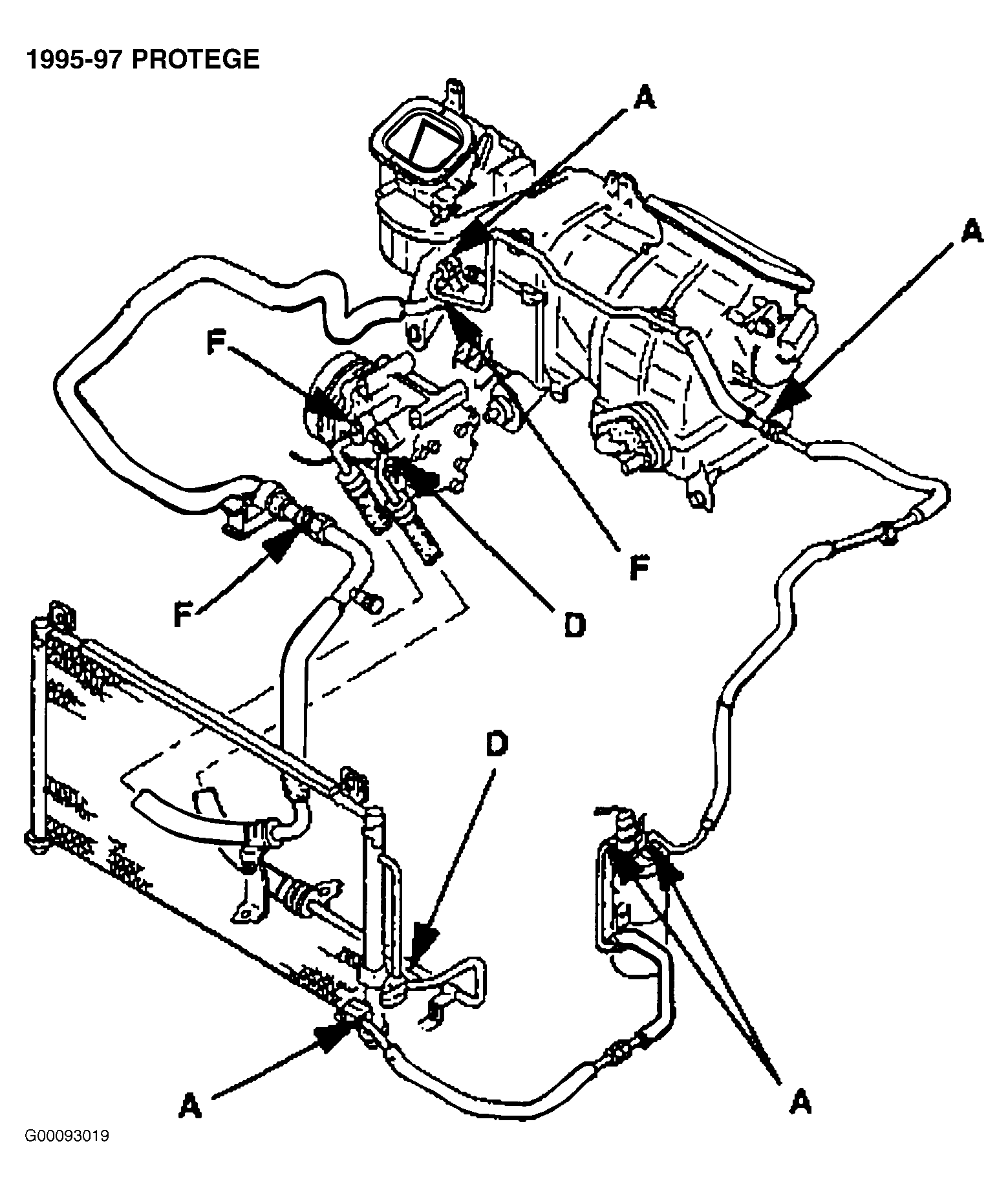

Fig 14: 1995-97 Protege
G00093019
1995-97 Protege

Code Pipe Size O-Ring Size IDxT Part & Kit Numbers Qty
A 8mm 6.9x1.76 LB51-61-J1X 5
B 5/16in 6.8x1.5 LB52-61-J1X ---
C 3/8in 7.65x1.78 LB53-61-J1X ---
D 12mm 10.8x1.78 LB54-61-J1X 2
E 12mm axial 10.8x2.4 LB55-61-J1X ---
F 16mm 14.0x1.78 LB56-61-J1X 3
G 16mm axial 13.4x2.4 LB57-61-J1X ---
H 3/8in 7.36x1.8 9XG0-19-9300 ---
J 1/2in 10.16x1.85 9XG0-19-9201 ---
K 5/8in 12.95x1.85 9XG0-19-9400 ---
L 5/8in 6.07x1.78 C003-61-J17 ---
M 16mm axial 14x1.78 C004-61-J17 ---
N 5/8in 10.8x1.78 C005-61-J17 ---
P 12mm 10.8x2.4 W257-61-J17 ---
Q 5/16in 6.7x1.8 W326-61-J17 ---
R 16mm 13.4x2.4 W329-61-J17 ---
Note: Part numbers ending with "J1X" are delivered in quantities of ten (10).
Fig 15: 1995-97 Millenia
G00093020
1995-97 Millenia

Code Pipe Size O-Ring Size IDxT Part & Kit Numbers Qty
A 8mm 6.9x1.76 LB51-61-J1X ---
B 5/16in 6.8x1.5 LB52-61-J1X ---
C 3/8in 7.65x1.78 LB53-61-J1X ---
D 12mm 10.8x1.78 LB54-61-J1X ---
E 12mm axial 10.8x2.4 LB55-61-J1X ---
F 16mm 14.0x1.78 LB56-61-J1X ---
G 16mm axial 13.4x2.4 LB57-61-J1X 3
H 3/8in 7.36x1.8 9XG0-19-9300 ---
J 1/2in 10.16x1.85 9XG0-19-9201 ---
K 5/8in 12.95x1.85 9XG0-19-9400 3
L 5/8in 6.07x1.78 C003-61-J17 4
M 16mm axial 14x1.78 C004-61-J17 ---
N 5/8in 10.8x1.78 C005-61-J17 ---
P 12mm 10.8x2.4 W257-61-J17 ---
Q 5/16in 6.7x1.8 W326-61-J17 ---
R 16mm 13.4x2.4 W329-61-J17 ---
Note: Part numbers ending with "J1X" are delivered in quantities of ten (10).

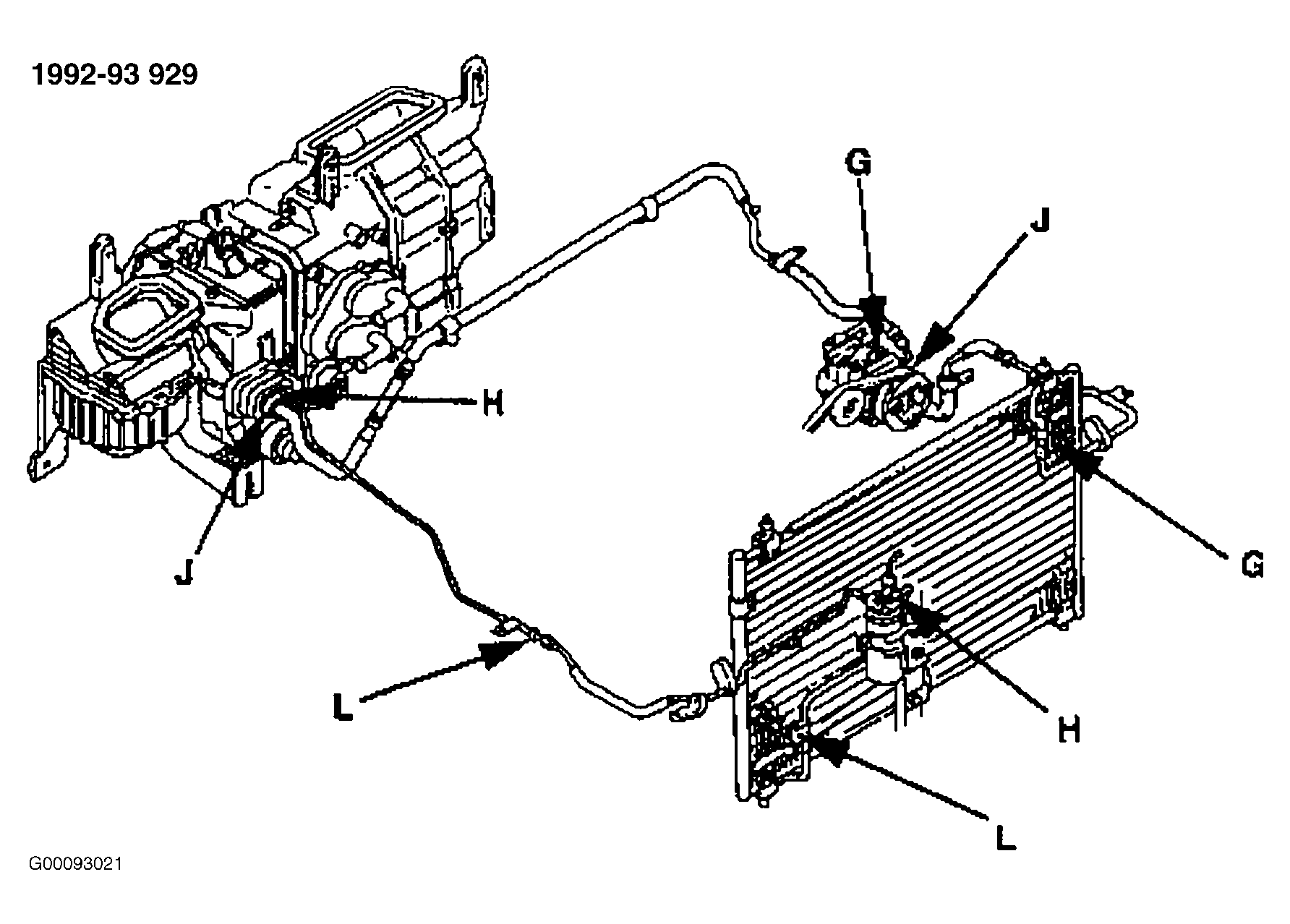

Fig 16: 1992-93 929
G00093021
1992-93 929

Code Pipe Size O-Ring Size IDxT Part & Kit Numbers Qty
A 8mm 6.9x1.76 LB51-61-J1X ---
B 5/16in 6.8x1.5 LB52-61-J1X ---
C 3/8in 7.65x1.78 LB53-61-J1X ---
D 12mm 10.8x1.78 LB54-61-J1X ---
E 12mm axial 10.8x2.4 LB55-61-J1X ---
F 16mm 14.0x1.78 LB56-61-J1X ---
G 16mm axial 13.4x2.4 LB57-61-J1X 2
H 3/8in 7.36x1.8 9XG0-19-9300 2
J 1/2in 10.16x1.85 9XG0-19-9201 2
K 5/8in 12.95x1.85 9XG0-19-9400 ---
L 5/8in 6.07x1.78 C003-61-J17 2
M 16mm axial 14x1.78 C004-61-J17 ---
N 5/8in 10.8x1.78 C005-61-J17 ---
P 12mm 10.8x2.4 W257-61-J17 ---
Q 5/16in 6.7x1.8 W326-61-J17 ---
R 16mm 13.4x2.4 W329-61-J17 ---
Note: Part numbers ending with "J1X" are delivered in quantities of ten (10).

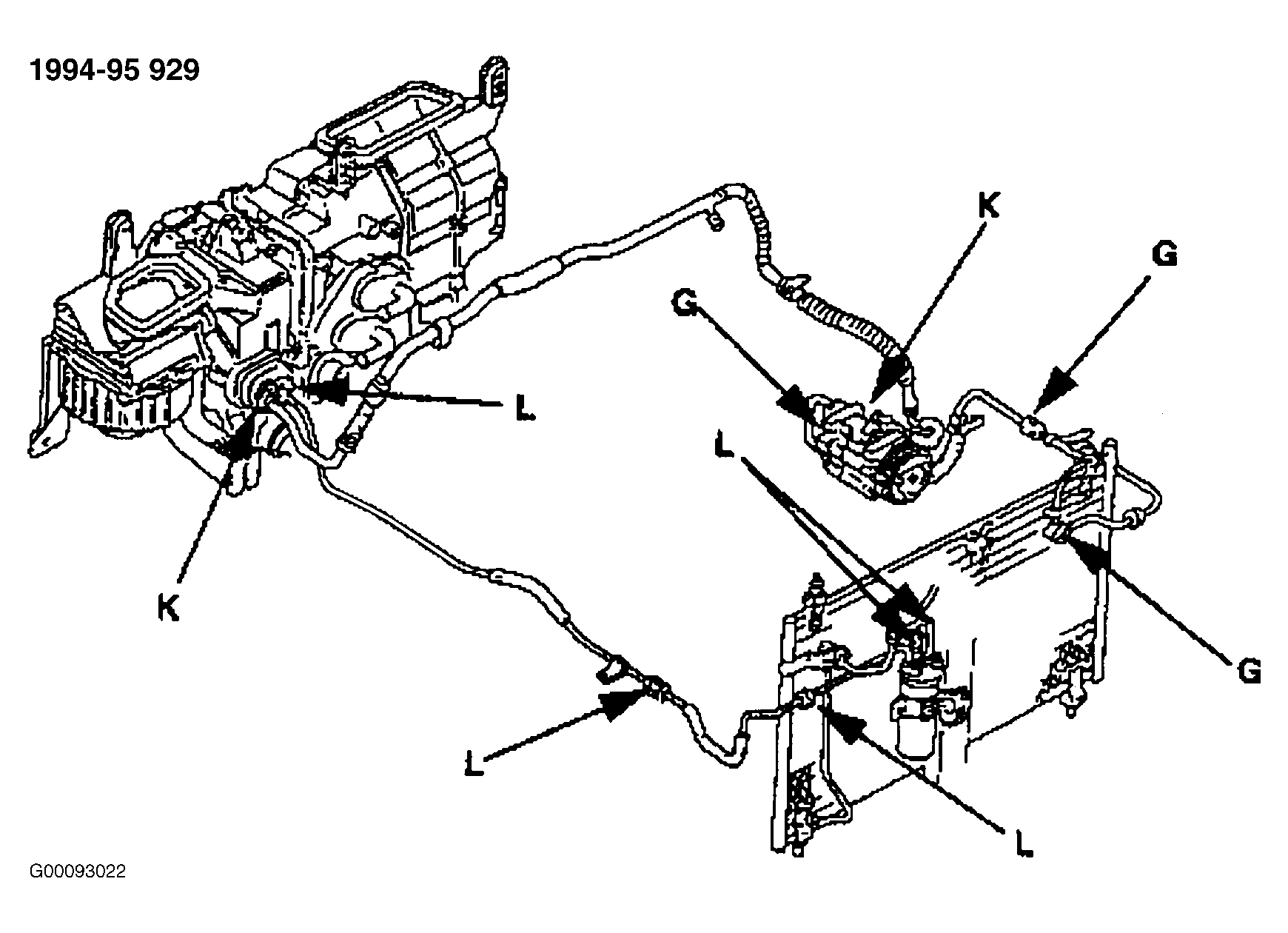

Fig 17: 1994-95 929
G00093022
1994-95 929

Code Pipe Size O-Ring Size IDxT Part & Kit Numbers Qty
A 8mm 6.9x1.76 LB51-61-J1X ---
B 5/16in 6.8x1.5 LB52-61-J1X ---
C 3/8in 7.65x1.78 LB53-61-J1X ---
D 12mm 10.8x1.78 LB54-61-J1X ---
E 12mm axial 10.8x2.4 LB55-61-J1X ---
F 16mm 14.0x1.78 LB56-61-J1X ---
G 16mm axial 13.4x2.4 LB57-61-J1X 3
H 3/8in 7.36x1.8 9XG0-19-9300 ---
J 1/2in 10.16x1.85 9XG0-19-9201 ---
K 5/8in 12.95x1.85 9XG0-19-9400 2
L 5/8in 6.07x1.78 C003-61-J17 5
M 16mm axial 14x1.78 C004-61-J17 ---
N 5/8in 10.8x1.78 C005-61-J17 ---
P 12mm 10.8x2.4 W257-61-J17 ---
Q 5/16in 6.7x1.8 W326-61-J17 ---
R 16mm 13.4x2.4 W329-61-J17 ---
Note: Part numbers ending with "J1X" are delivered in quantities of ten (10).
Fig 18: 1989-93 MPV (Dual)
G00093023
1989-93 MPV (Dual)

Code Pipe Size O-Ring Size IDxT Part & Kit Numbers Qty
A 8mm 6.9x1.76 LB51-61-J1X 7
B 5/16in 6.8x1.5 LB52-61-J1X ---
C 3/8in 7.65x1.78 LB53-61-J1X 3
D 12mm 10.8x1.78 LB54-61-J1X ---
E 12mm axial 10.8x2.4 LB55-61-J1X 6
F 16mm 14.0x1.78 LB56-61-J1X ---
G 16mm axial 13.4x2.4 LB57-61-J1X ---
H 3/8in 7.36x1.8 9XG0-19-9300 ---
J 1/2in 10.16x1.85 9XG0-19-9201 ---
K 5/8in 12.95x1.85 9XG0-19-9400 ---
L 5/8in 6.07x1.78 C003-61-J17 ---
M 16mm axial 14x1.78 C004-61-J17 ---
N 5/8in 10.8x1.78 C005-61-J17 ---
P 12mm 10.8x2.4 W257-61-J17 ---
Q 5/16in 6.7x1.8 W326-61-J17 ---
R 16mm 13.4x2.4 W329-61-J17 ---
Note: Part numbers ending with "J1X" are delivered in quantities of ten (10).

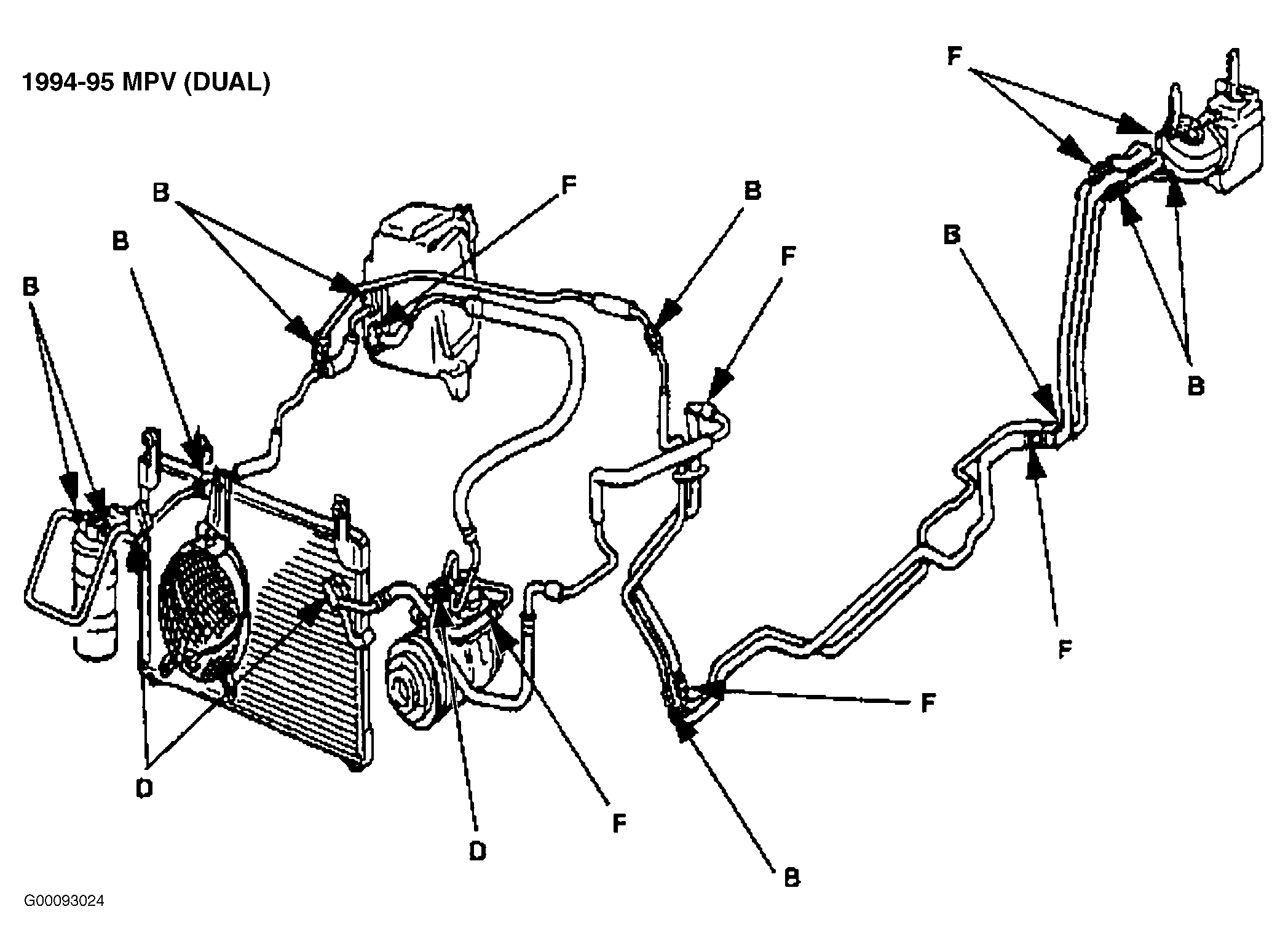

Fig 19: 1994-95 MPV (Dual)
G00093024
1994-95 MPV (Dual)

Code Pipe Size O-Ring Size IDxT Part & Kit Numbers Qty
A 8mm 6.9x1.76 LB51-61-J1X ---
B 5/16in 6.8x1.5 LB52-61-J1X 10
C 3/8in 7.65x1.78 LB53-61-J1X ---
D 12mm 10.8x1.78 LB54-61-J1X 3
E 12mm axial 10.8x2.4 LB55-61-J1X ---
F 16mm 14.0x1.78 LB56-61-J1X 7
G 16mm axial 13.4x2.4 LB57-61-J1X ---
H 3/8in 7.36x1.8 9XG0-19-9300 ---
J 1/2in 10.16x1.85 9XG0-19-9201 ---
K 5/8in 12.95x1.85 9XG0-19-9400 ---
L 5/8in 6.07x1.78 C003-61-J17 ---
M 16mm axial 14x1.78 C004-61-J17 ---
N 5/8in 10.8x1.78 C005-61-J17 ---
P 12mm 10.8x2.4 W257-61-J17 ---
Q 5/16in 6.7x1.8 W326-61-J17 ---
R 16mm 13.4x2.4 W329-61-J17 ---
Note: Part numbers ending with "J1X" are delivered in quantities of ten (10).
Fig 20: 1996-97 MPV (Dual)
G00093025
1996-97 MPV (Dual)

Code Pipe Size O-Ring Size IDxT Part & Kit Numbers Qty
A 8mm 6.9x1.76 LB51-61-J1X ---
B 5/16in 6.8x1.5 LB52-61-J1X ---
C 3/8in 7.65x1.78 LB53-61-J1X ---
D 12mm 10.8x1.78 LB54-61-J1X ---
E 12mm axial 10.8x2.4 LB55-61-J1X ---
F 16mm 14.0x1.78 LB56-61-J1X ---
G 16mm axial 13.4x2.4 LB57-61-J1X ---
H 3/8in 7.36x1.8 9XG0-19-9300 ---
J 1/2in 10.16x1.85 9XG0-19-9201 ---
K 5/8in 12.95x1.85 9XG0-19-9400 ---
L 5/8in 6.07x1.78 C003-61-J17 ---
M 16mm axial 14x1.78 C004-61-J17 ---
N 5/8in 10.8x1.78 C005-61-J17 ---
P 12mm 10.8x2.4 W257-61-J17 3
Q 5/16in 6.7x1.8 W326-61-J17 10
R 16mm 13.4x2.4 W329-61-J17 5
Note: Part numbers ending with "J1X" are delivered in quantities of ten (10).
scientia non olet · About LEMON Manuals
