| Counterweight Large Nut (A/T) |
290-362 (392-490) |
| Eccentric Shaft Pulley Bolt |
180-200 (240-270) |
| Exhaust Manifold Nut |
23-34 (32-46) |
| Flexplate Bolt (A/T) |
32-45 (44-61) |
| Flywheel Large Nut (M/T) |
290-362 (392-490) |

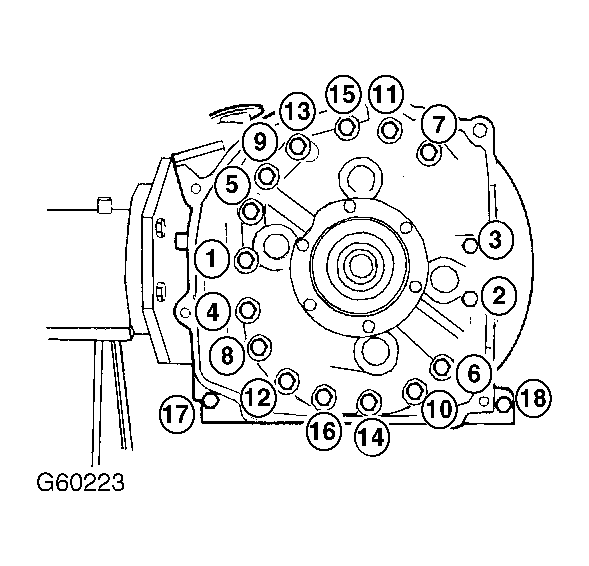

| Front Housing/Cover Bolt |
12-17 (16-23) |
| Intake Manifold Bolt |
14-19 (19-25) |
| Engine Mount Nut |
34-49 (46-67) |
| Oil Inlet Pipe Bolt (Turbo) |
14-17 (18-22) |
| Metering Oil Nozzle-To-Housing |
12-17 (16-23) |
| Oil Pressure Control Valve Plug |
29-36 (39-49) |
| Oil Pump Sprocket Nut |
23-34 (32-46) |
| Tension Bolt |
24-29 (32-39) |
| Rear Stationary Gear Bolt |
12-17 (16-23) |
| Engine Mount-To-Oil Pan |
55-69 (75-93) |
| Spark Plug |
10-13 (13-18) |
| Thrust Plate Bolt |
12-17 (16-23) |
| Turbo Mount Nut |
|
| Water Pump Nut |
13-19 (18-26) |
| INCH Lbs. (N.m) |
| EGR Valve |
69-95 (7.8-10.7) |
| Metering Oil Pump-To-Housing Bolt |
69-95 (7.8-10.7) |
| Oil Pan Bolt |
79-104 (8.9-11.7) |
| Oil Pump Housing-To-Front Housing Bolt |
61-87 (6.9-9.8) |
| Oil Strainer Bolt |
79-104 (8.9-11.7) |
