Both Retractors Inoperative Using Headlight Switch

Turn on headlight switch. Measure voltage at terminal "C" of retractor relay connector. SeeFig 1 . If battery voltage is not present, repair Brown wire between headlight relay and retractor relay. If battery voltage is present, check retractor relay. See RETRACTOR RELAY TEST. If retractor relay is okay, repair Black wire between retractor relay and ground.

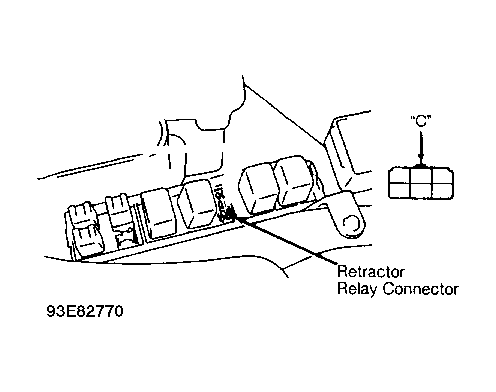

Fig 1: Retractor Relay Connector Terminal ID

Courtesy of MAZDA MOTORS CORP.
