Front Wiper Motor High Speed Test

NOTE: Refer to Fig 1 when conducting the following tests.

Connect battery voltage to wiper motor terminal "A". Connect ground to wiper motor housing. Motor should run at high speed.

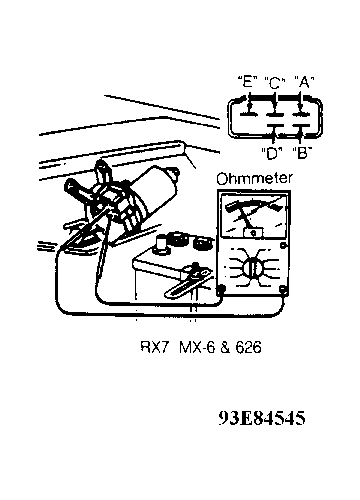

Fig 1: Wiper Motor Terminal ID

Courtesy of MAZDA MOTORS CORP.
