Engine Controls - Tests W/Codes - 2.0L
>>
Trouble Code Identification
>>
Code 67: (Coolant Fan Relay No. 1)
Code 67: (Coolant Fan Relay No. 1)

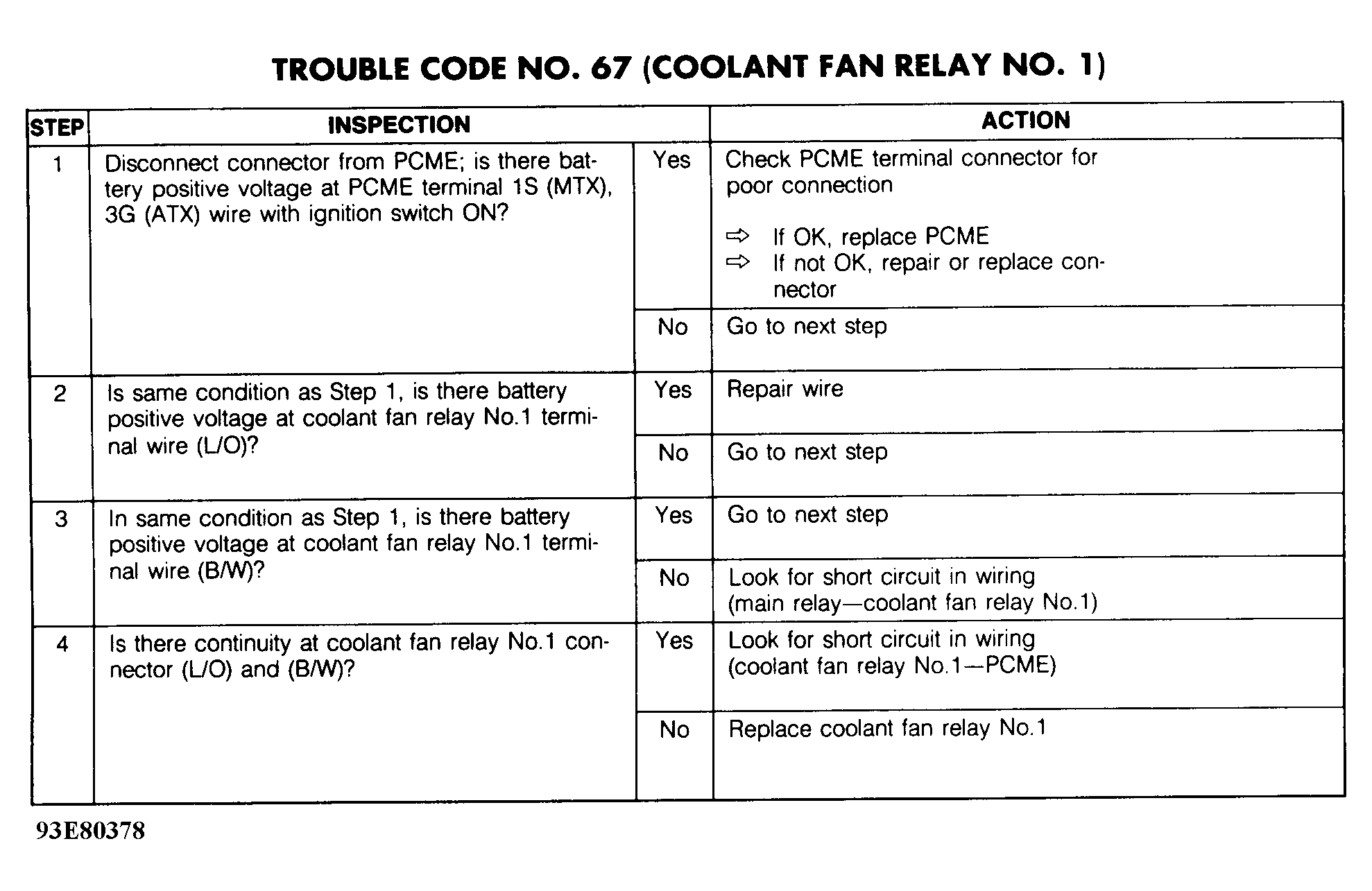

Fig 1: Trouble Code No. 67 - Diagnostic Flowchart
Courtesy of MAZDA MOTORS CORP.

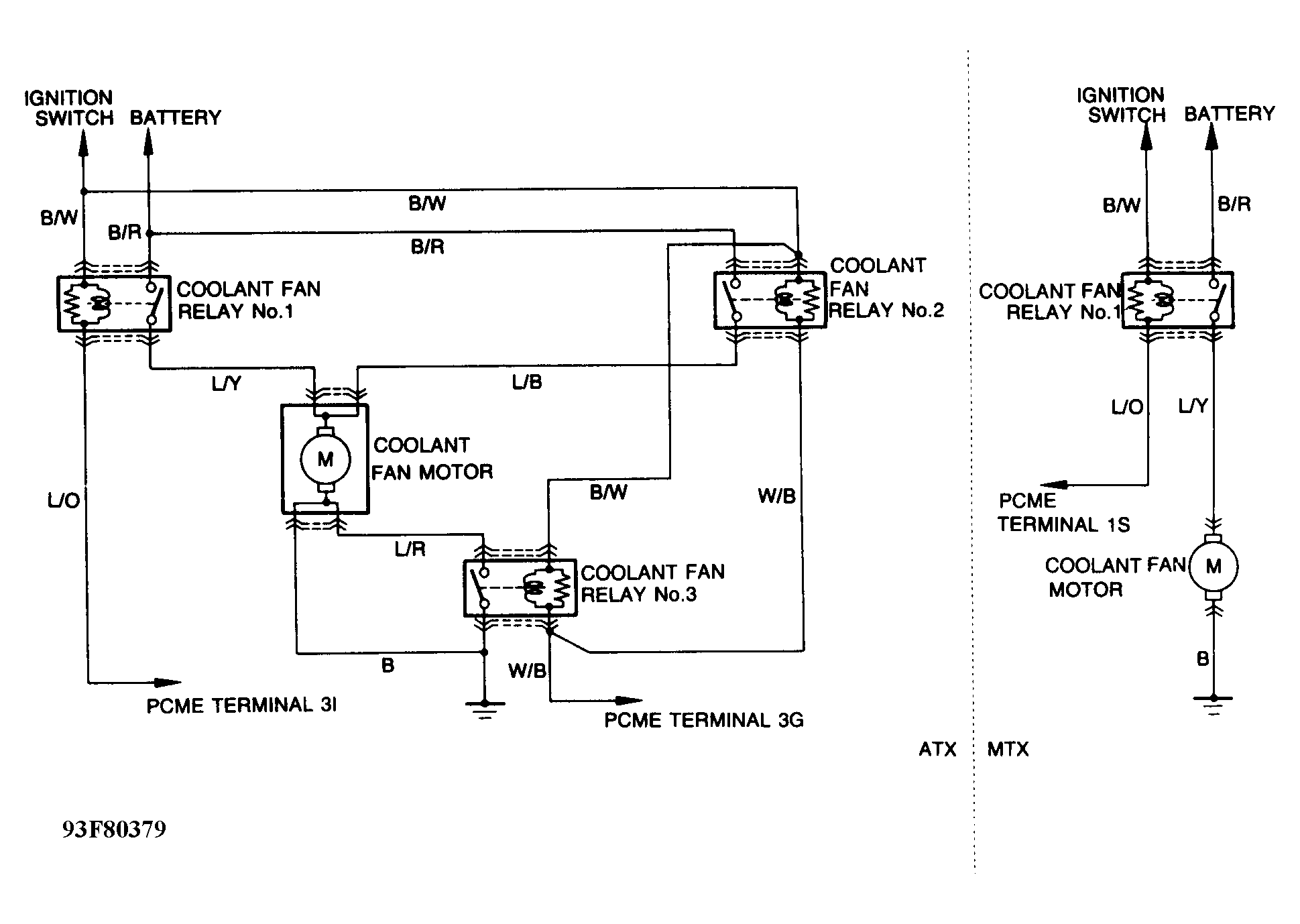

Fig 2: Trouble Code No. 67 - Schematic
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
