Code 66: (Solenoid Valve Line Pressure - ATX)

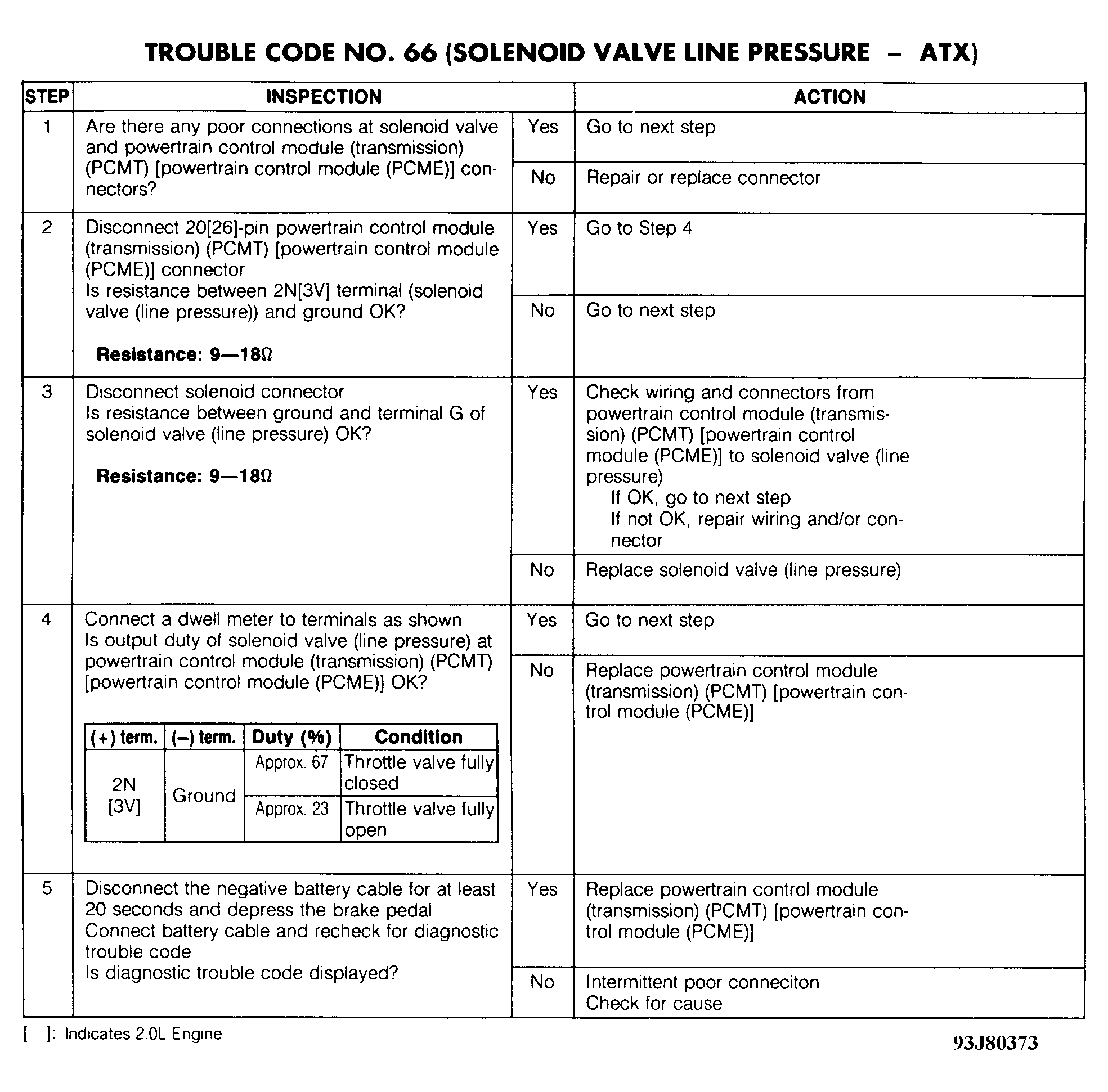

Fig 1: Trouble Code No. 66 - Diagnostic Flowchart

G93J80373

Courtesy of MAZDA MOTORS CORP.

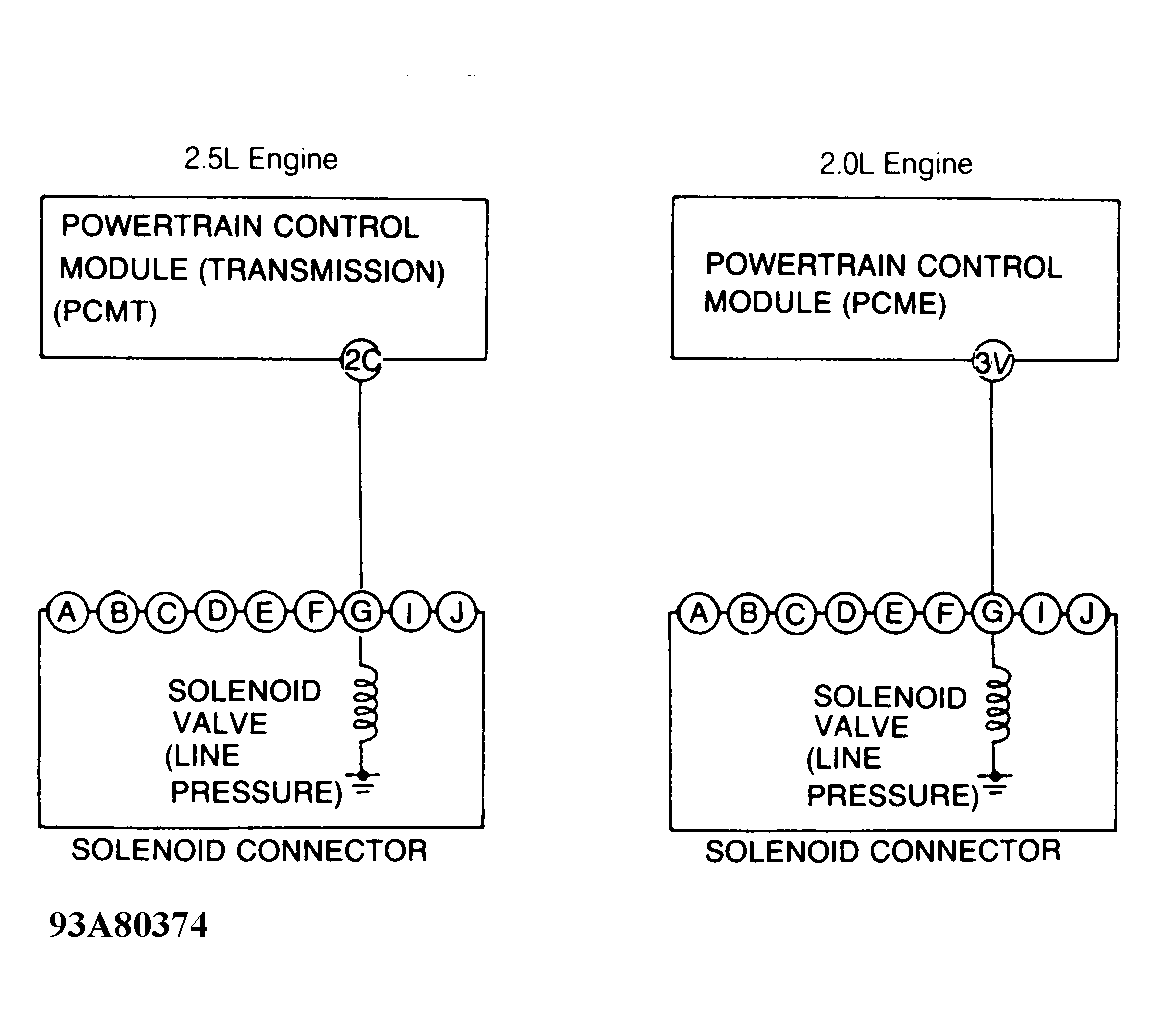

Fig 2: Trouble Code No. 66 - Schematic

G93A80374

Courtesy of MAZDA MOTORS CORP.
