Code 65: (Solenoid Valve Lock-Up - ATX)

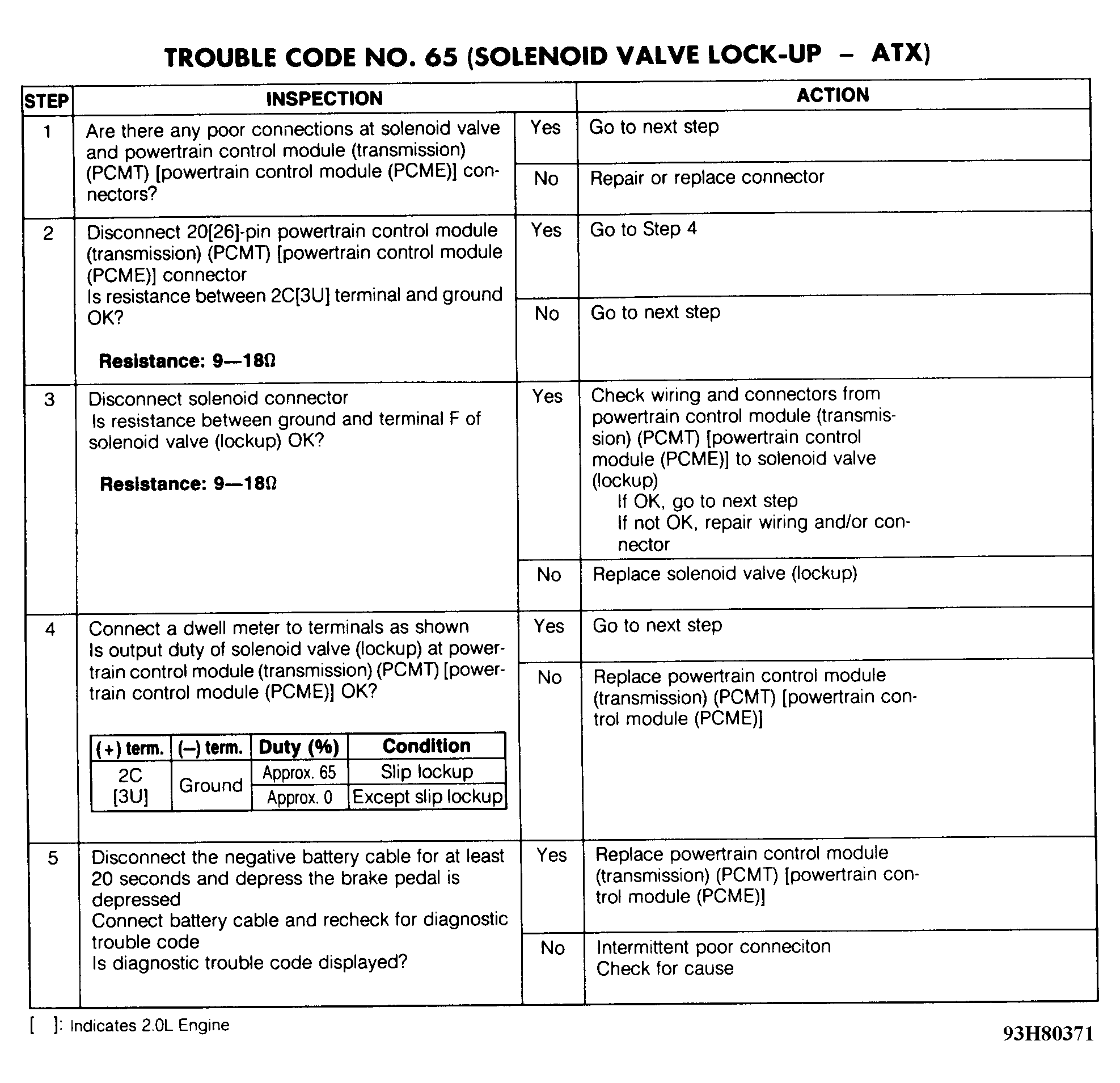

Fig 1: Trouble Code No. 65 - Diagnostic Flowchart

G93H80371

Courtesy of MAZDA MOTORS CORP.

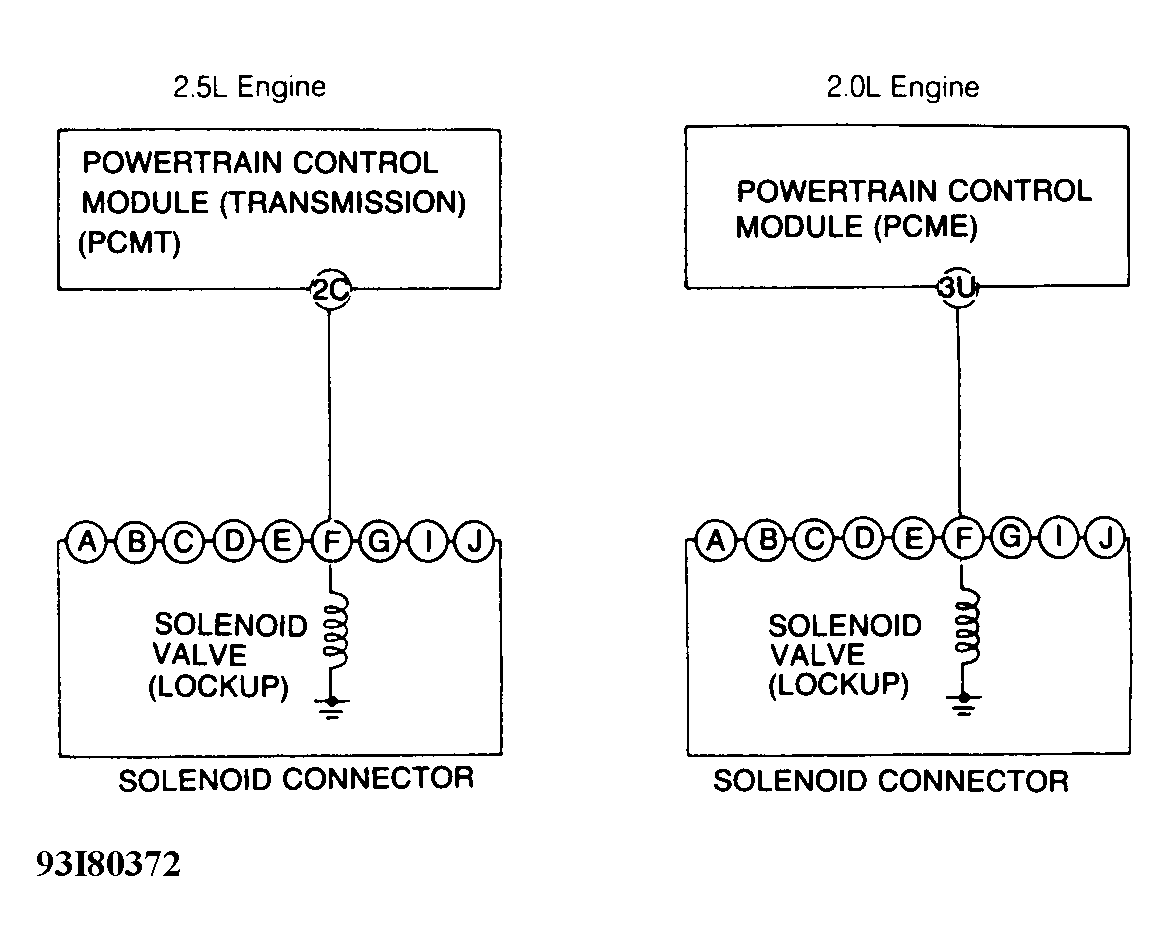

Fig 2: Trouble Code No. 65 - Schematic

G93I80372

Courtesy of MAZDA MOTORS CORP.
