Anti-Lock Brake System: Wiring Diagram

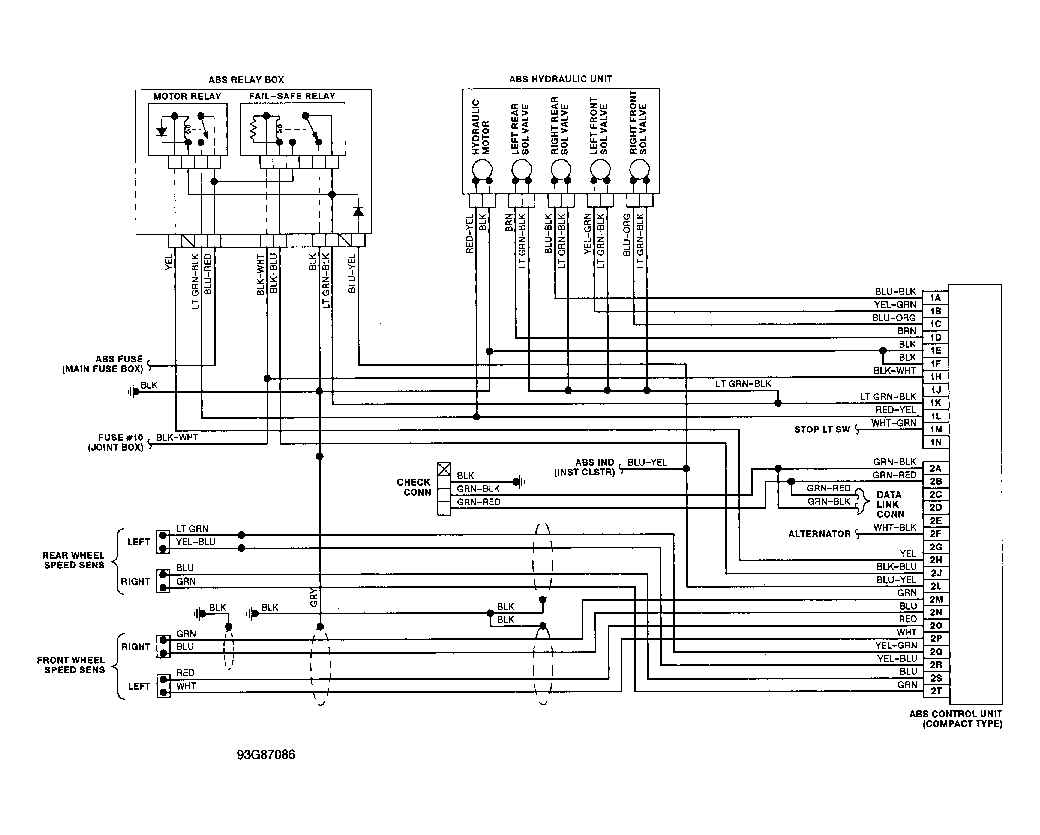

Fig 1: Anti-Lock Brake System (ABS) Wiring Diagram (MX6 & 626)

G93G87086
