Removal & Installation

CAUTION: When battery is disconnected, vehicle computer and memory systems may lose memory data. Driveability problems may exist until computer systems have completed a relearn cycle. See COMPUTER RELEARN PROCEDURES article in GENERAL INFORMATION section before disconnecting battery.
NOTE: Use appropriate illustration for removal and installation. See Fig 1 . Remove components in numerical order.

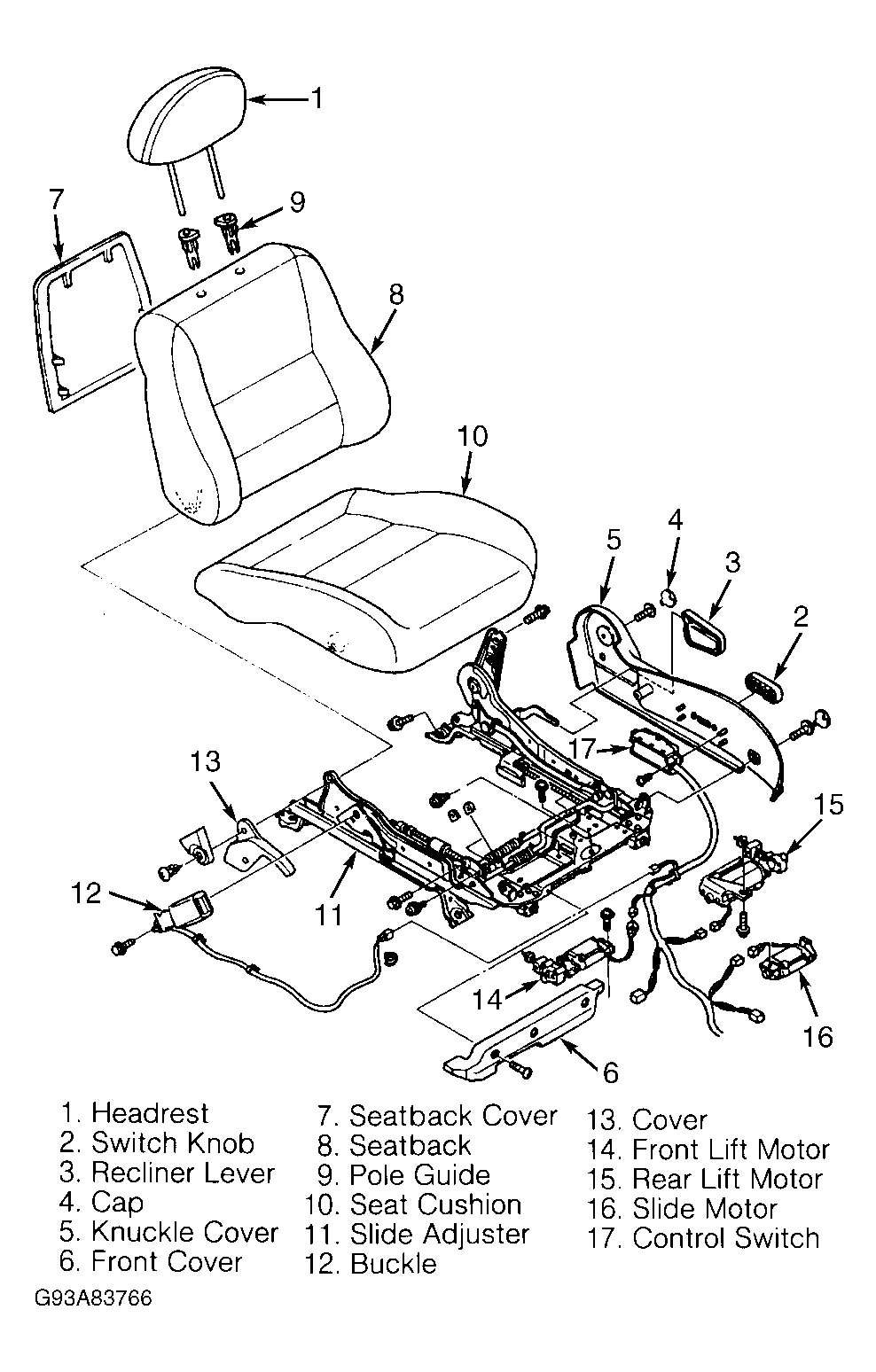

Fig 1: Exploded View Of Power Seat Assembly
G93A83766Courtesy of MAZDA MOTORS CORP.
