Code 64: (Solenoid Valve 3-2 Timing - ATX)

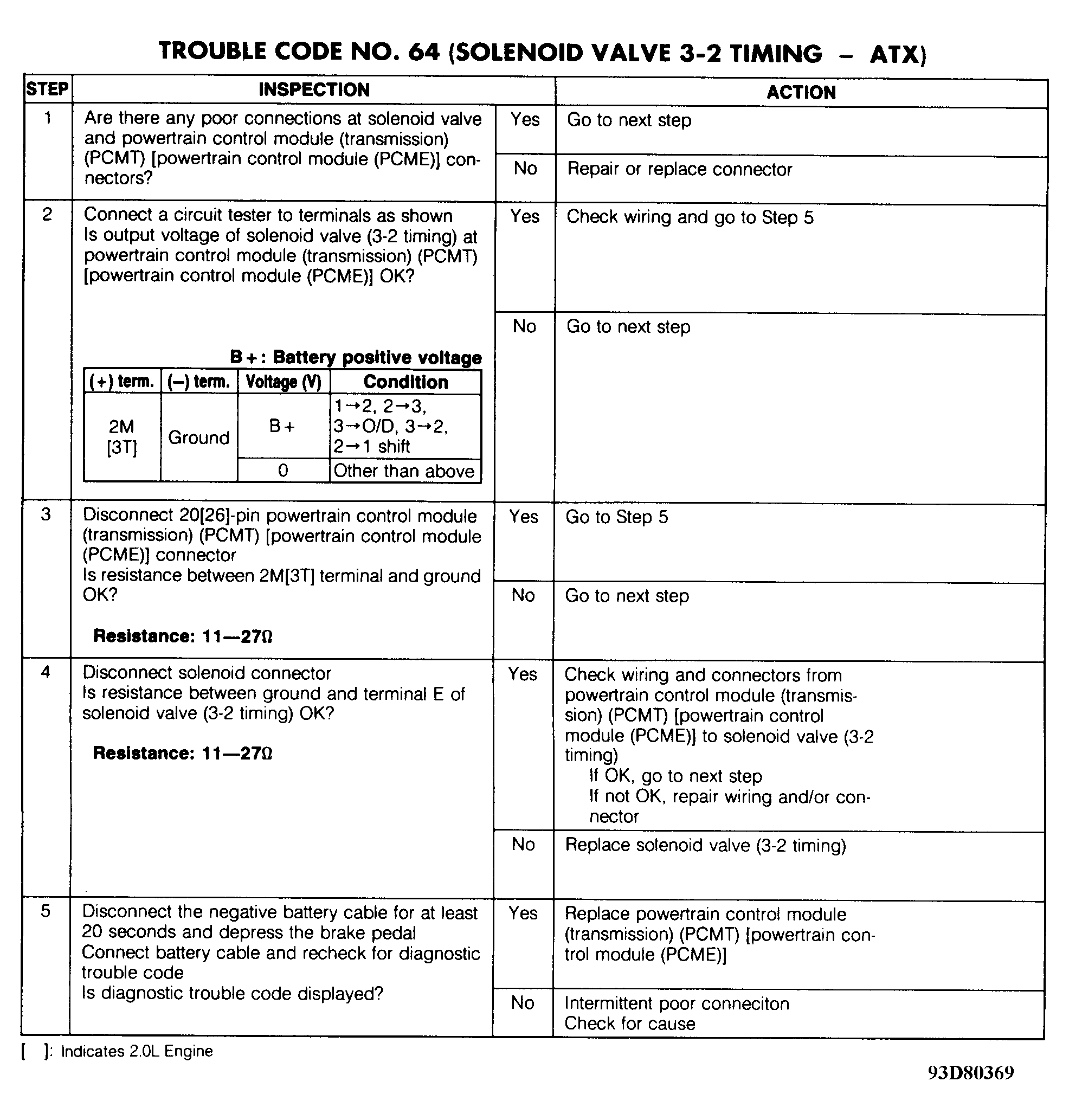

Fig 1: Trouble Code No. 64 - Diagnostic Flowchart

G93D80369

Courtesy of MAZDA MOTORS CORP.

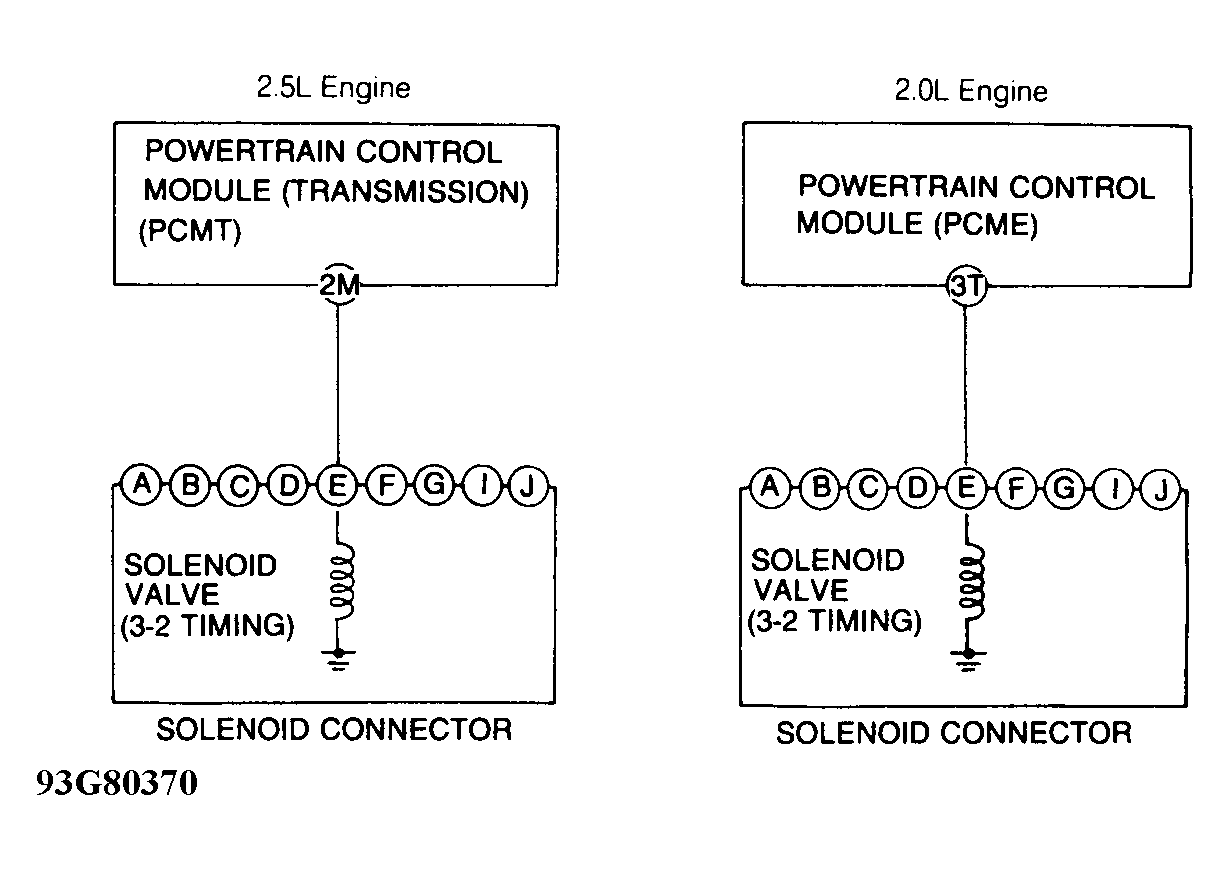

Fig 2: Trouble Code No. 64 - Schematic

G93G80370

Courtesy of MAZDA MOTORS CORP.
