Code 61: (Solenoid Valve 2-3 Shift - ATX)

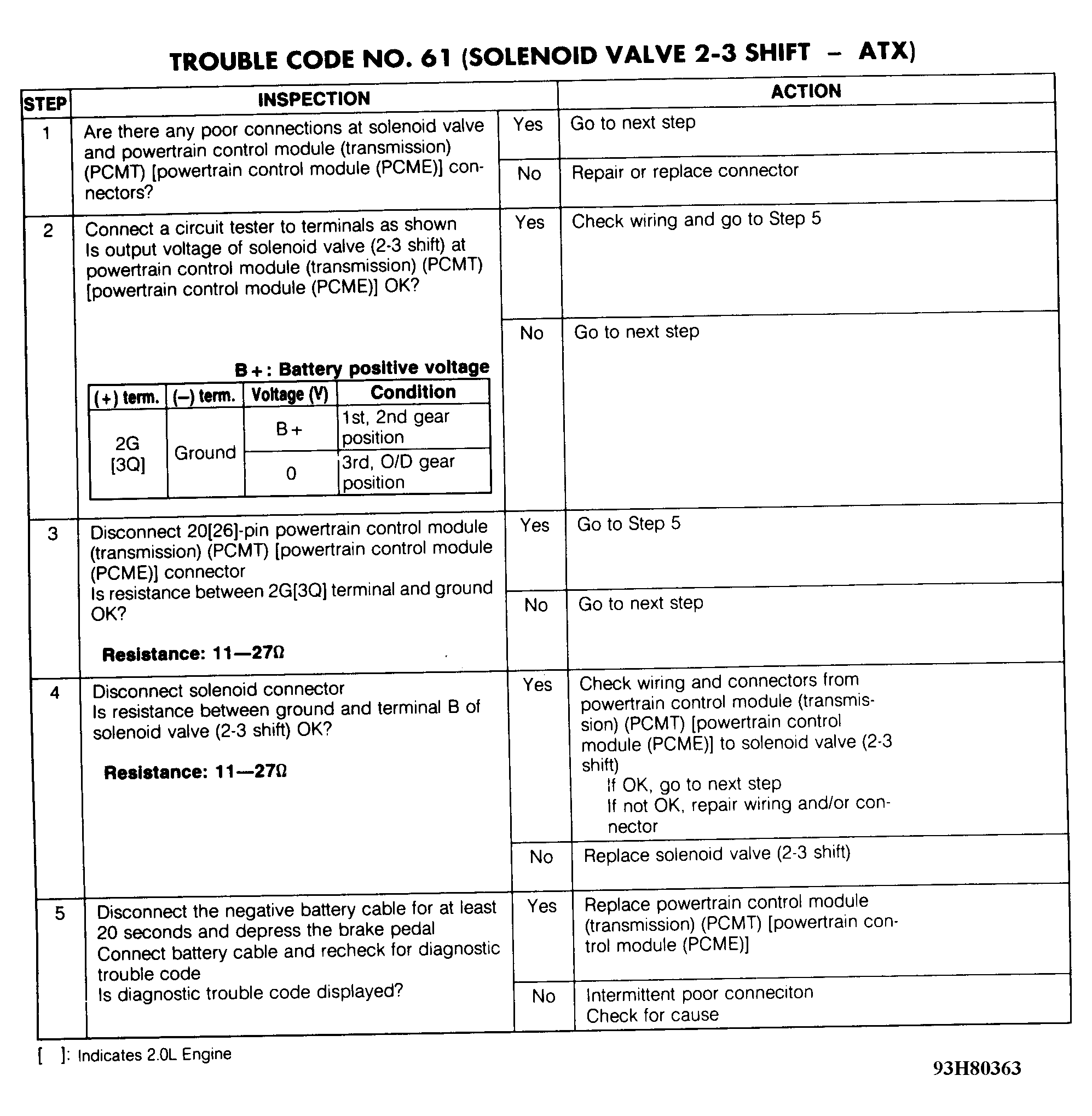

Fig 1: Trouble Code No. 61 - Diagnostic Flowchart

G93H80363

Courtesy of MAZDA MOTORS CORP.

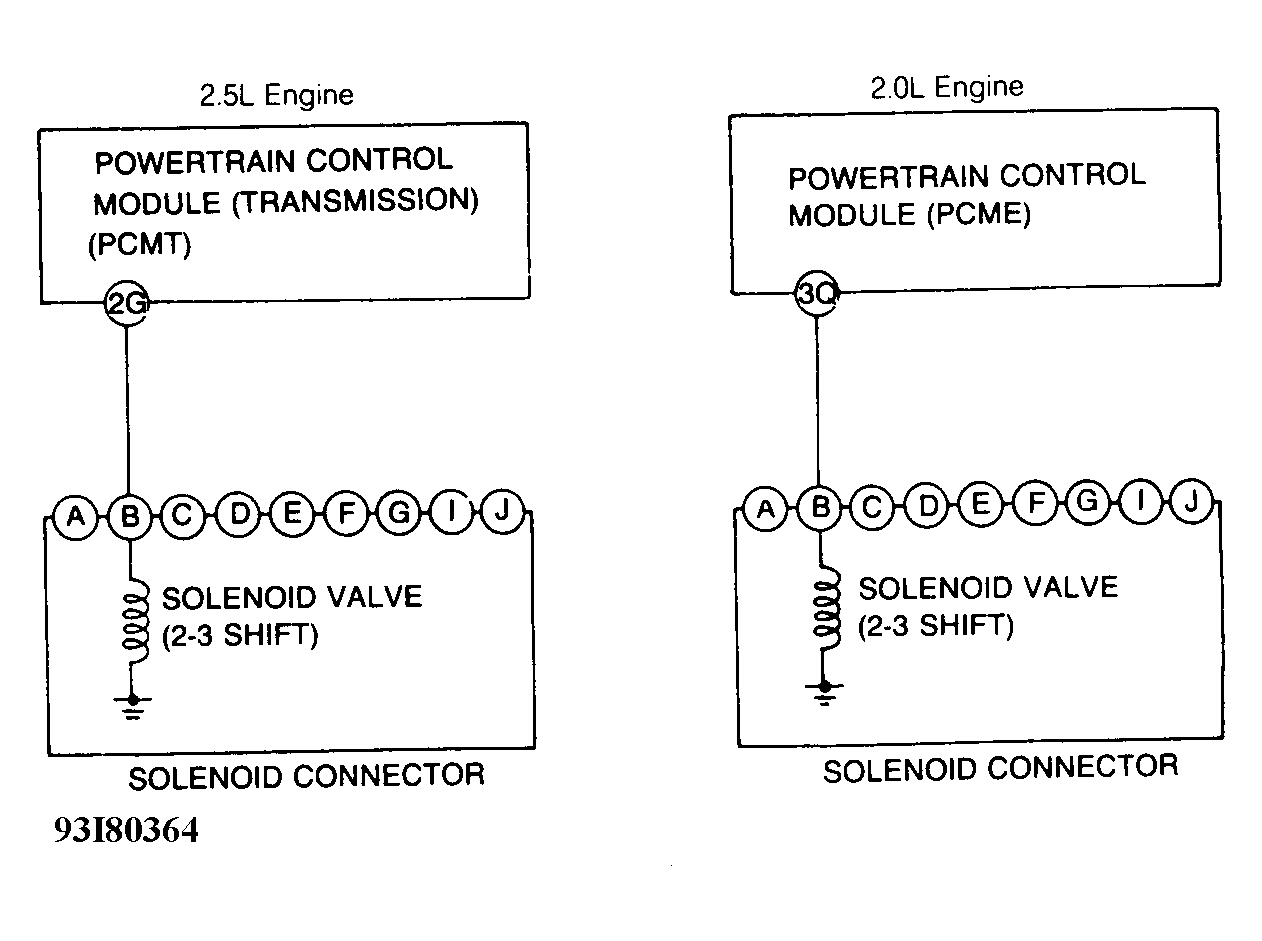

Fig 2: Trouble Code No. 61 - Schematic

G93I80364

Courtesy of MAZDA MOTORS CORP.
