Code 60: (Solenoid Valve 1-2 Shift - ATX)

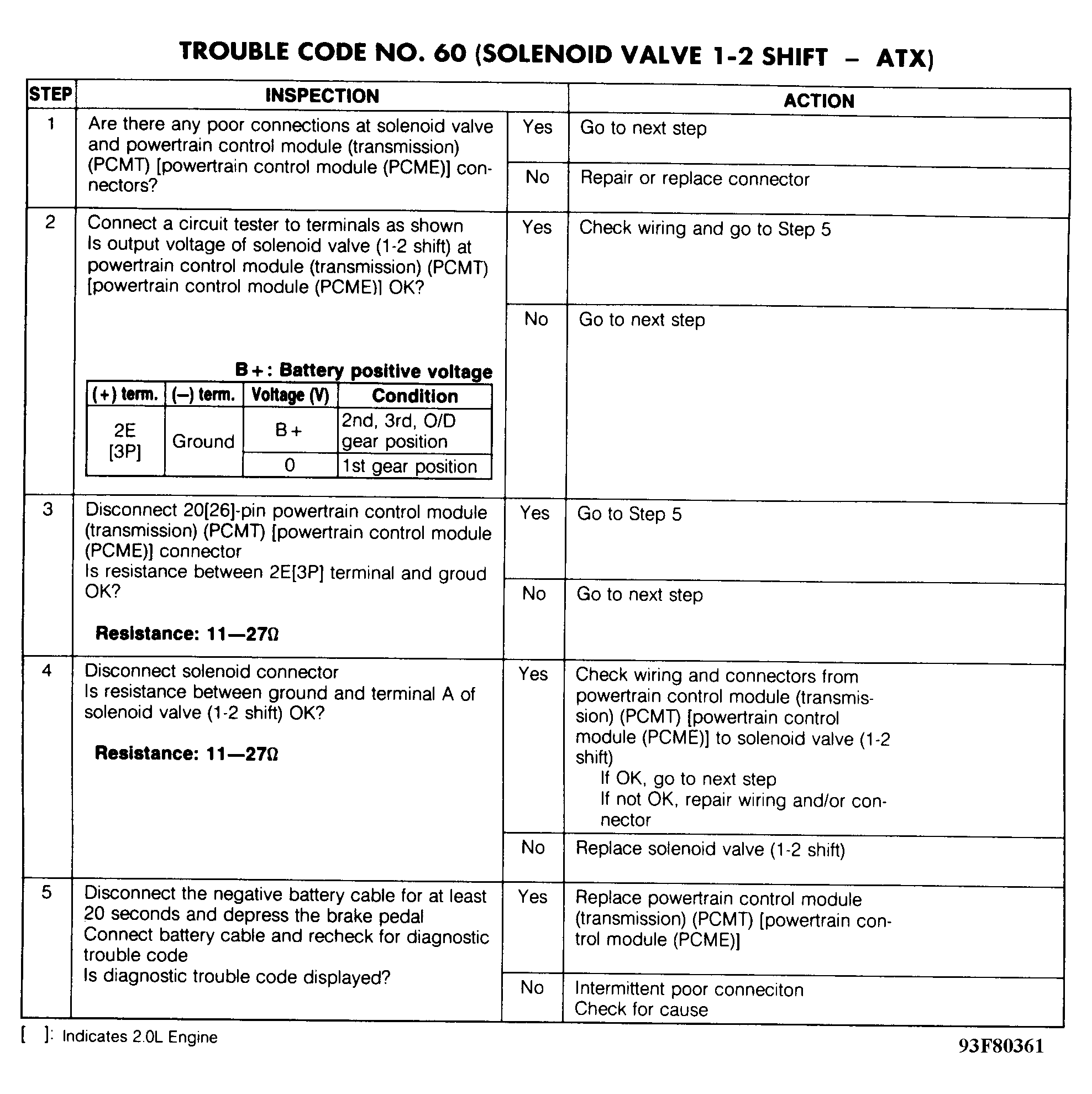

Fig 1: Trouble Code No. 60 - Diagnostic Flowchart

G93F80361

Courtesy of MAZDA MOTORS CORP.

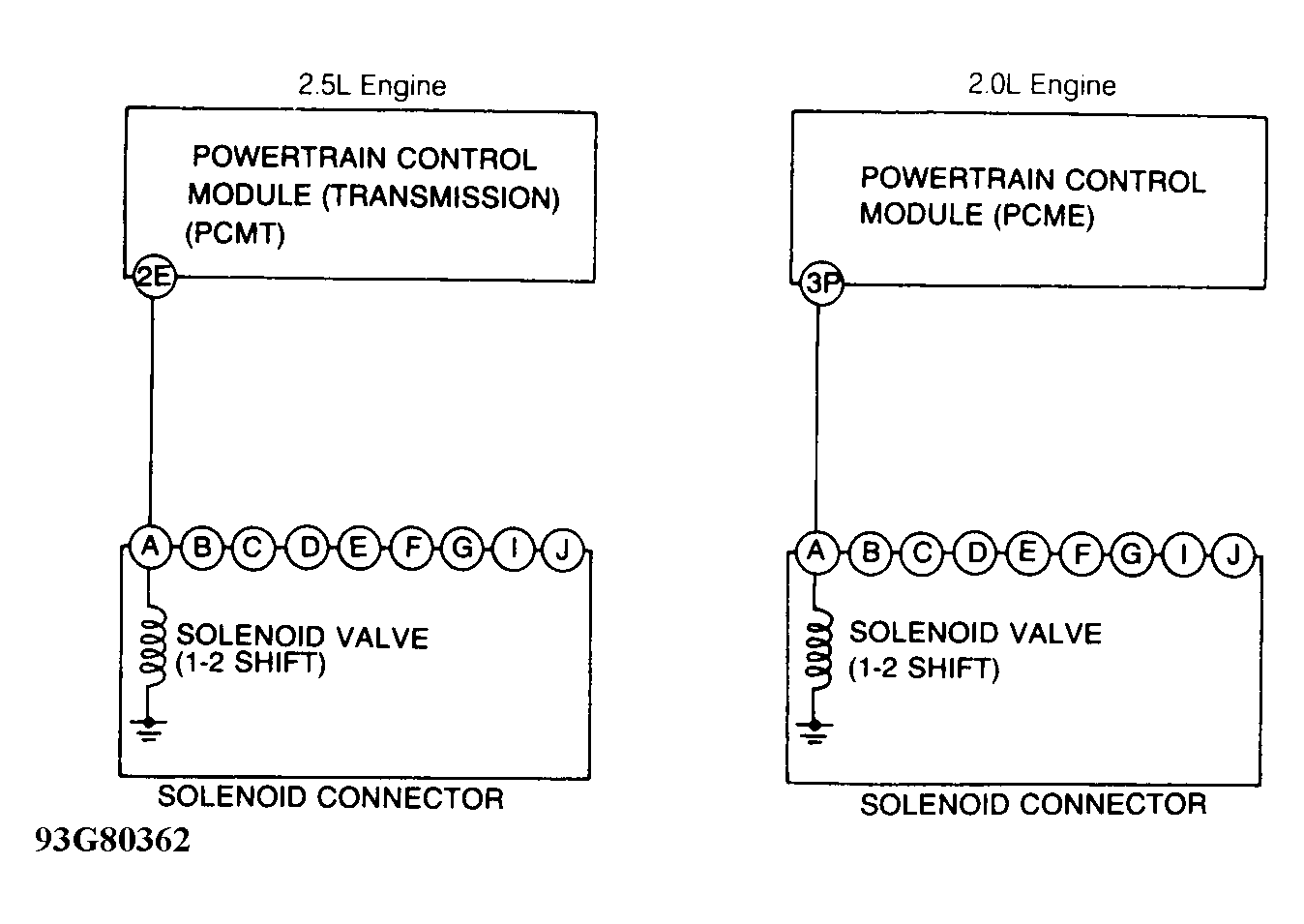

Fig 2: Trouble Code No. 60 - Schematic

G93G80362

Courtesy of MAZDA MOTORS CORP.
