Code 26: (Solenoid Valve - Purge Control)

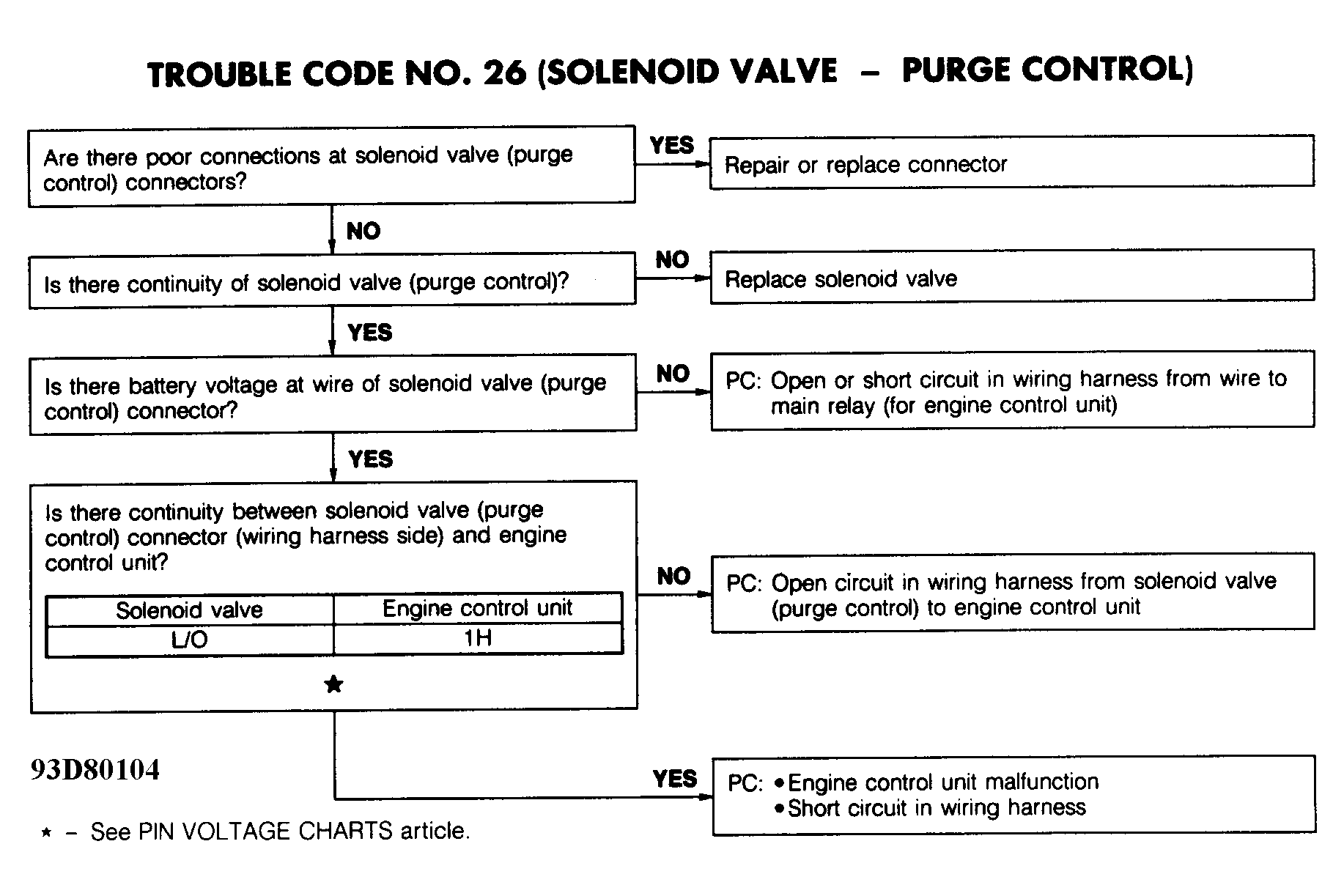

Fig 1: Trouble Code No. 26 (Solenoid Valve - Purge Control)

G93D80104

Courtesy of MAZDA MOTOR CORP.
