Code 25: (Solenoid Valve - Pressure Regulator Control)

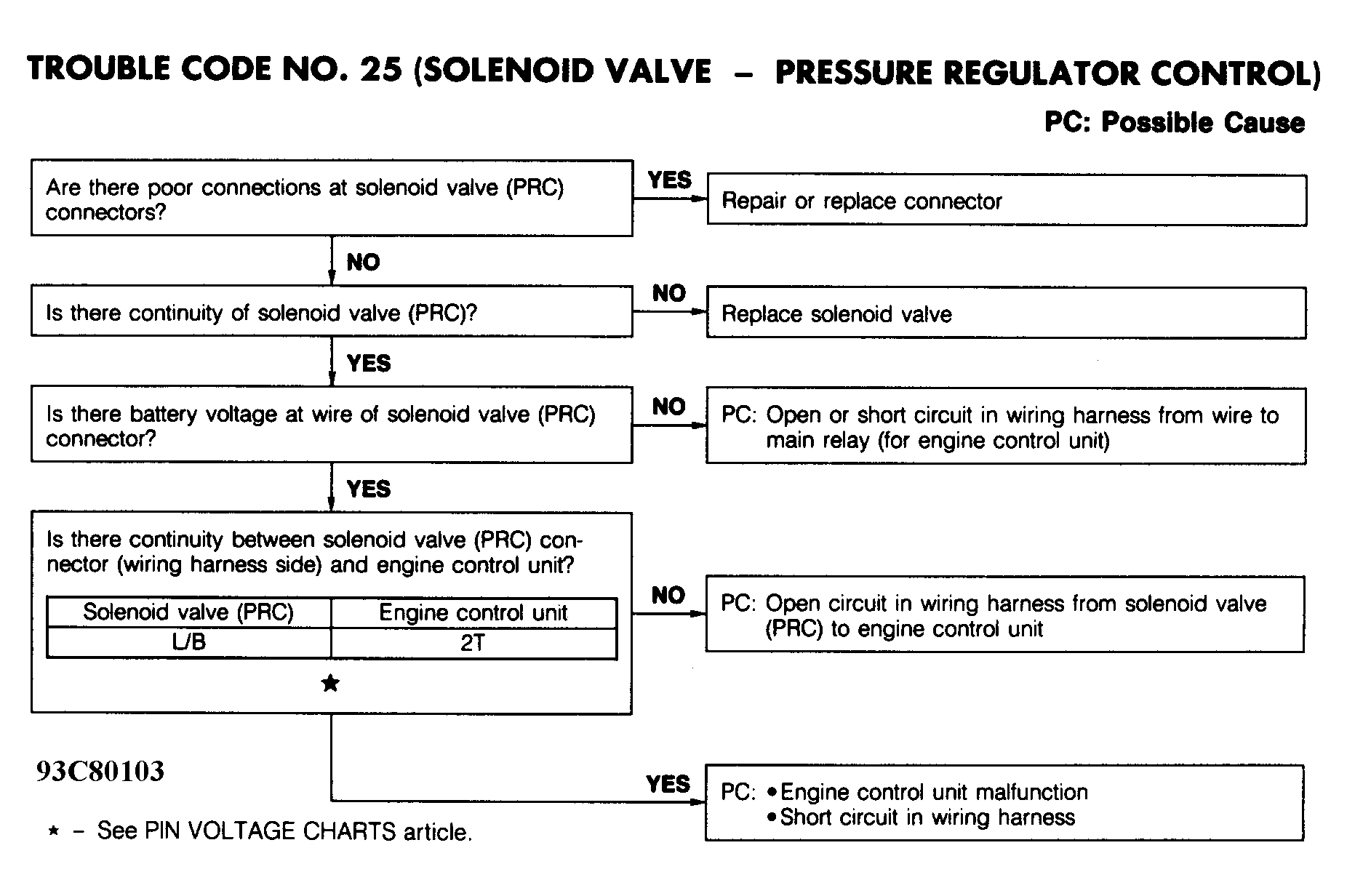

Fig 1: Trouble Code No. 25 (Solenoid Valve - Pressure Regulator Control)

G93C80103

Courtesy of MAZDA MOTOR CORP.
