Code 46: (Solenoid Valve, VRIS 2)

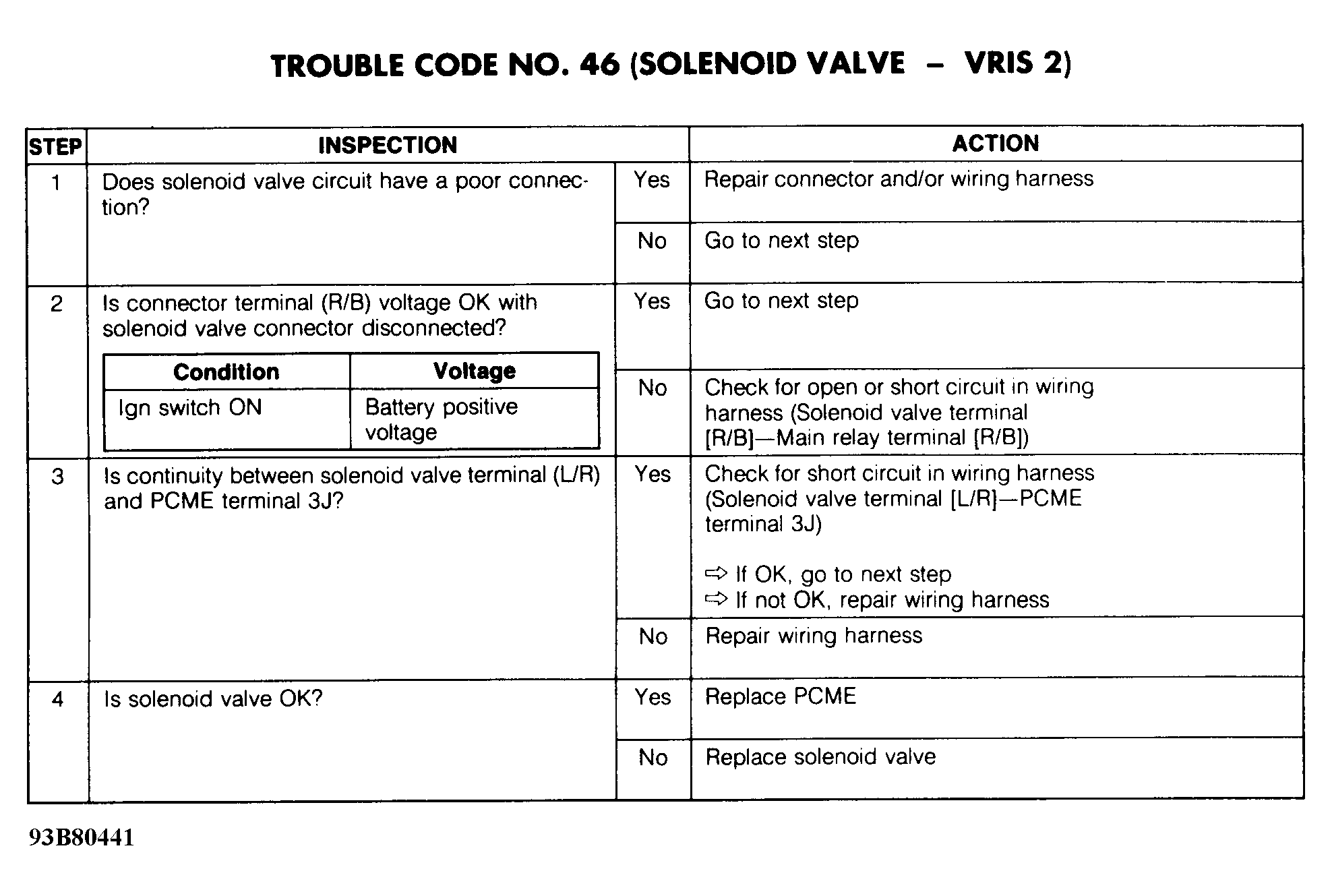

Fig 1: Trouble Code No. 46 - Diagnostic Flowchart

G93B80441

Courtesy of MAZDA MOTORS CORP.

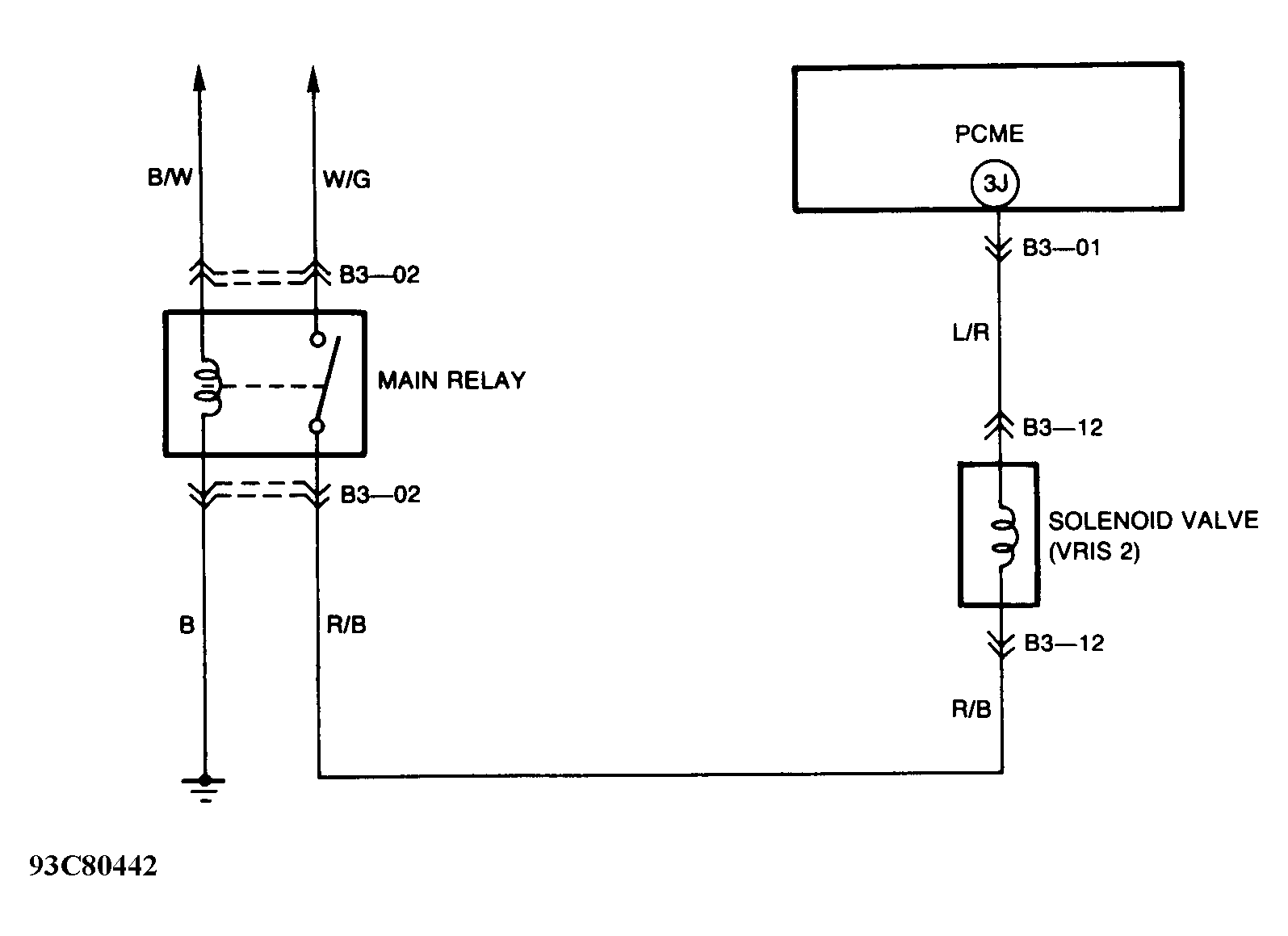

Fig 2: Trouble Code No. 46 - Schematic

G93C80442

Courtesy of MAZDA MOTORS CORP.
