Code 41: (Solenoid Valve, VRIS 1)

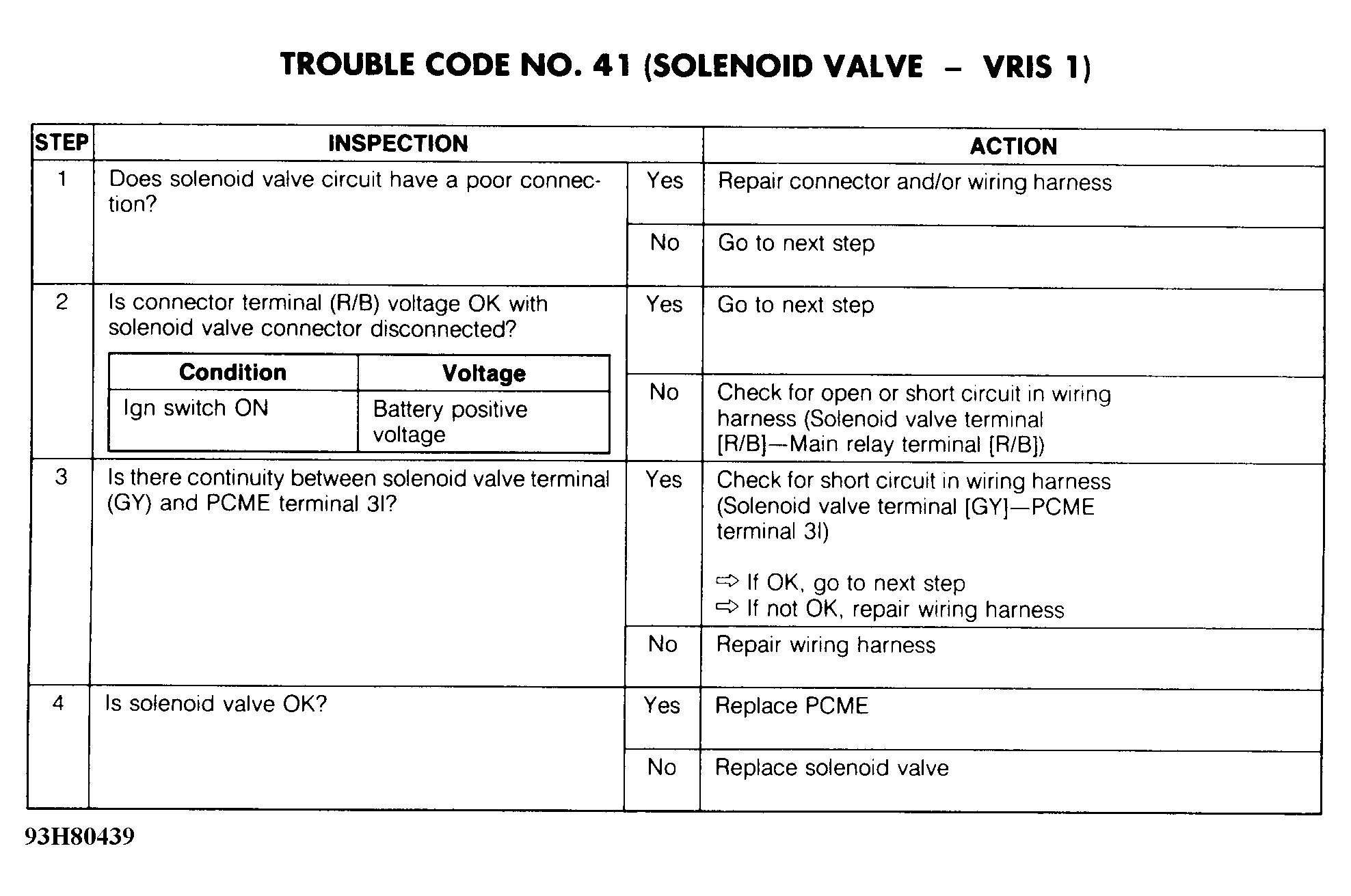

Fig 1: Trouble Code No. 41 - Diagnostic Flowchart

G93H80439

Courtesy of MAZDA MOTORS CORP.

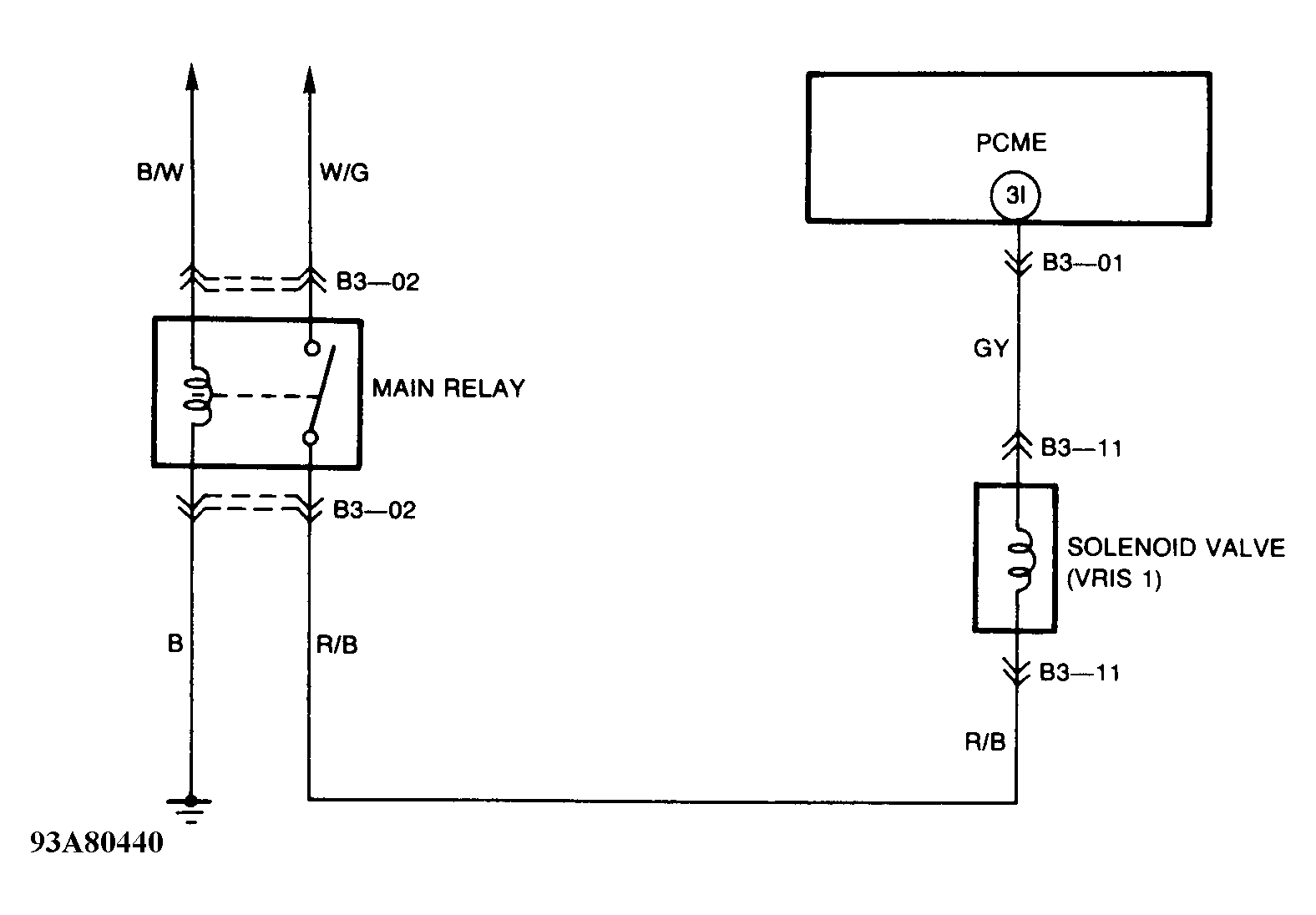

Fig 2: Trouble Code No. 41 - Schematic

G93A80440

Courtesy of MAZDA MOTORS CORP.
