Code 17: (Oxygen Sensor - Inaccurate)

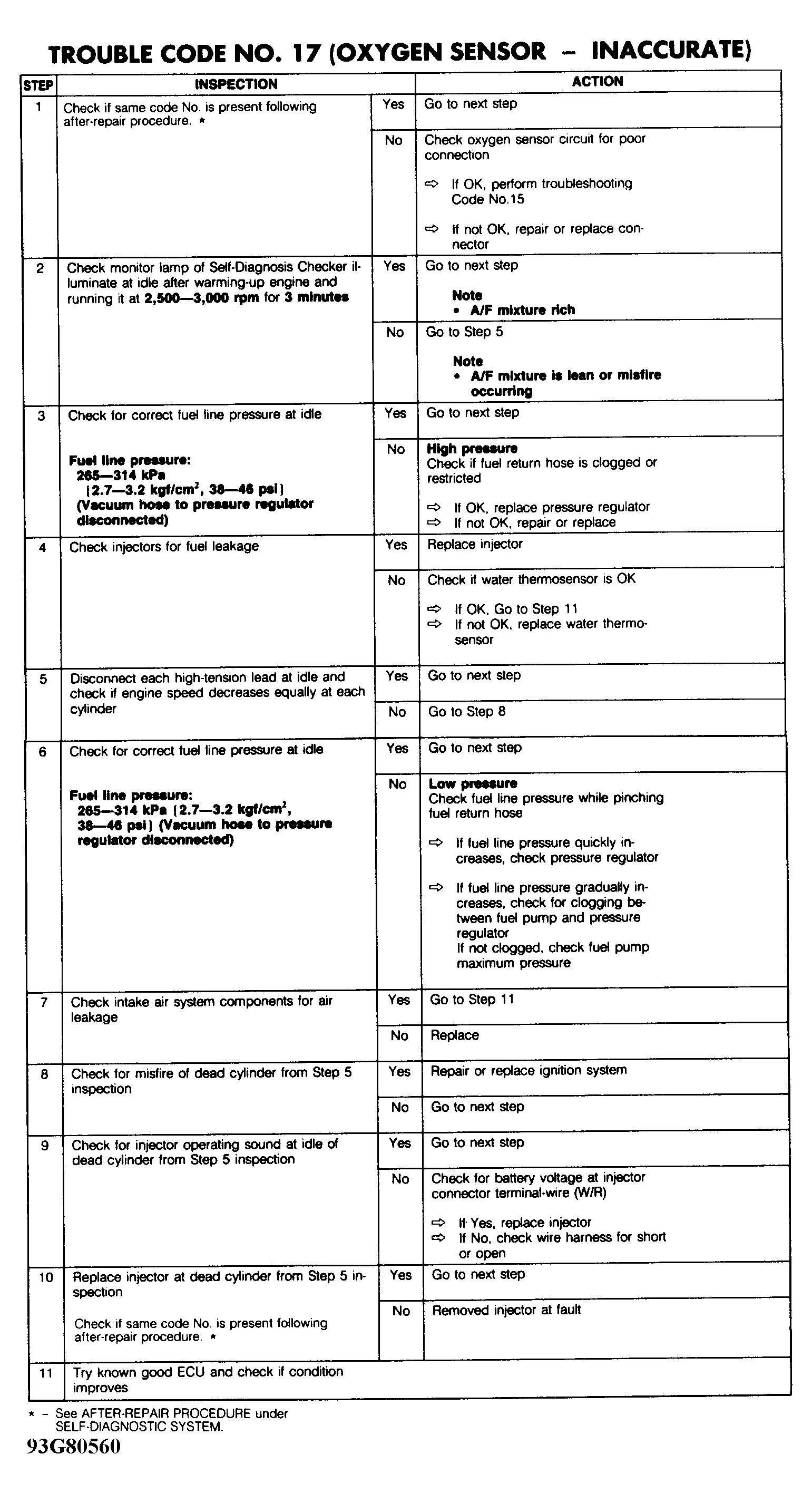

Fig 1: Trouble Code No. 17 (Diagnostic Flowchart)

G93G80560

Courtesy of MAZDA MOTORS CORP.
