Power Window Switch: Installation

Position switch into connector, and press firmly into place. Note that switch is keyed to connector and can only be installed one way. Install connector to switch housing using attaching screws. Install switch housing into armrest by hooking front of housing to armrest, and push rear of housing firmly into place.

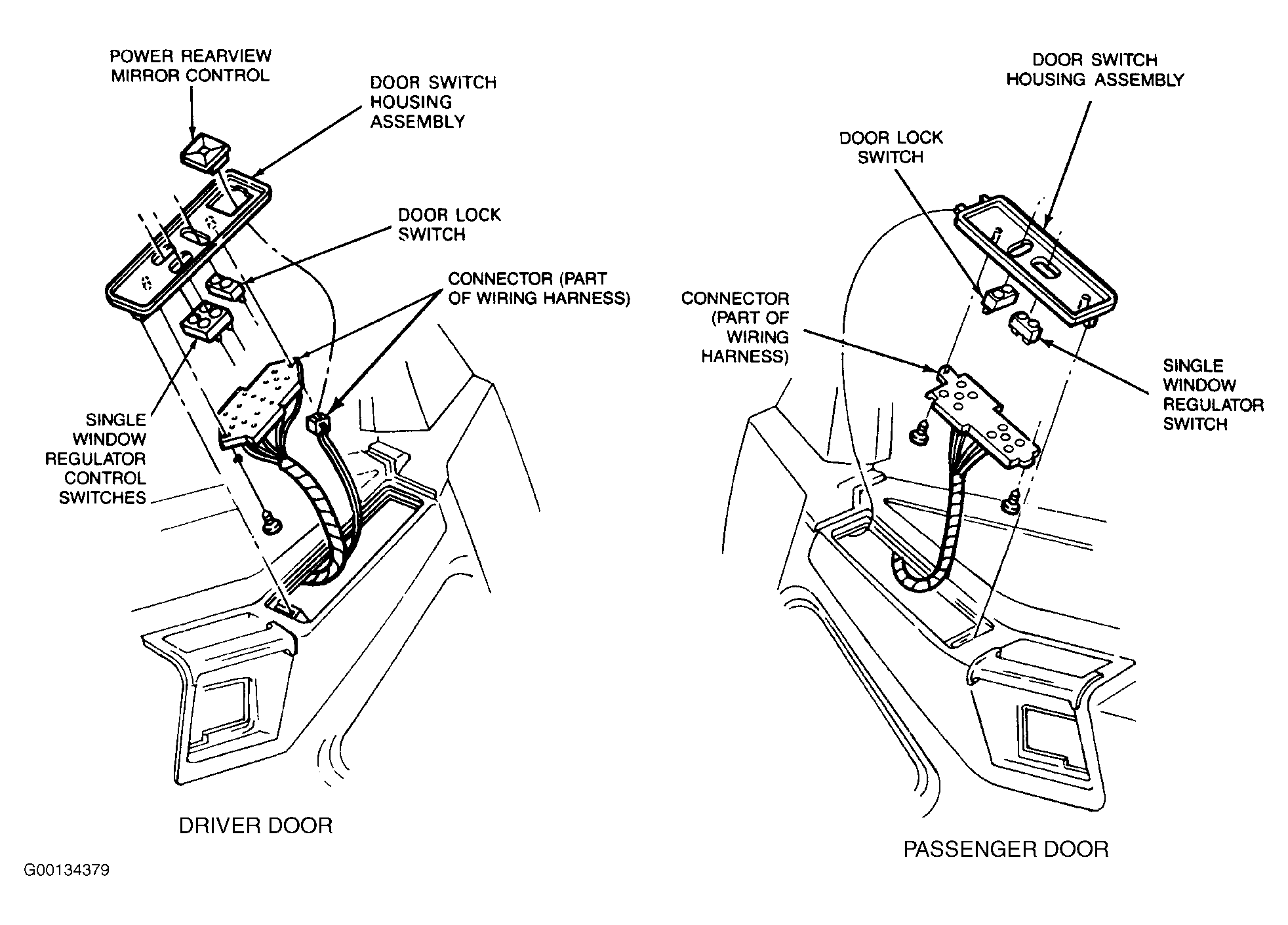

Fig 1: Removing & Installing Power Window Switch
G00134379Courtesy of MAZDA MOTORS CORP.
