Theft-Deterrent System
Theft-Deterrent System

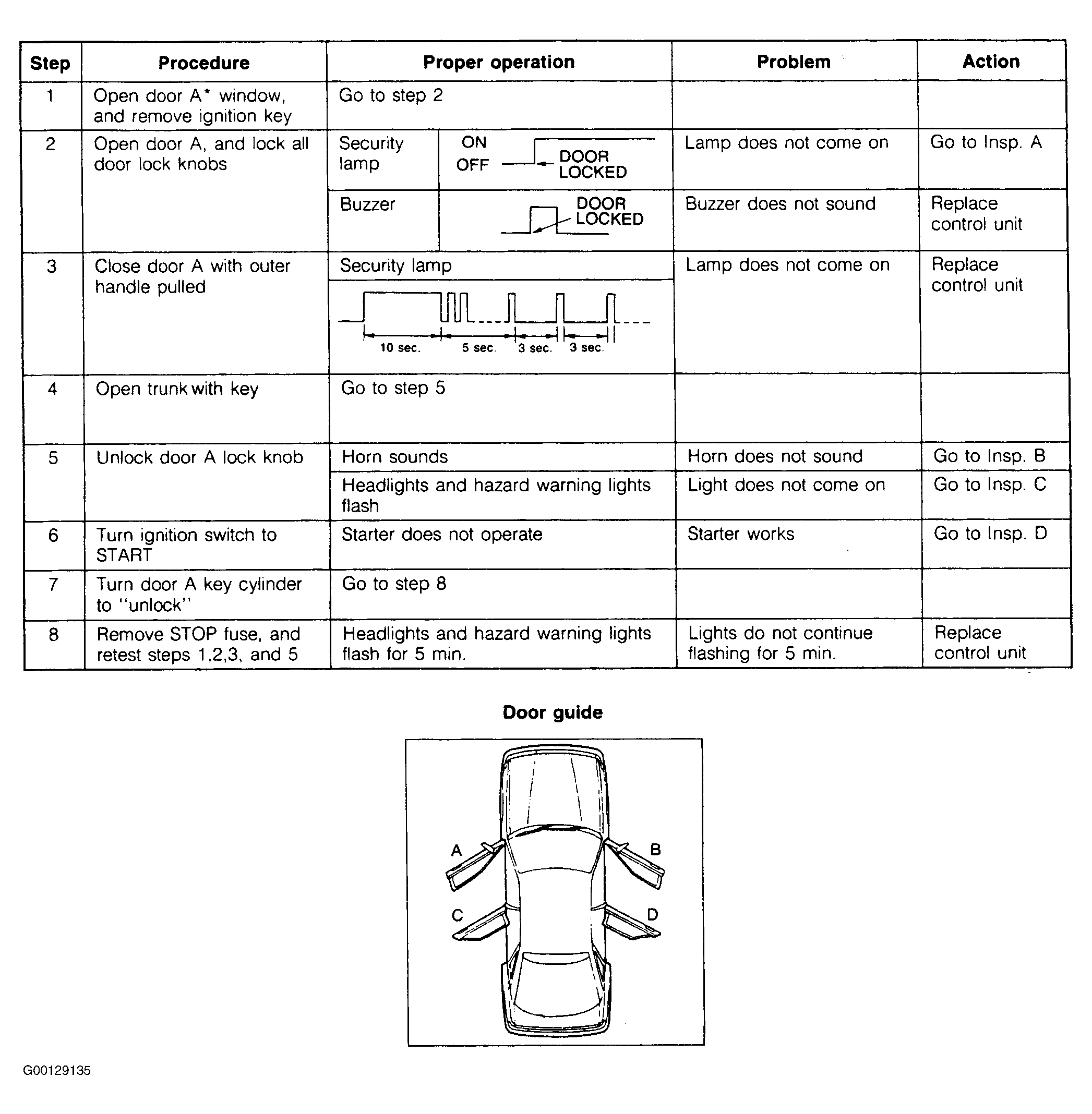

Fig 1: Theft Deterrent System Inspection
Courtesy of MAZDA MOTORS CORP.

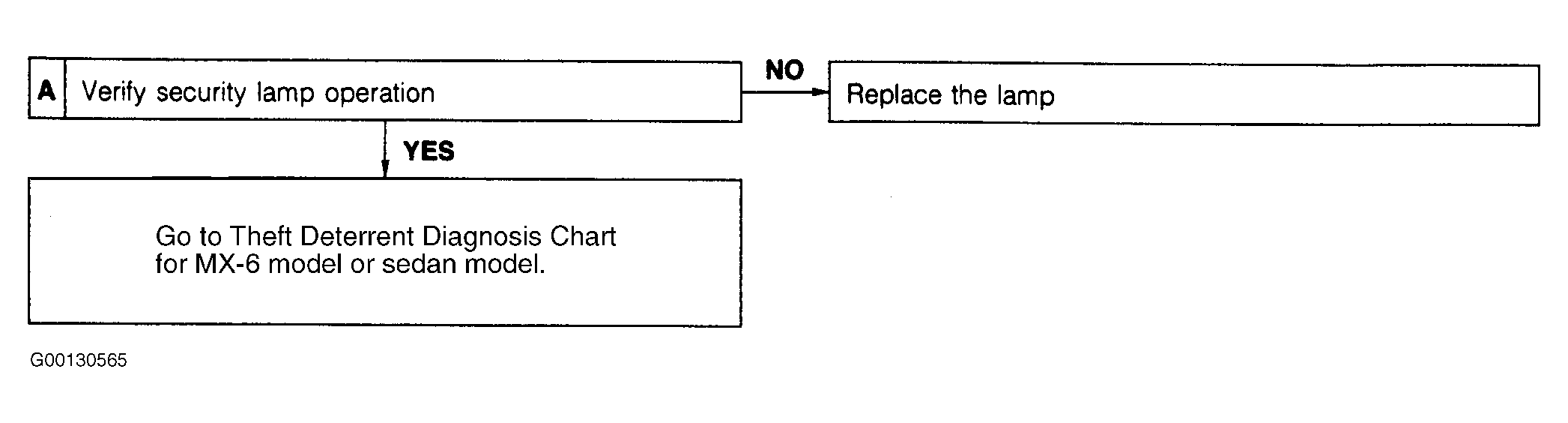

Fig 2: Theft Deterrent Inspection Flowchart A
Courtesy of MAZDA MOTORS CORP.

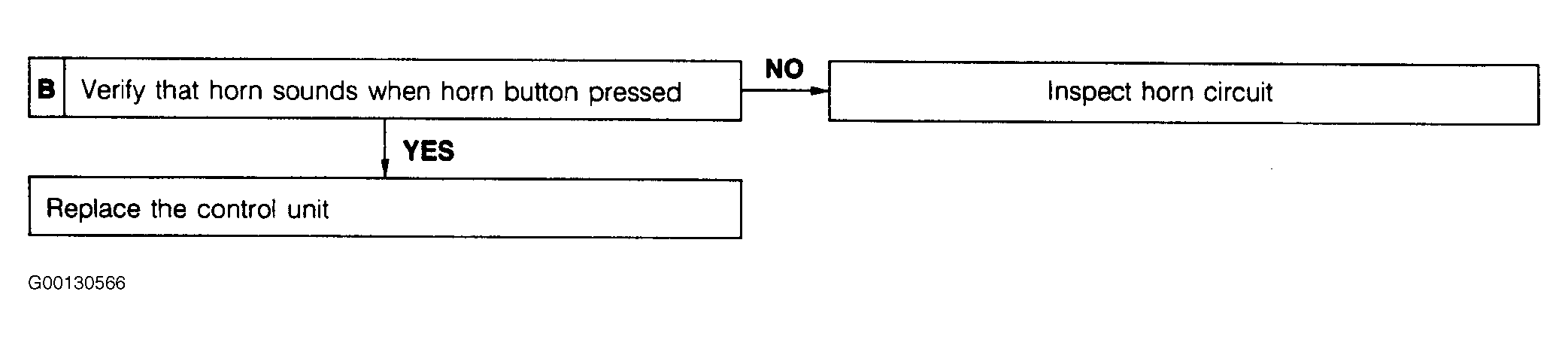

Fig 3: Theft Deterrent Inspection Flowchart B
Courtesy of MAZDA MOTORS CORP.

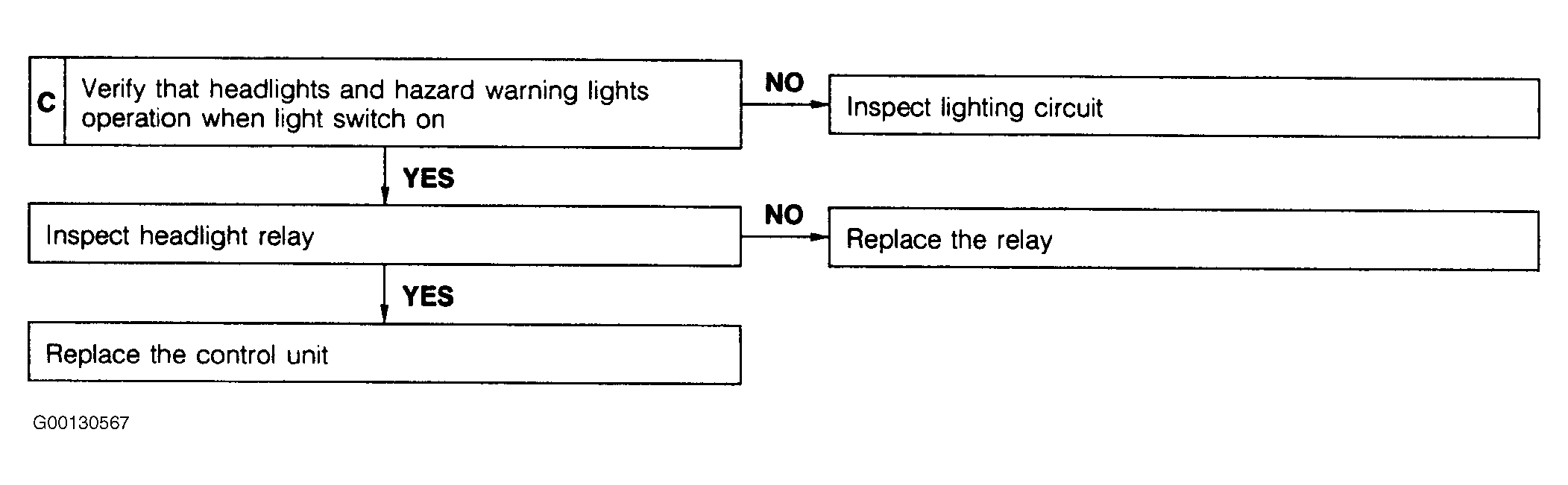

Fig 4: Theft Deterrent Inspection Flowchart C
Courtesy of MAZDA MOTORS CORP.

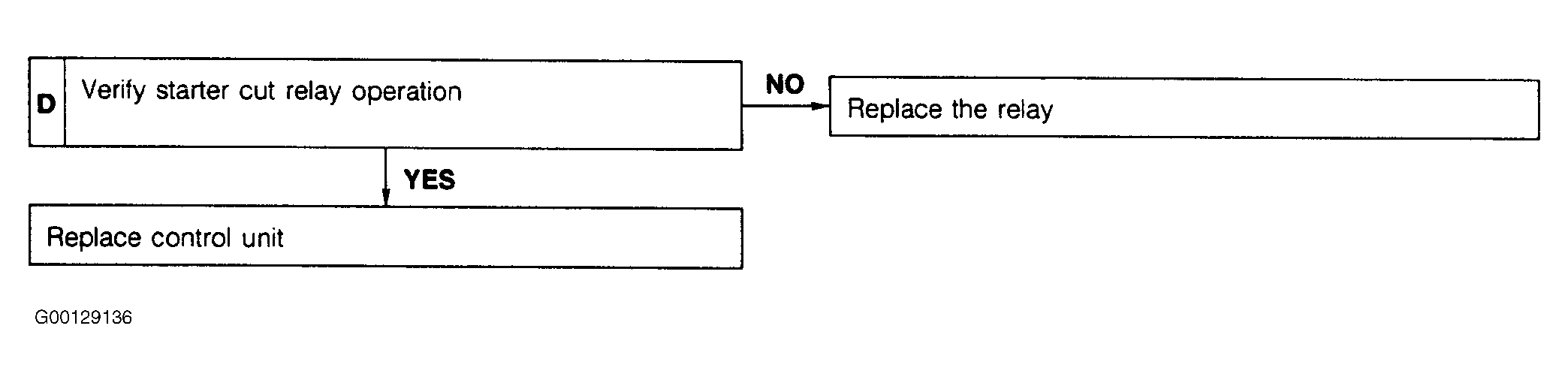

Fig 5: Theft Deterrent Inspection Flowchart D
Courtesy of MAZDA MOTORS CORP.

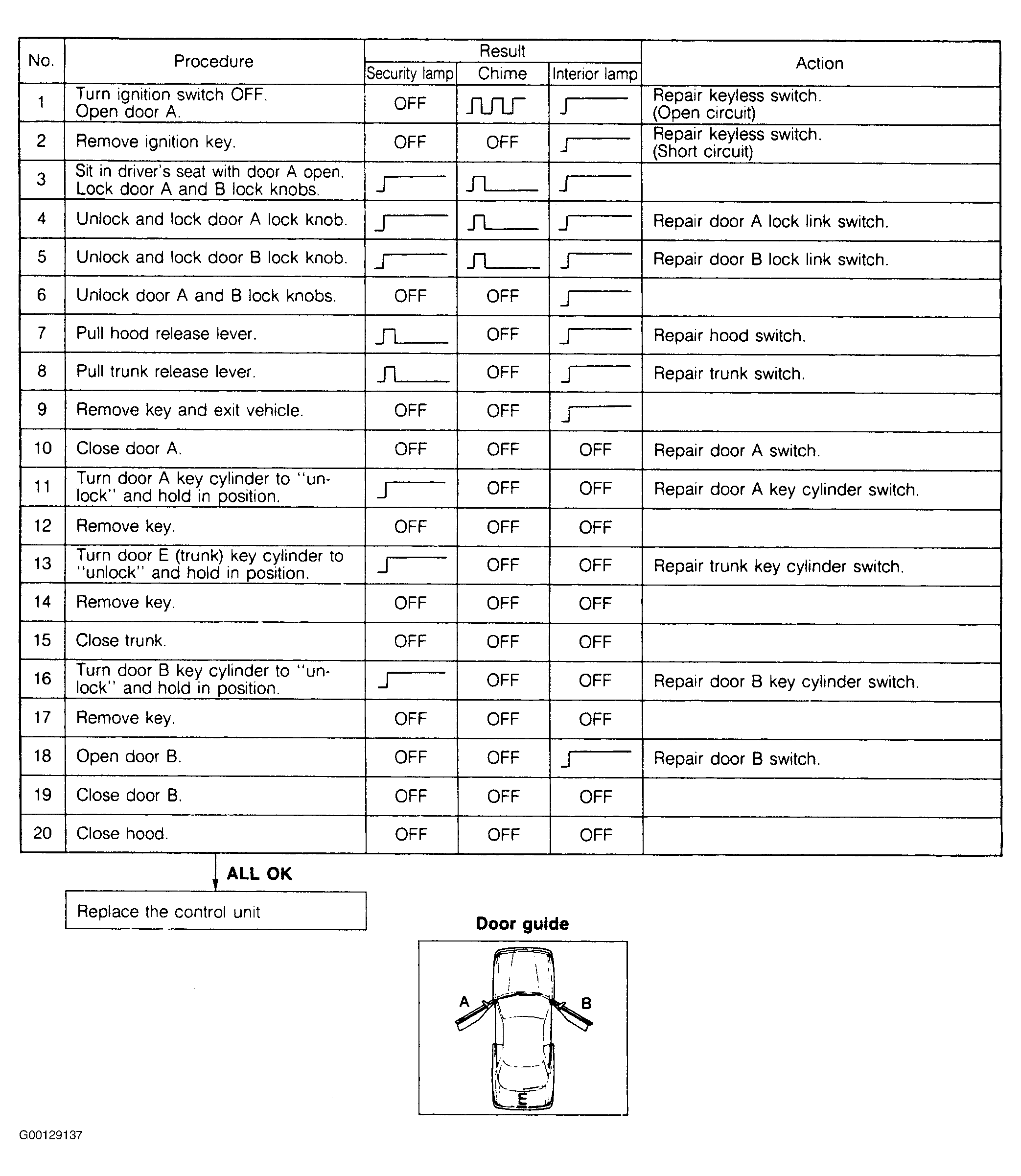

Fig 6: Theft Deterrent Diagnosis Chart (MX-6)
Courtesy of MAZDA MOTORS CORP.

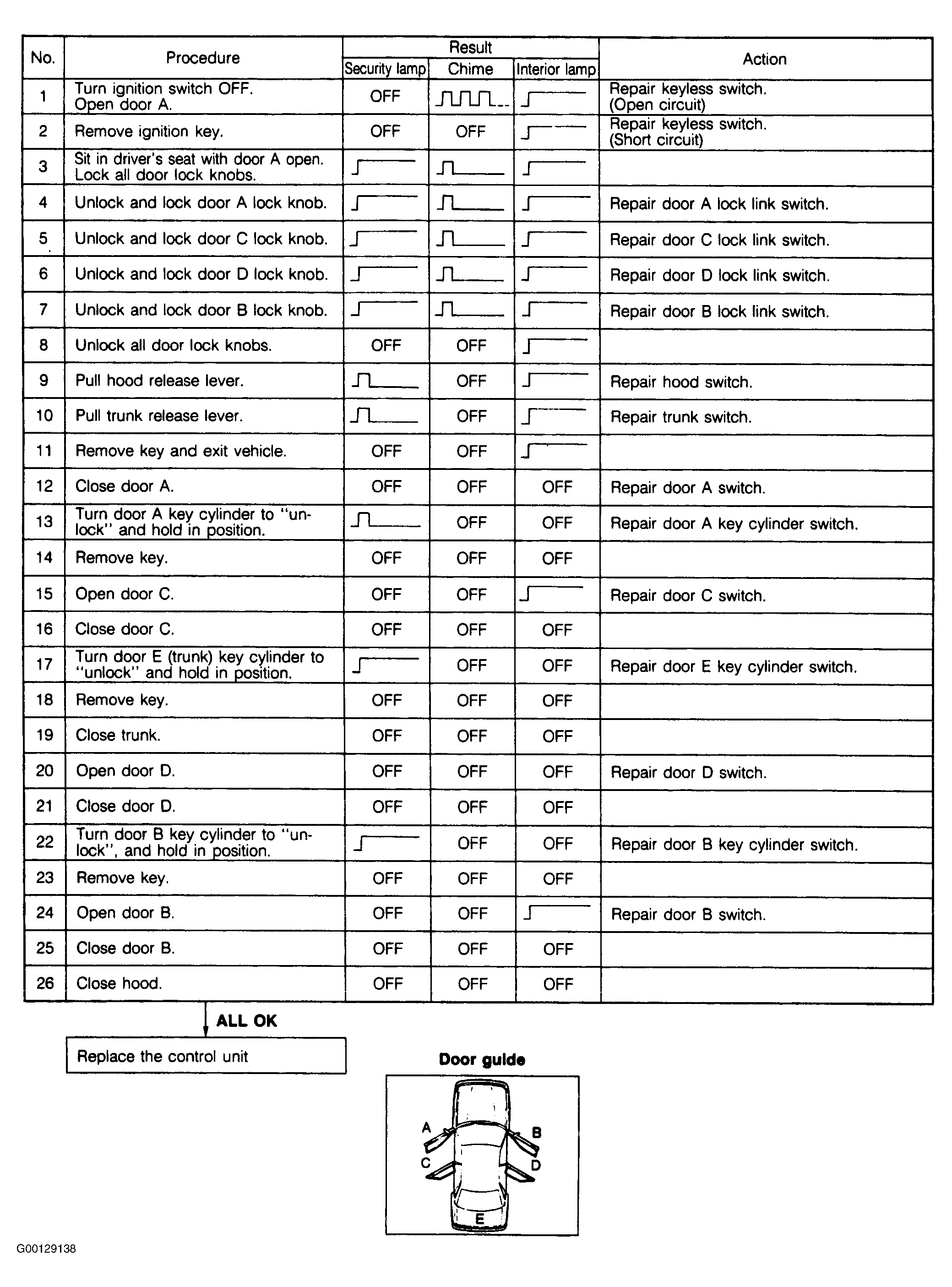

Fig 7: Theft Deterrent Diagnosis Chart (626 Sedan)
Courtesy of MAZDA MOTORS CORP.
