Code 9: Coolant THERMOSENSOR

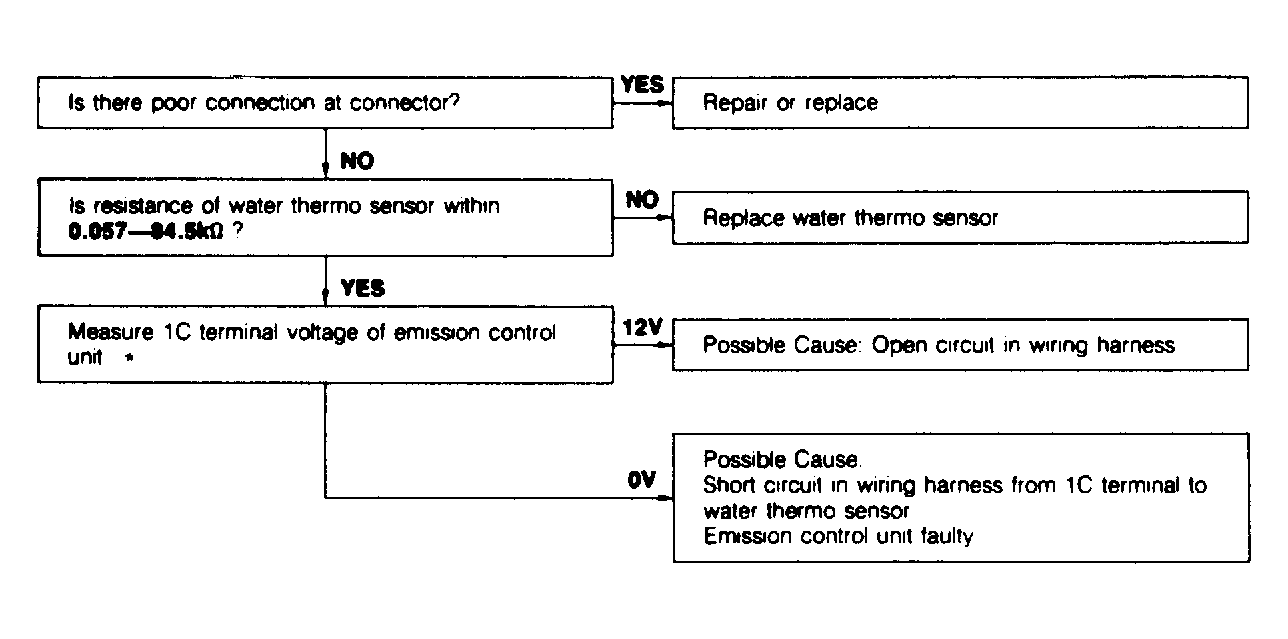

Fig 1: Trouble Code No. 9 Coolant Thermosensor

G117636

Courtesy of MAZDA MOTORS CORP.
