Code 16: EGR Position Sensor

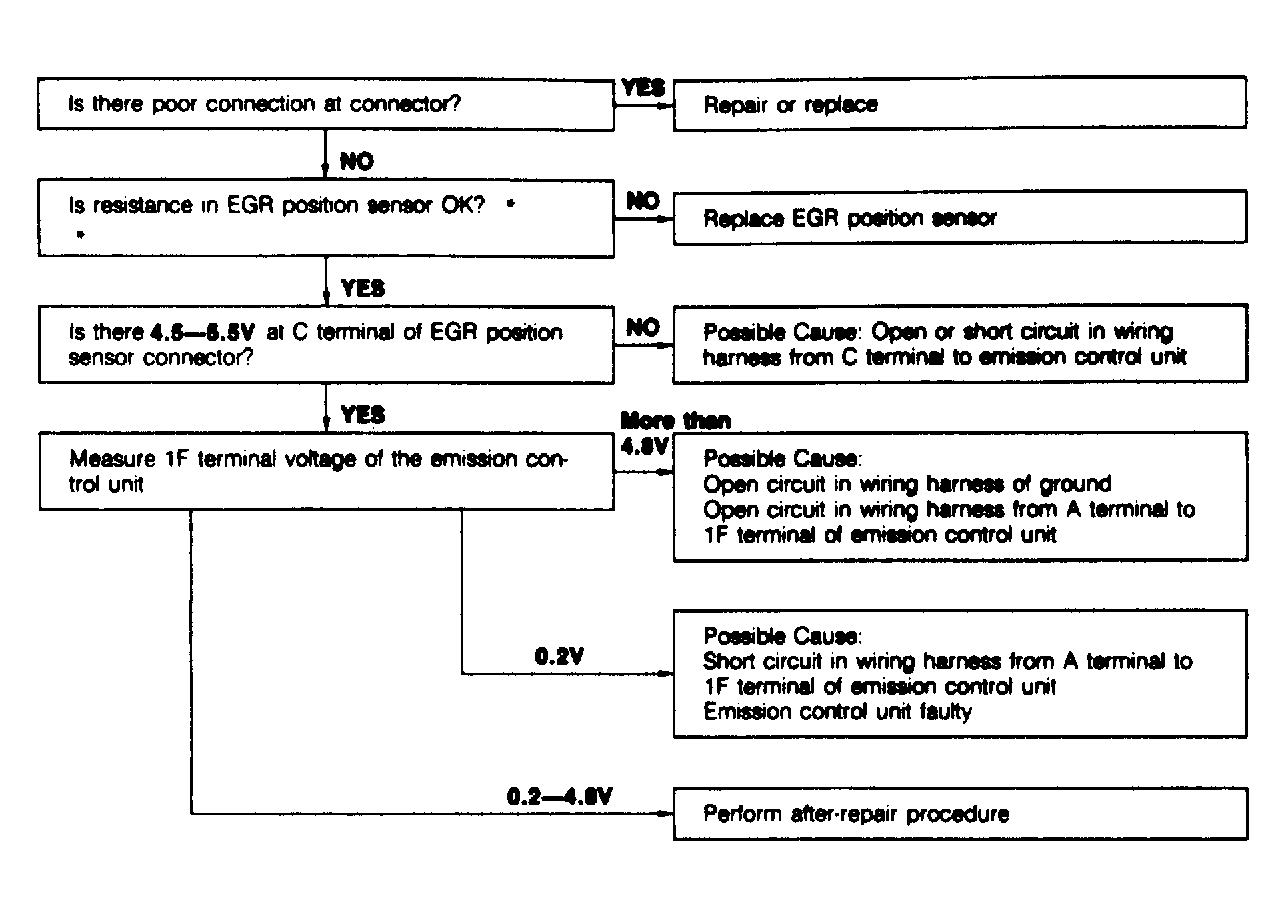

Fig 1: Trouble Code No. 16 EGR Position Sensor

G117640

Courtesy of MAZDA MOTORS CORP.
