Code 14: Atmospheric Pressure Sensor

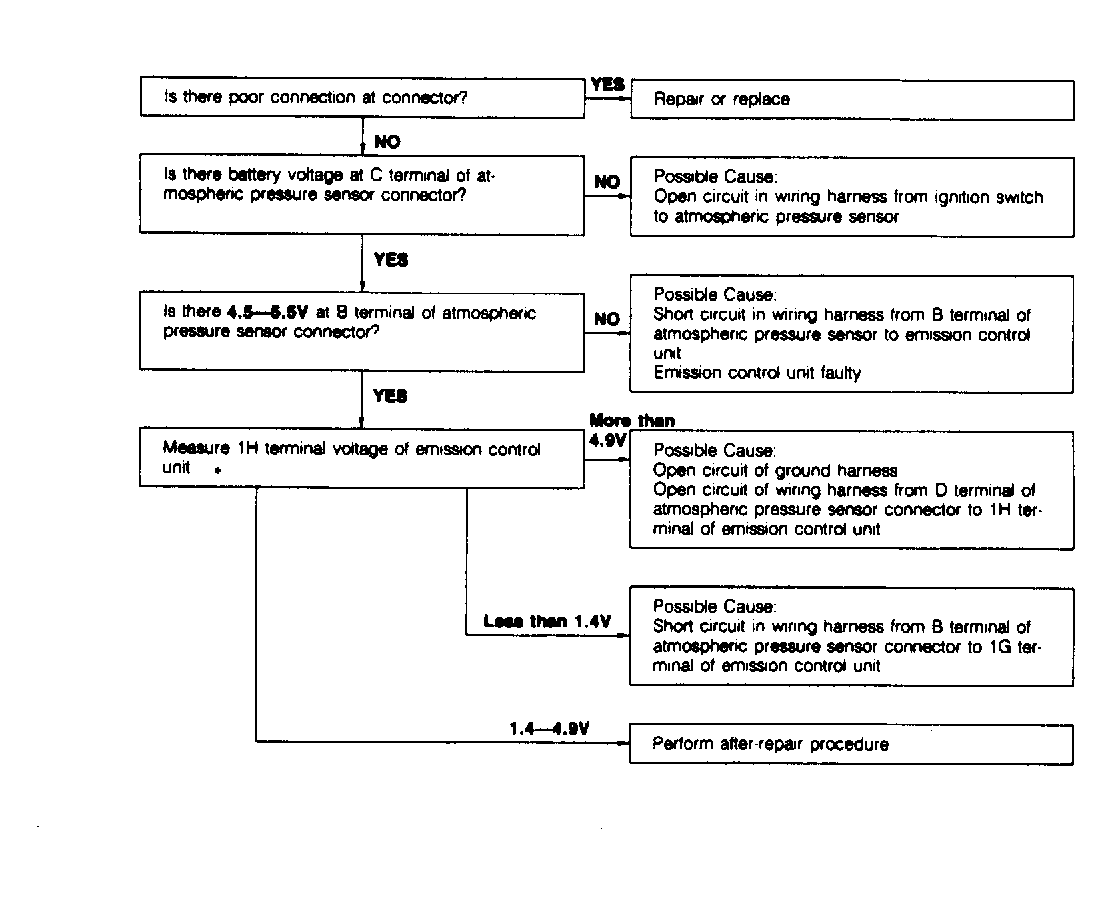

Fig 1: Trouble Code No. 14 Atmospheric Pressure Sensor

G117639

Courtesy of MAZDA MOTORS CORP.
