Component Locations

For component locations, refer to illustrations. See Fig 1 and Fig 2 .

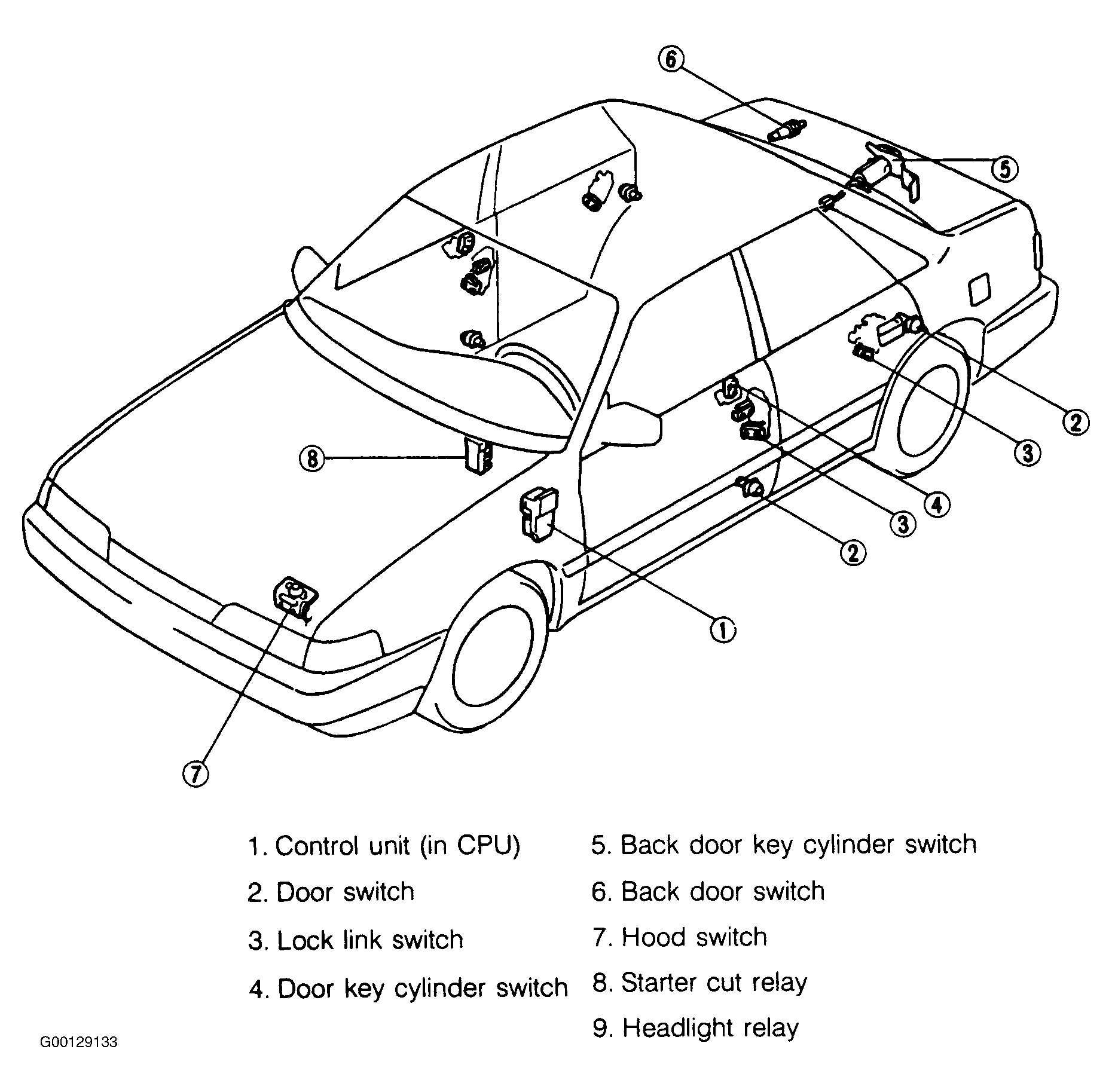

Fig 1: Theft-Deterrent Component Locations (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

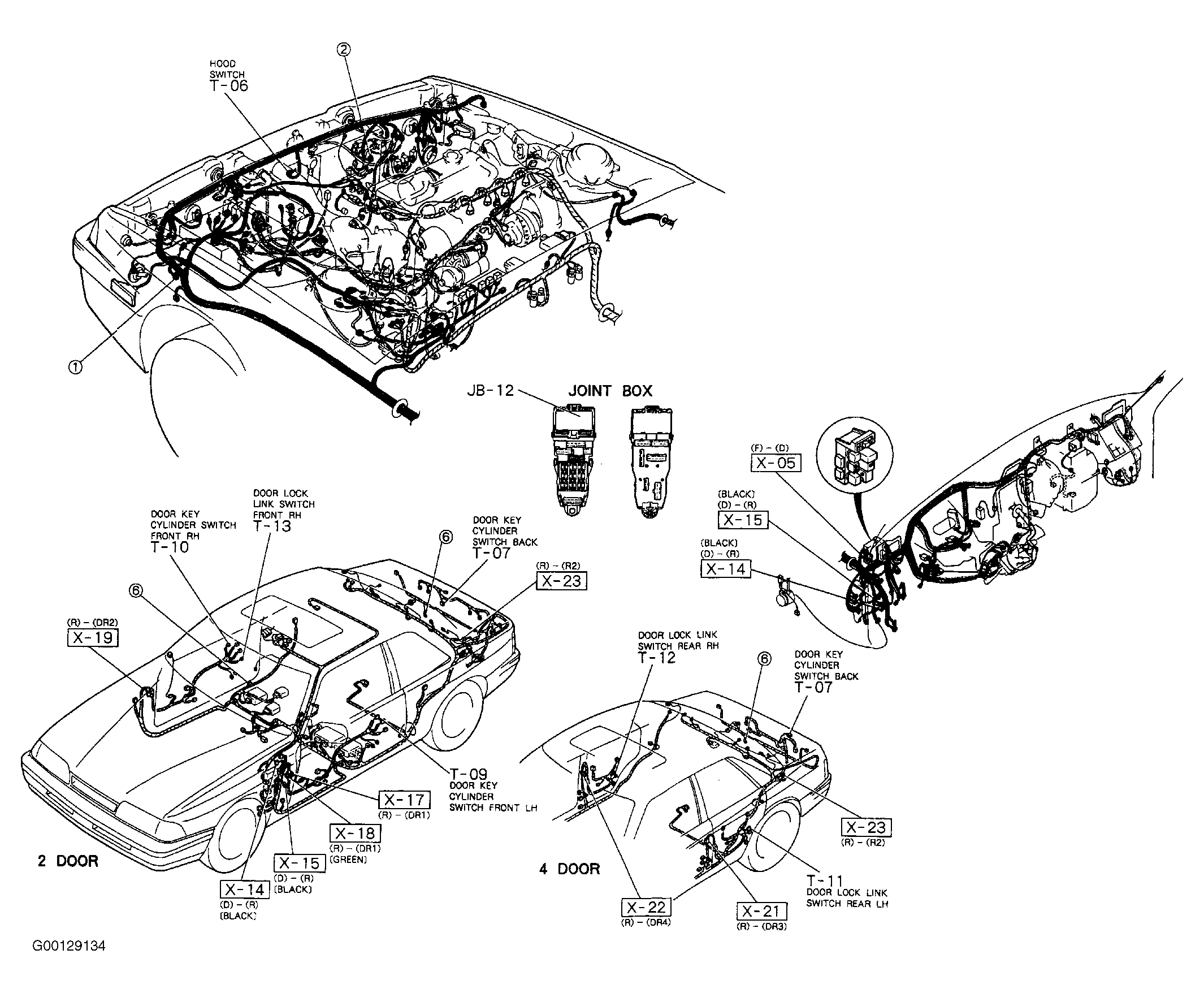

Fig 2: Theft-Deterrent Component Locations (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
