Power Door Lock System Does Not Operate (All Doors)

For connector identification, see Figure and Figure . For component locations, see Figure and Figure . For testing procedure, see Fig 1 .

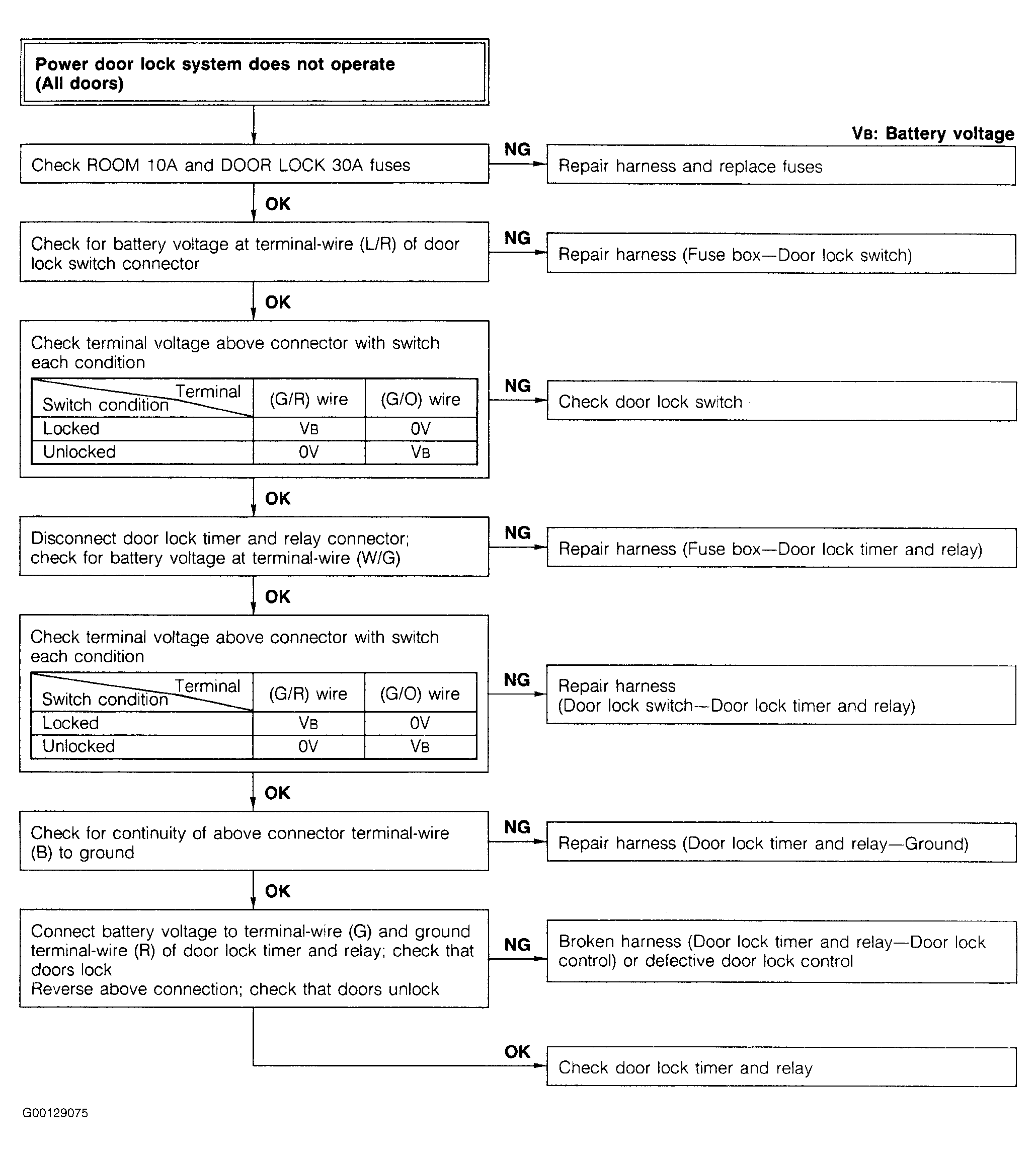

Fig 1: Power Door Lock System Does Not Operate Testing Procedure

Courtesy of MAZDA MOTORS CORP.
