Door Lock Timer & Relay

NOTE: Set the tester to the x 1,000ohm range.

For testing procedure, see Fig 1 .

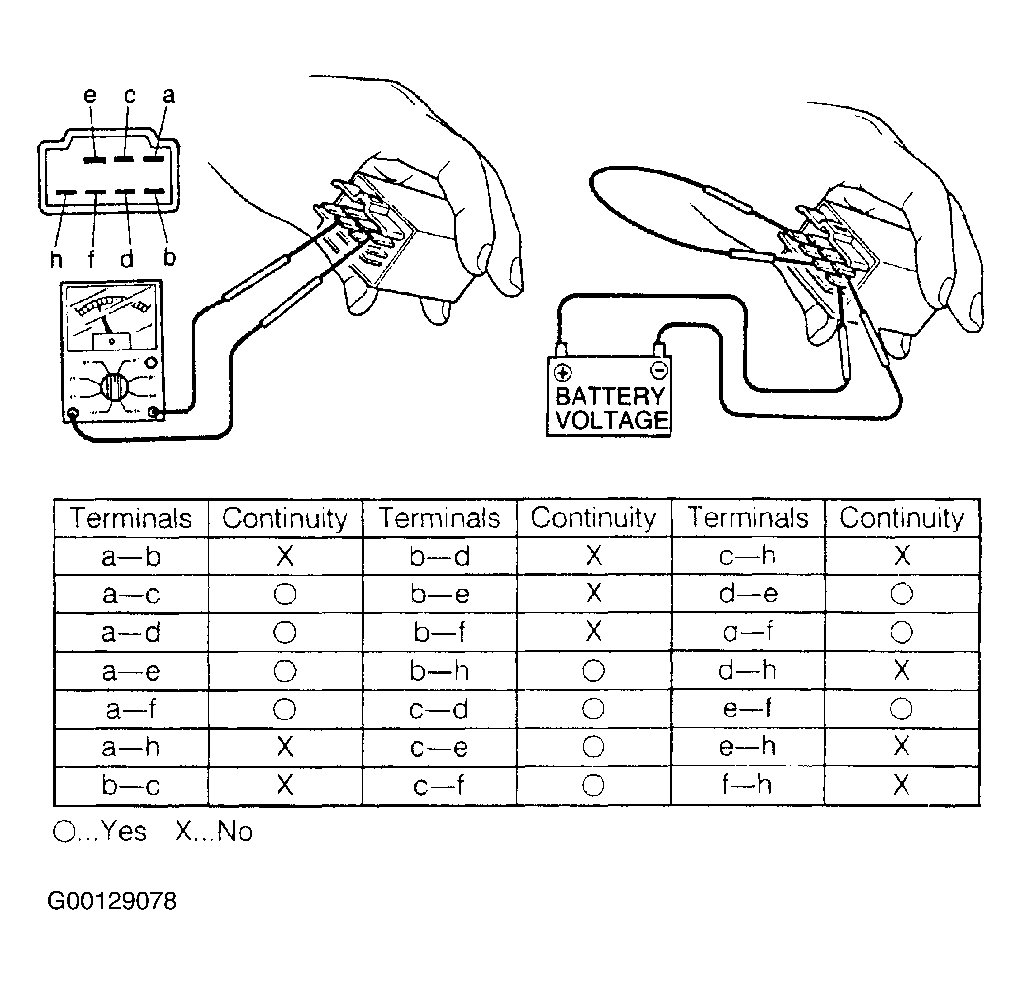

Fig 1: Door Lock Timer & RelayTesting Procedure

G00129078

Courtesy of MAZDA MOTORS CORP.
