Code 26: Purge Control Solenoid Valve

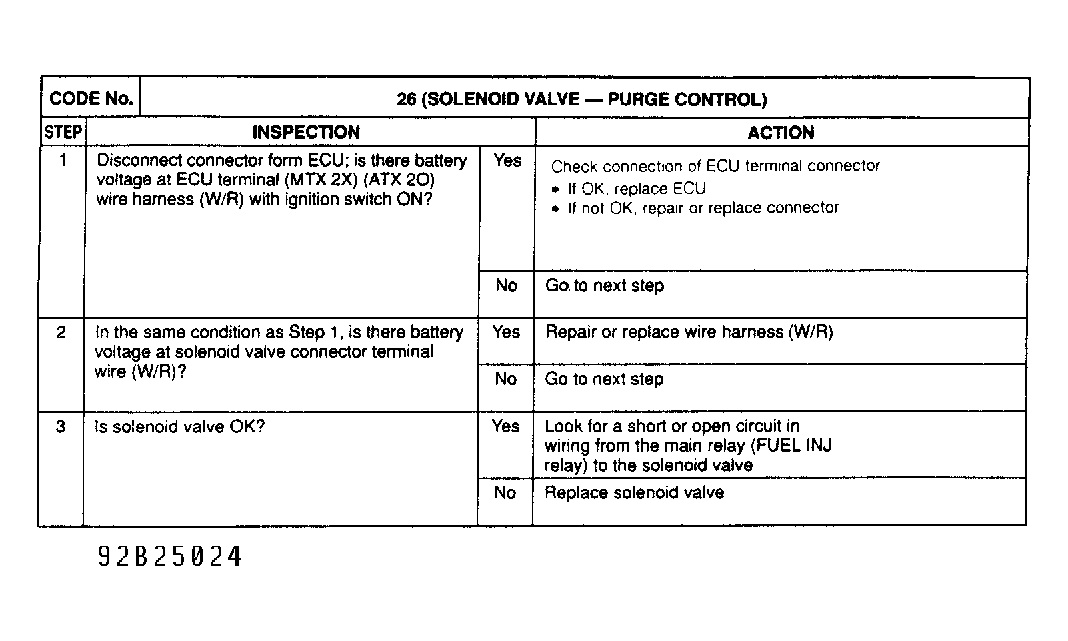

Fig 1: Trouble Code No. 26 Purge Control Solenoid Valve

Courtesy of MAZDA MOTORS CORP.

Fig 2: Circuit Diagram, Purge Control Solenoid Valve

Courtesy of MAZDA MOTORS CORP.
