Code 25: Pressure Regulator Solenoid Valve

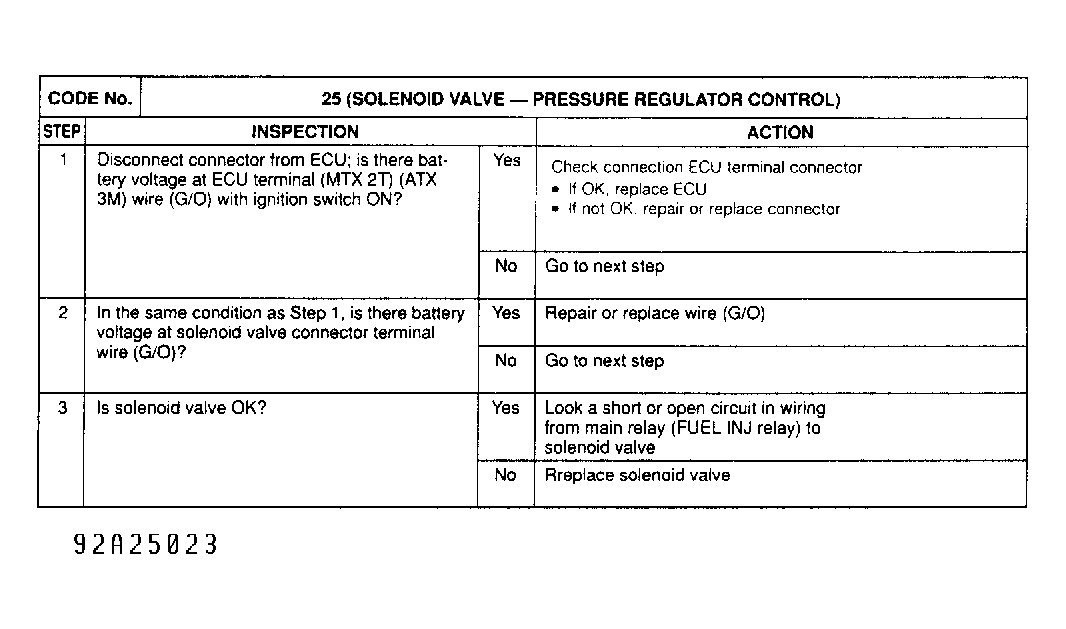

Fig 1: Trouble Code No. 25 Pressure Regulator Solenoid Valve

Courtesy of MAZDA MOTORS CORP.

Fig 2: Circuit Diagram, Pressure Regulator Solenoid Valve

Courtesy of MAZDA MOTORS CORP.
