Adjusting Accelerator Cable

Check accelerator cable deflection (free play) at carburetor. If deflection is not .039-.118" (1.0-3.0 mm), turn cable adjusting nuts as needed. Fully depress accelerator pedal. If primary throttle valve does not fully open, turn accelerator stop bolt (above accelerator pedal) as needed to obtain full valve opening.

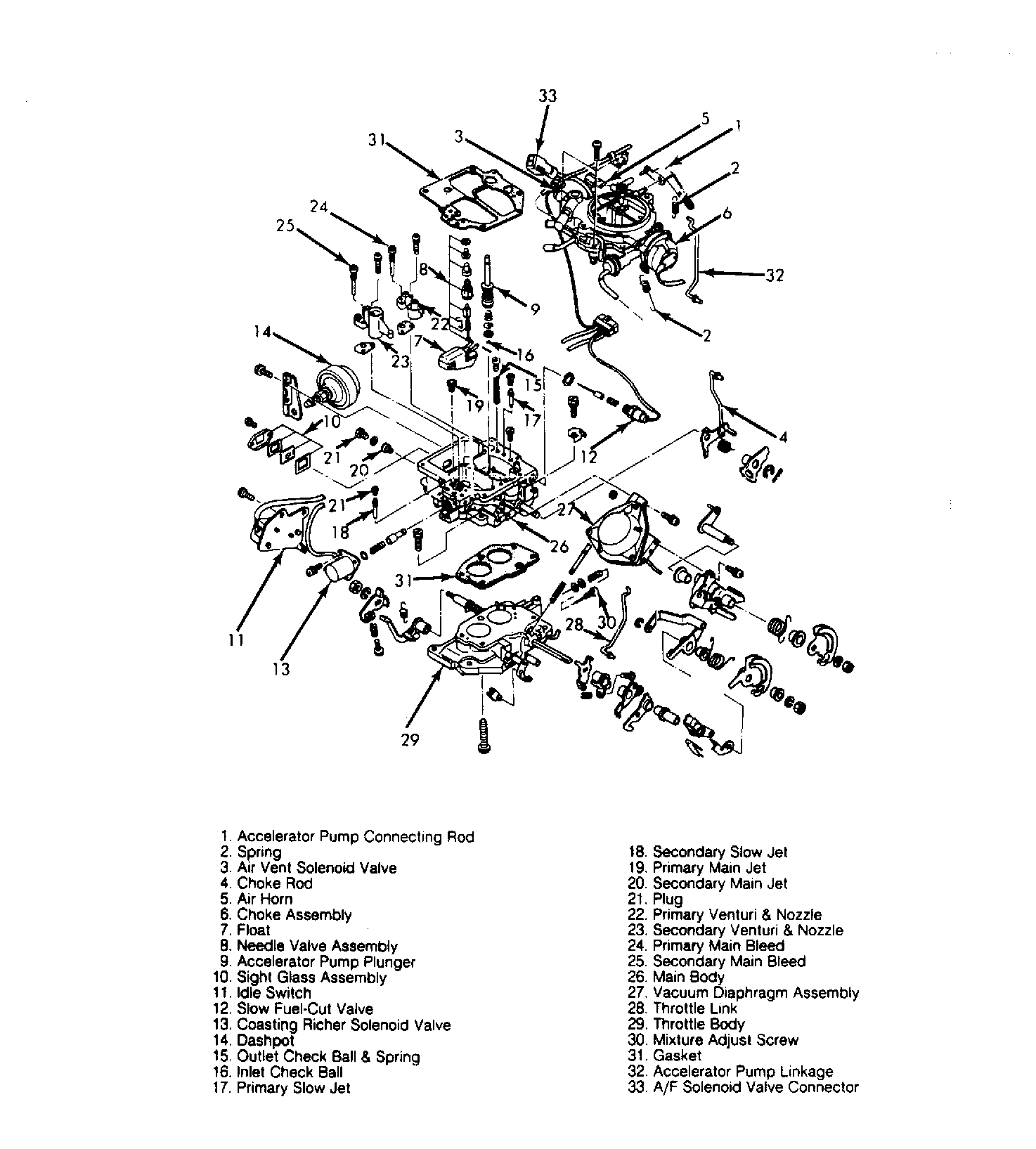

Fig 1: Exploded View Of 2-Barrel Carburetor (B2200)
G62263Courtesy of MAZDA MOTORS CORP.
