RX-7 Base, 2D Convertible, Standard
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Anti-Lock Brake System
>>
Testing Sequence
>>
6C. Solenoid Test
6C. Solenoid Test
Fig 1: 6C. Solenoid Test (1 of 4)
Courtesy of MAZDA MOTORS CORP.

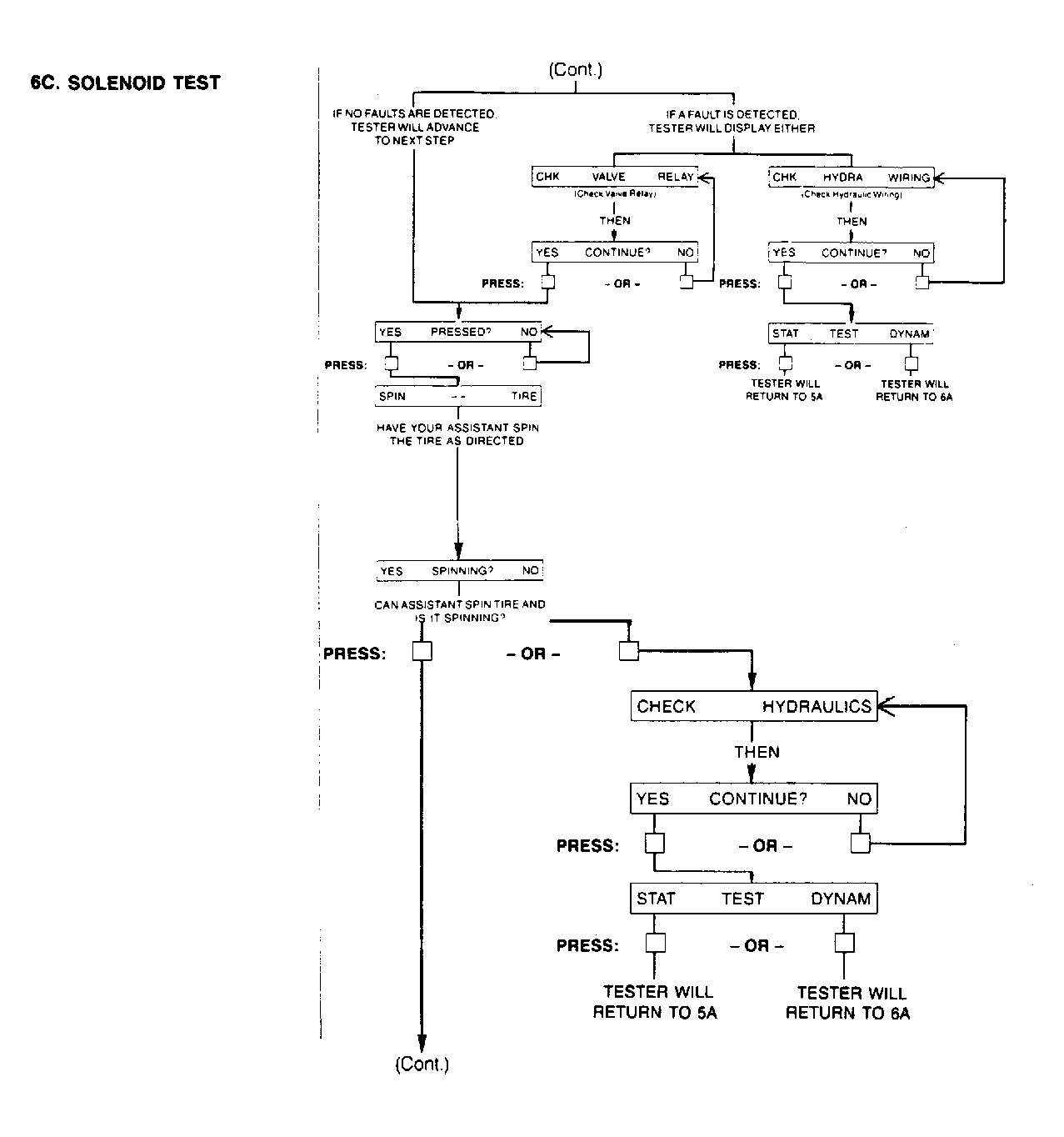

Fig 2: 6C. Solenoid Test (2 of 4)
Courtesy of MAZDA MOTORS CORP.

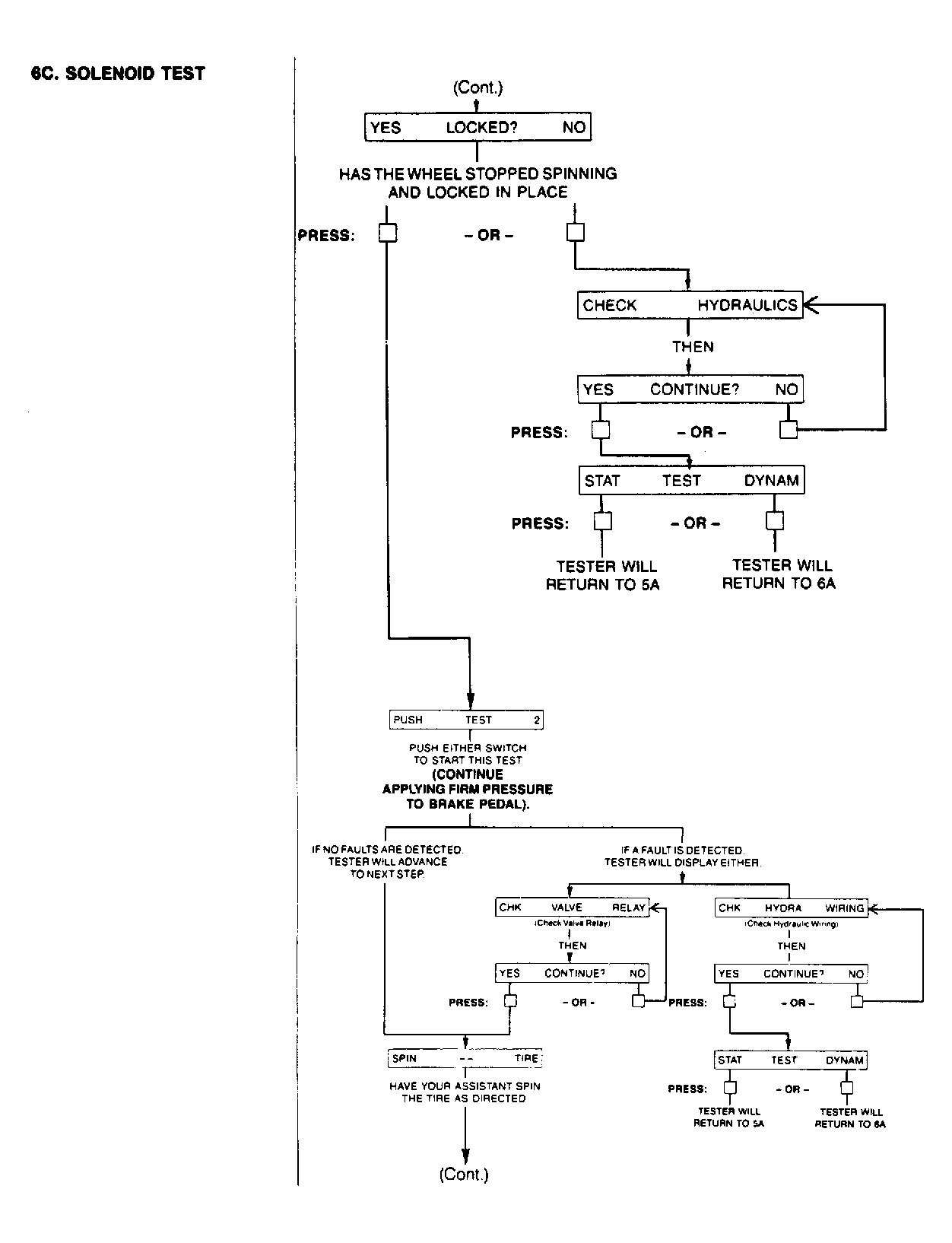

Fig 3: 6C. Solenoid Test (3 of 4)
Courtesy of MAZDA MOTORS CORP.

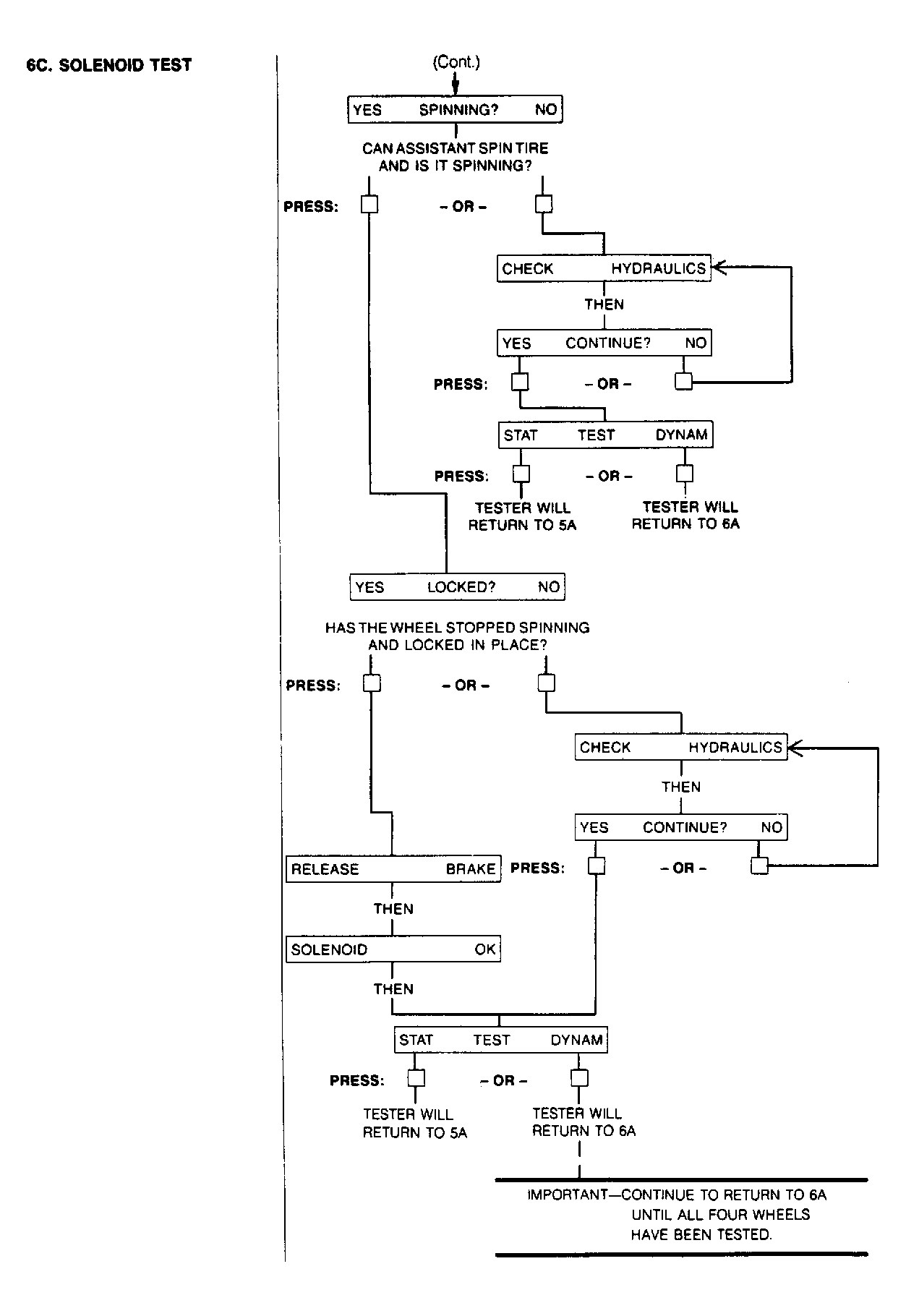

Fig 4: 6C. Solenoid Test (4 of 4)
Courtesy of MAZDA MOTORS CORP.
