Connector Identification

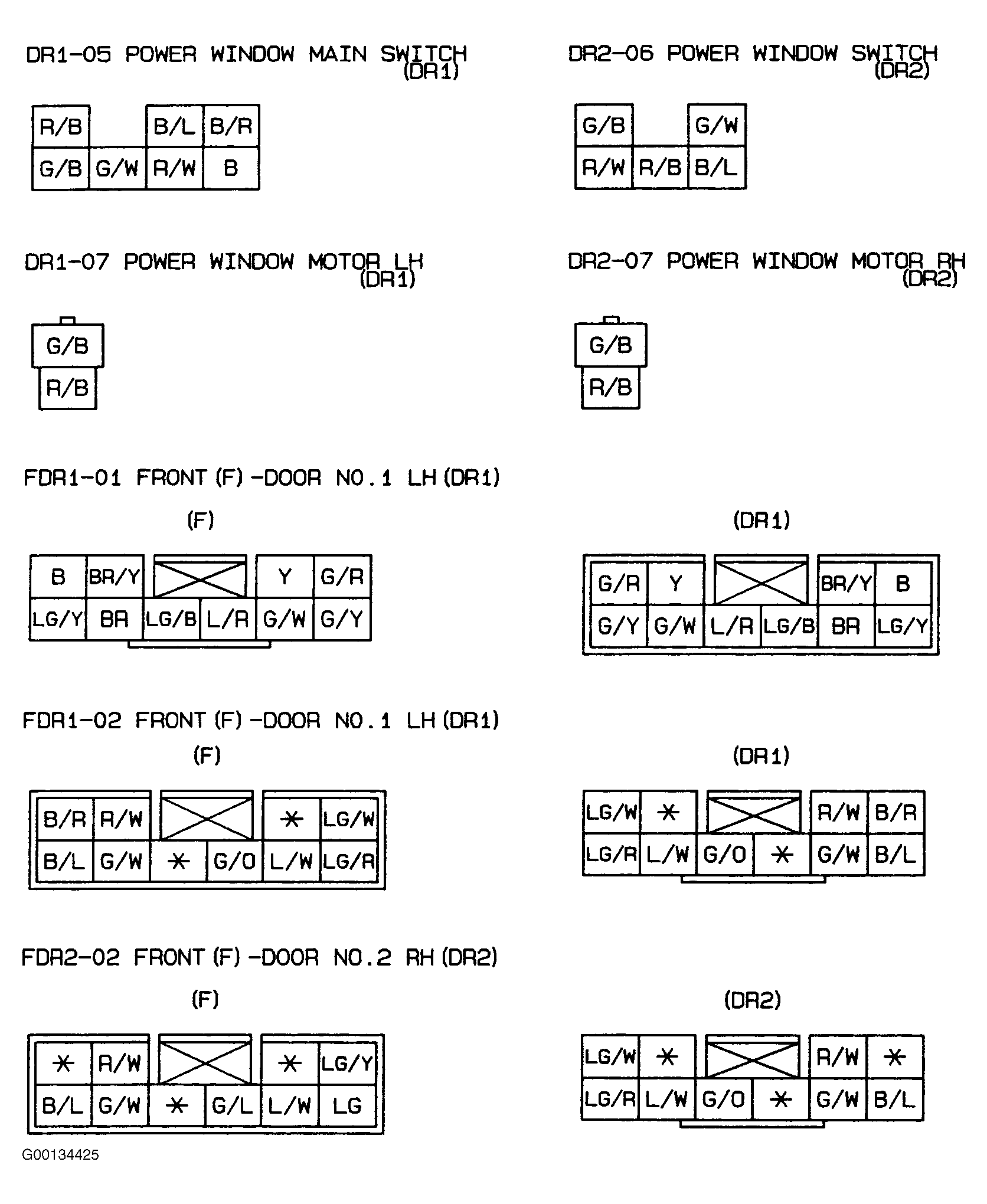

Fig 1: Identifying Power Window System Connectors & Terminals

G00134425

Courtesy of MAZDA
