Wiring Diagrams

See Fig 1 , Fig 2 or Fig 3 . For additional diagrams, see appropriate chassis wiring diagrams in WIRING DIAGRAMS Section.

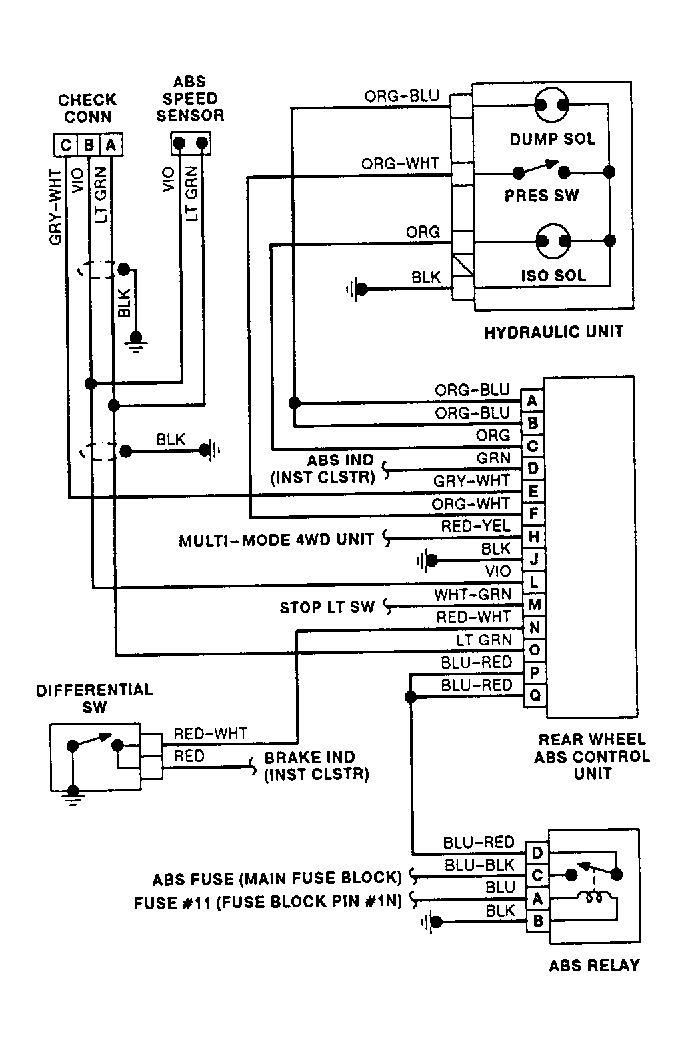

Fig 1: Anti-Lock Brake System Wiring Diagram (B2200 & B2600i)

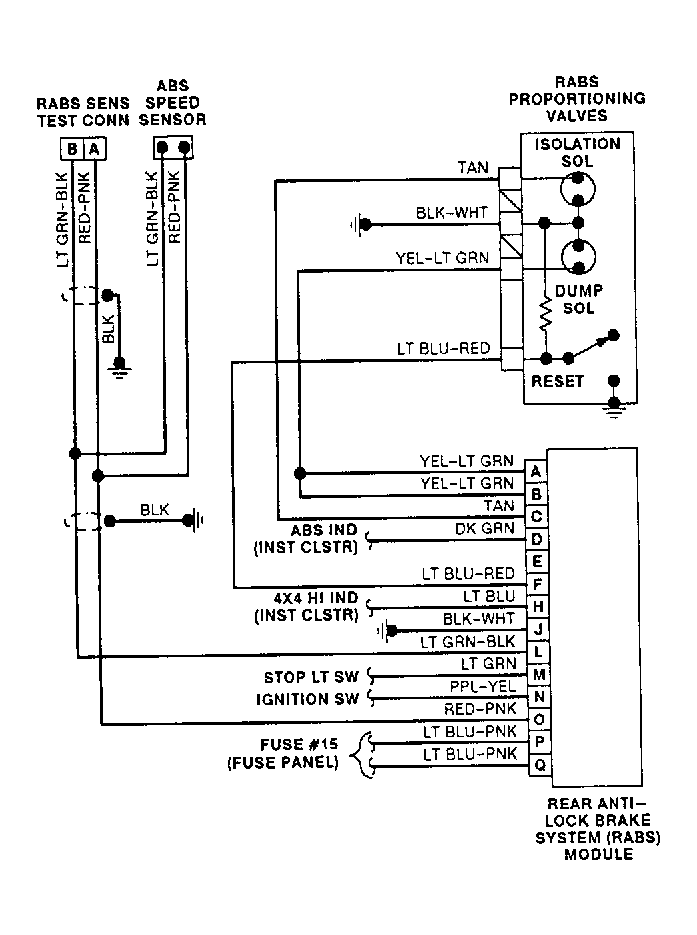

Fig 2: Anti-Lock Brake System Wiring Diagram (MPV 1990-91)

Fig 3: Anti-Lock Brake System Wiring Diagram (Navajo)
