Code 25: SOHC Pressure Regulator Control Solenoid Valve

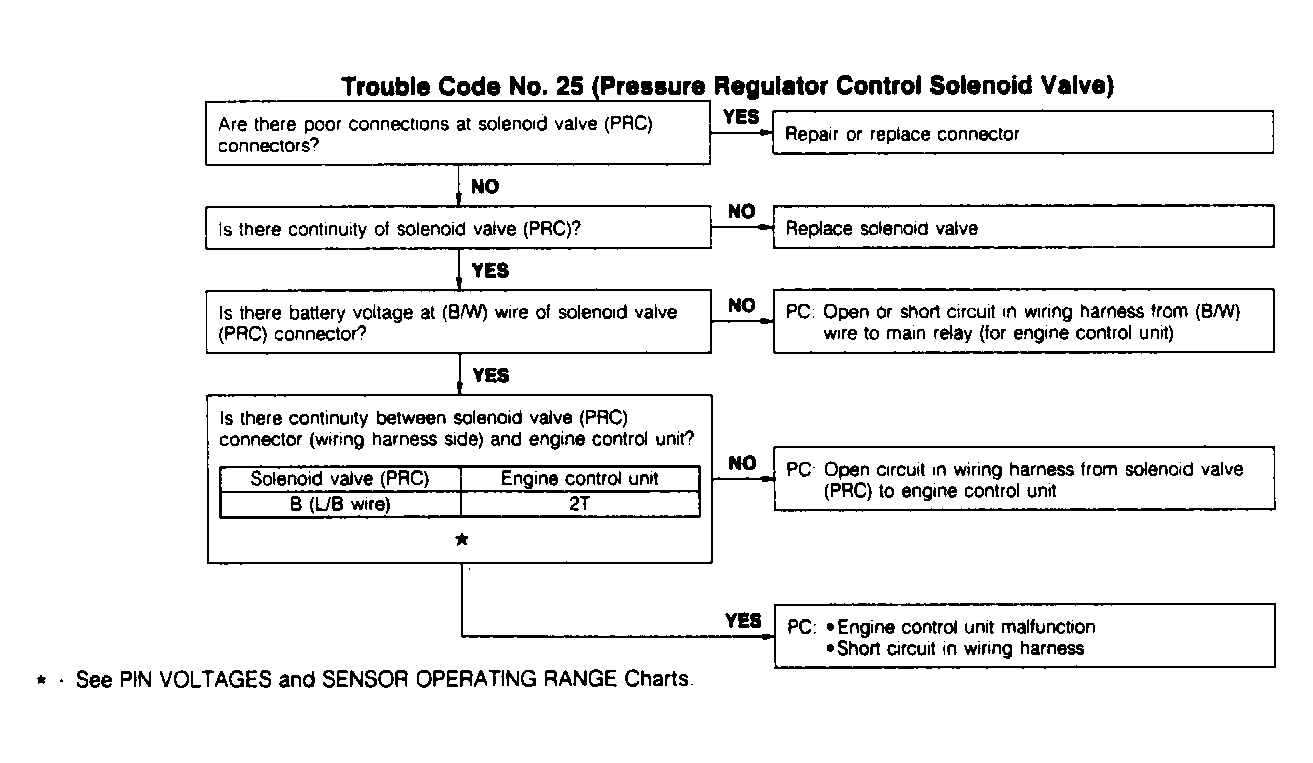

Fig 1: Code 25: Pressure Regulator Control Solenoid Valve Flow Chart

G90J21534

Courtesy of MAZDA MOTORS CORP.
