Code 34: DOHC Idle Speed Control (ISC)

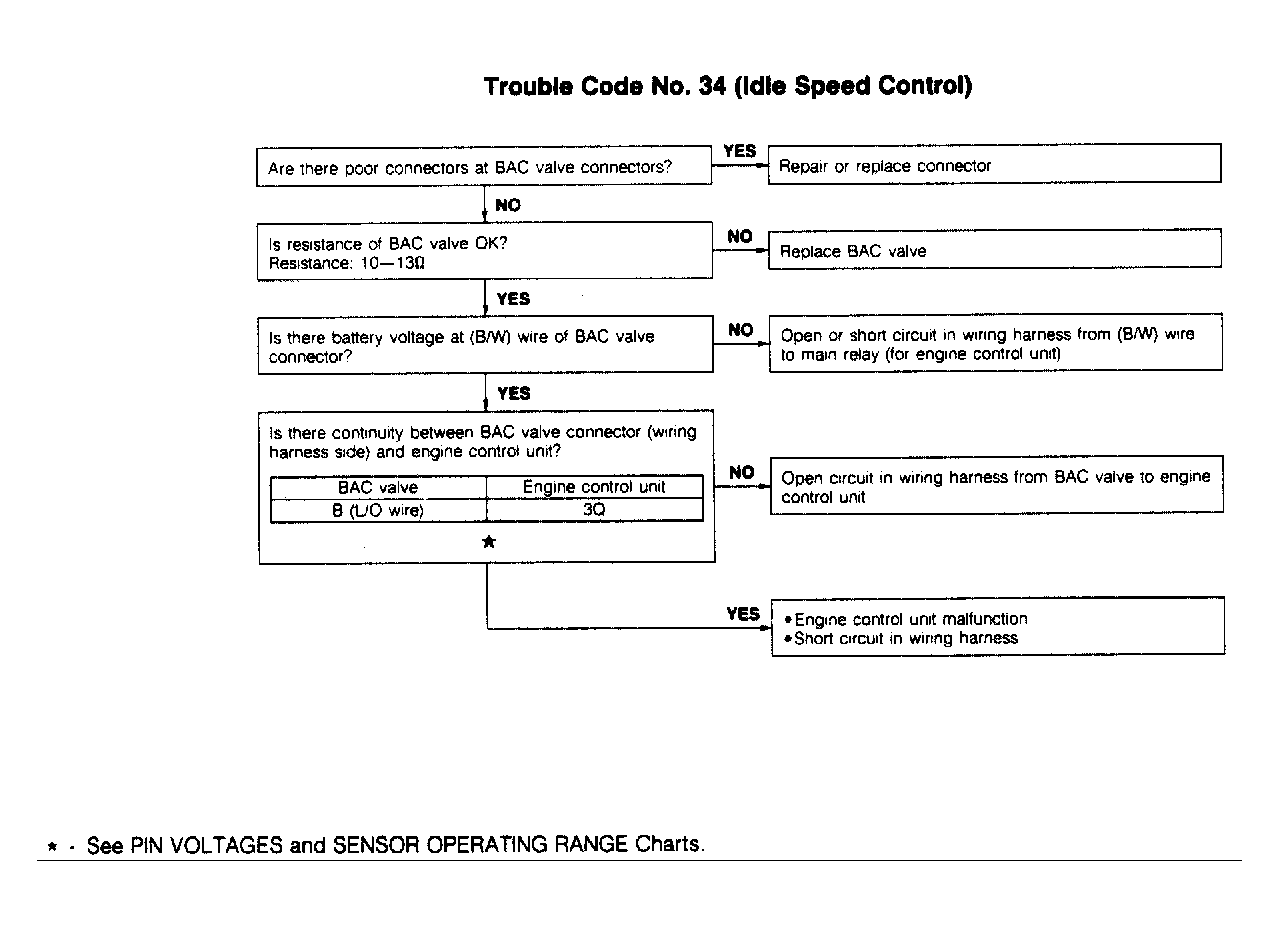

Fig 1: Code 34: Idle Speed Control (ISC) Flow Chart

G90E21570

Courtesy of MAZDA MOTORS CORP.
