Code 25: DOHC Pressure Regulator Control Solenoid Valve

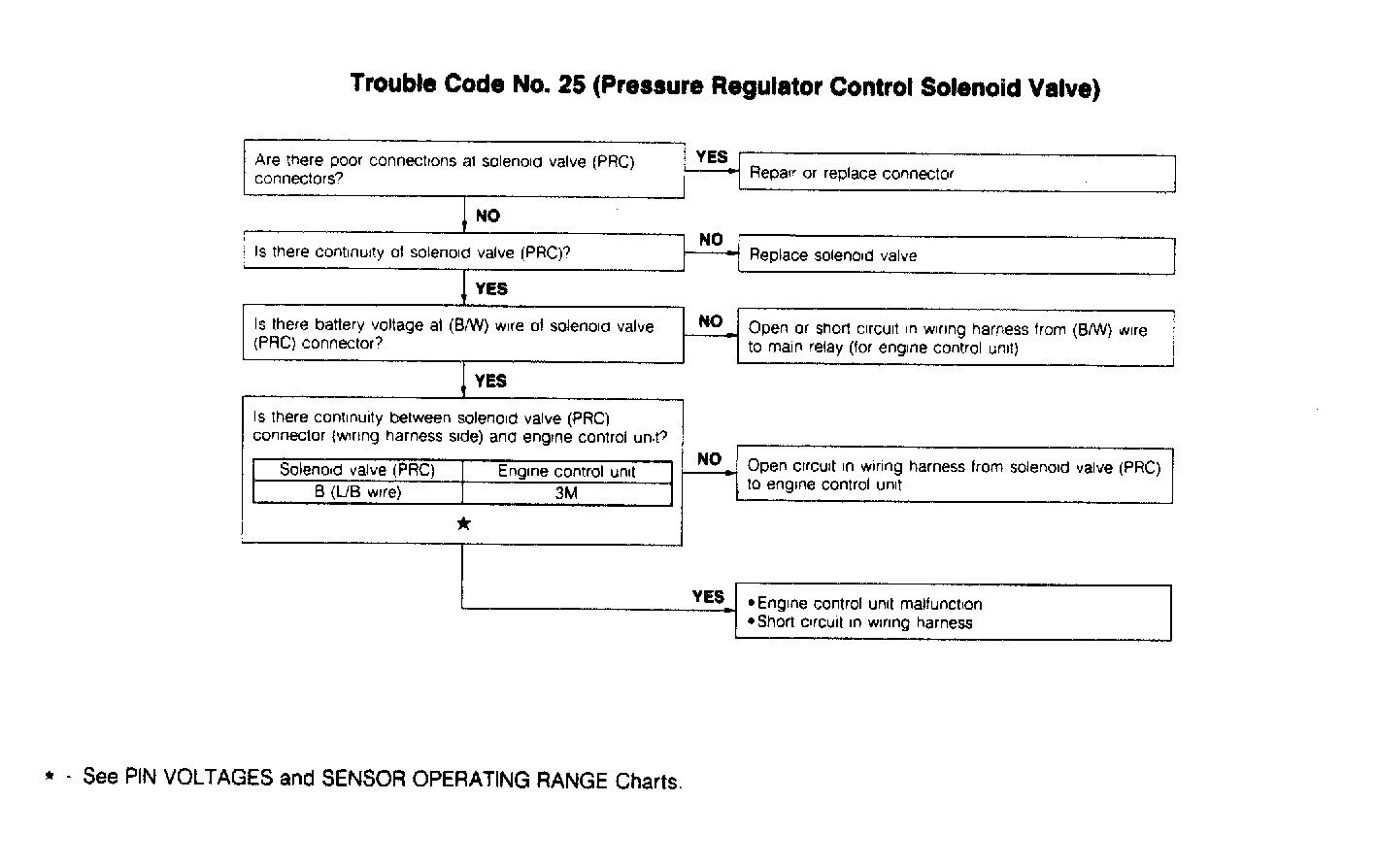

Fig 1: Code 25: Pressure Regulator Control Solenoid Valve Flow Chart

G90I21566

Courtesy of MAZDA MOTORS CORP.
